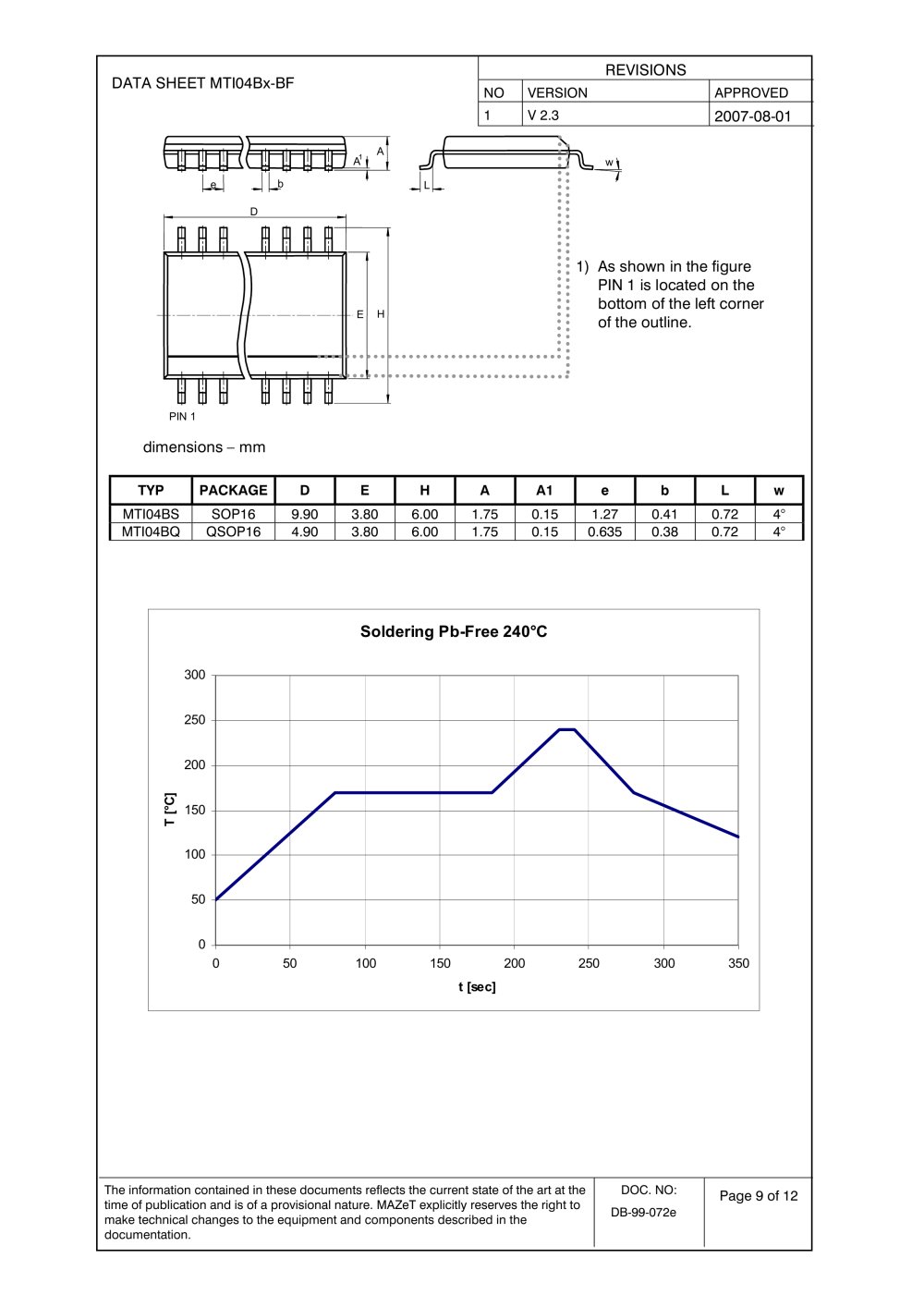

DATA SHEET MTI04Bx-BF
REVISIONS
NO
VERSION
APPROVED
1
V 2.3
2007-08-01
A
J
L
D
1) As shown in the figure PIN 1 is located on the bottom of the left corner of the outline.
PIN 1
dimensions - mm
TYP
PACKAGE
D
E
H
A
A1
e
b
L
w
MTI04BS
SOP16
9.90
3.80
6.00
1.75
0.15
1.27
0.41
0.72
4°
MTI04BQ
QSOP16
4.90
3.80
6.00
1.75
0.15
0.635
0.38
0.72
4°
The information contained in these documents reflects the current state of the art at the time of publication and is of a provisional nature. MAZeT explicitly reserves the right to make technical changes to the equipment and components described in the documentation.
DOC. NO: DB-99-072e
Page 9 of 12
