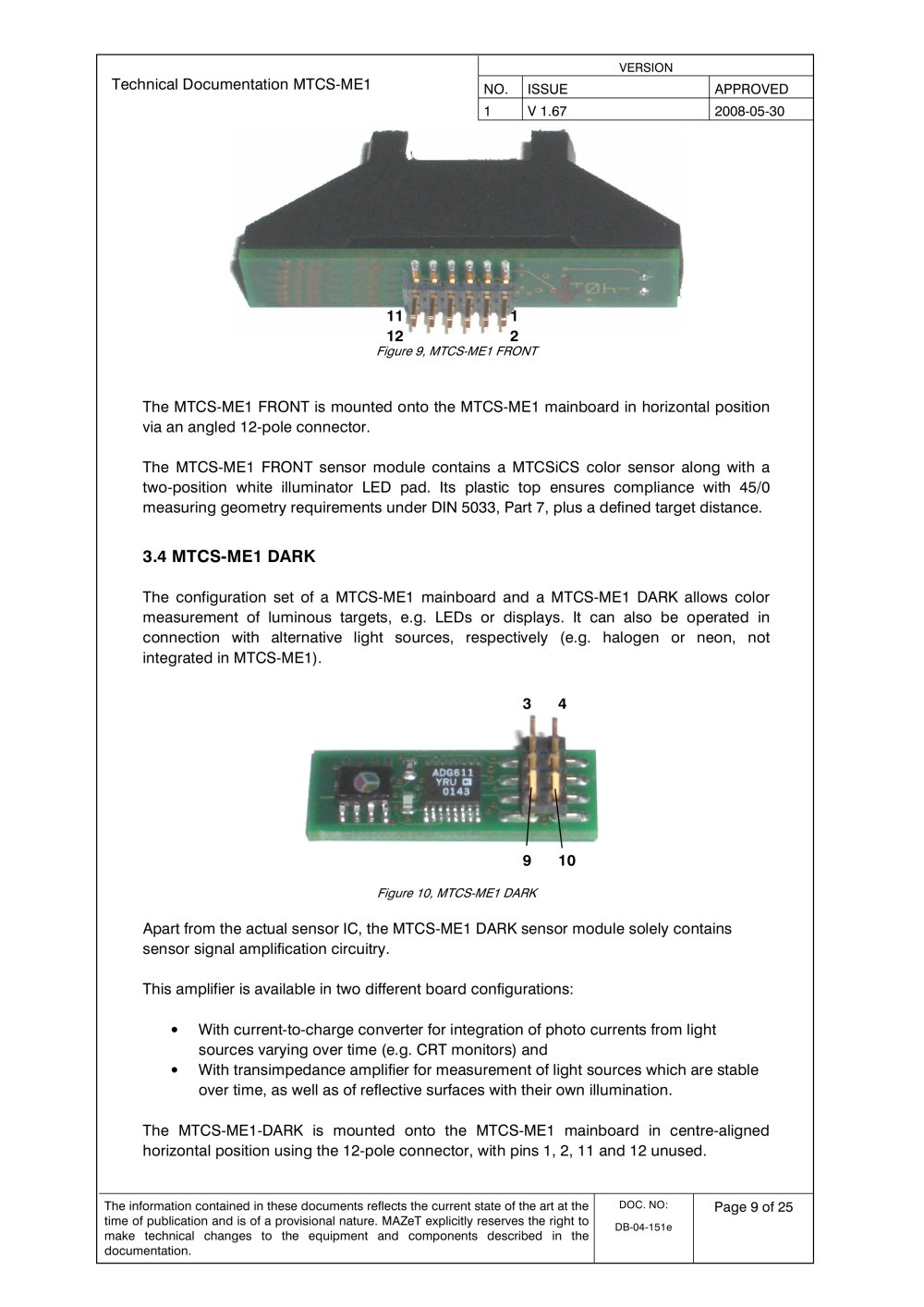

3.4 MTCS-ME1 DARK
The configuration set of a MTCS-ME1 mainboard and a MTCS-ME1 DARK allows color measurement ot luminous targets, e.g. LEDs or displays. It can also be operated in connection with alternative light sources, respectively (e.g. halogen or neon, not integrated in MTCS-ME1).
|
||
|
|
||
|
3 4
|
||
|
|
||
 |
||
|
|
||
|
9 10
|
||
|
|
||
|
Figure 10. MTCS-MF1 DARK
Apart from the actual sensor IC, the MTCS-ME1 DARK sensor module solely contains sensor signal amplification circuitry.
This amplifier is available in two différent board configurations:
• With current-to-charge converter for intégration of photo currents from light sources varying over time (e.g. CRT monitors) and
• With transimpedance amplifier for measurement of light sources which are stable over time, as well as of reflective surfaces with their own illumination.
The MTCS-ME1-DARK is mounted onto the MTCS-ME1 mainboard in centre-aligned horizontal position using the 12-pole connector, with pins 1,2, 11 and 12 unused.
|
||
|
|
||
 |
||
|
|
||
