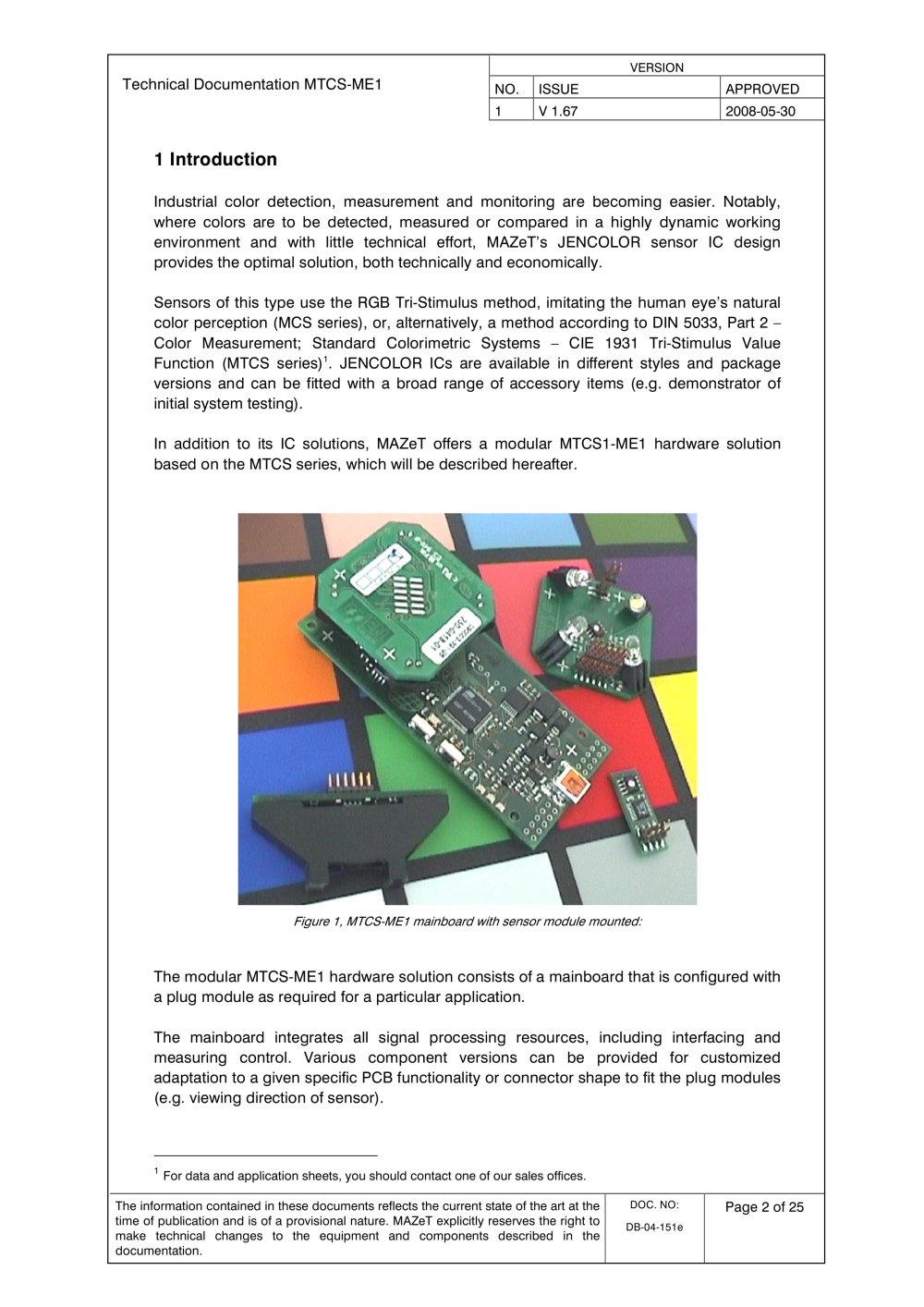

| Technical Documentation MTCS-ME1 | ||||||||||||||||||||||||||||||||||||||||||
| 1 Introduction | ||||||||||||||||||||||||||||||||||||||||||
| Industrial color detection, measurement and monitoring are becoming easier. Notably, where colors are to be detected, measured or compared in a highly dynamic working environment and with little technical effort, MAZeT's JENCOLOR sensor IC design provides the optimal solution, both technically and economically. Sensors of this type use the RGB Tri-Stimulus method, imitating the human eye's natural color perception (MCS series), or, alternatively, a method according to DIN 5033, Part 2 -Color Measurement; Standard Colorimetric Systems - CIE 1931 Tri-Stimulus Value Function (MTCS series)1. JENCOLOR ICs are available in different styles and package versions and can be fitted with a broad range of accessory items (e.g. demonstrator of initial system testing). In addition to its IC solutions, MAZeT offers a modular MTCS1-ME1 hardware solution based on the MTCS series, which will be described hereafter. | ||||||||||||||||||||||||||||||||||||||||||
| Figure 1, MTCS-ME1 mainboard with sensormodule mounted: | ||||||||||||||||||||||||||||||||||||||||||
| The modular MTCS-ME1 hardware solution consists of a mainboard that is configured with a plug module as required for a particular application. The mainboard integrates all signal processing resources, including interfacing and measuring control. Various component versions can be provided for customized adaptation to a given specific PCB functionality or connector shape to fit the plug modules (e.g. viewing direction of sensor). | ||||||||||||||||||||||||||||||||||||||||||
| 1 For data and application sheets, you should contact one of our sales offices. | ||||||||||||||||||||||||||||||||||||||||||
| The information contained in these documents reflects the current state of the art at the time of publication and is of a provisional nature. MAZeT explicitly reserves the right to make technical changes to the equipment and components described in the documentation. | ||||||||||||||||||||||||||||||||||||||||||
