Polymer Electric

Safety Mats - 29520 Safety MatsProduct Range

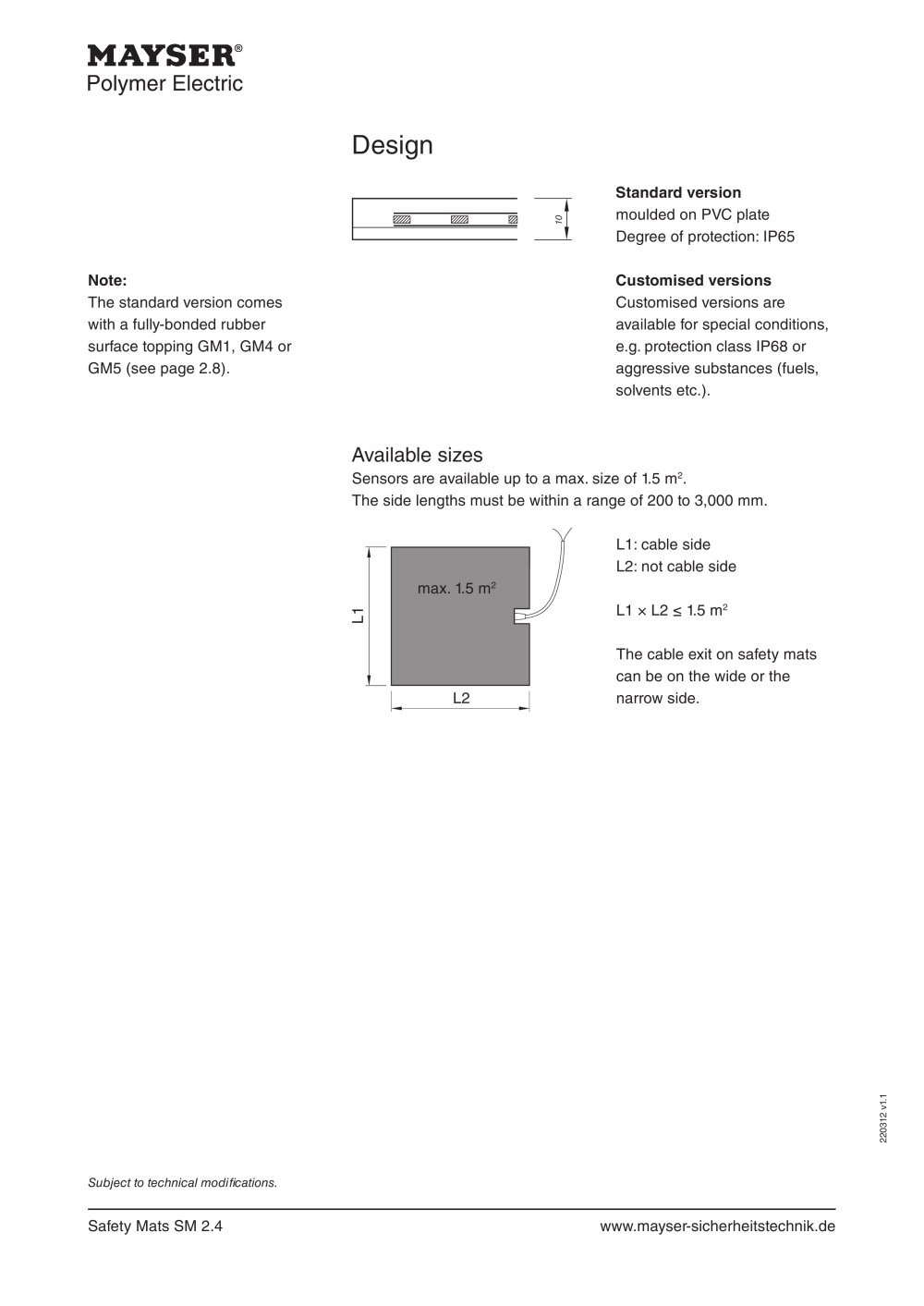

1.3.1Available sizes

The sensors can be supplied with a maximum area of 1.5 m
2 .The sides must be within 200 to 3,000 mm long. Please observe order instructions!L1 x L2 ( ≤ 1.5 m²)L1: cable exit sideL2: side without cable exitThe cable exit can be on the long orthe short side. max. 1.5 m²
200 to 3,000 mm L1 (cable exit side) 200 to 3,000 mm L2

Dead zone along edges

The non-sensitive area around a sensor: -25 mm=on cable exit side-10 mm=on remaining three sidesWhere several sensors make upone contact area only the mat sides with 10 mm edges should lie next to one another.

Special shapes

e.g. other corner shapese.g. cut-outsCut-outs e.g. for machine feet,switch cabinets etc. can be taken into consideration when the mats are being produced.Other shapes such as circles, circlesegments, trapezia, etc. are also possible.
Subject to technical modifications. 210498 Mayser Polymer Electric P.O. Box 3048 D-89020 Ulm Tel. +49-731/2061-0 Fax +49-731/2061-222
