MAYS ER

Polymer Electric

4-wire-connection system (without monitoring resistor)

control unit (control device with output signal

switching device)

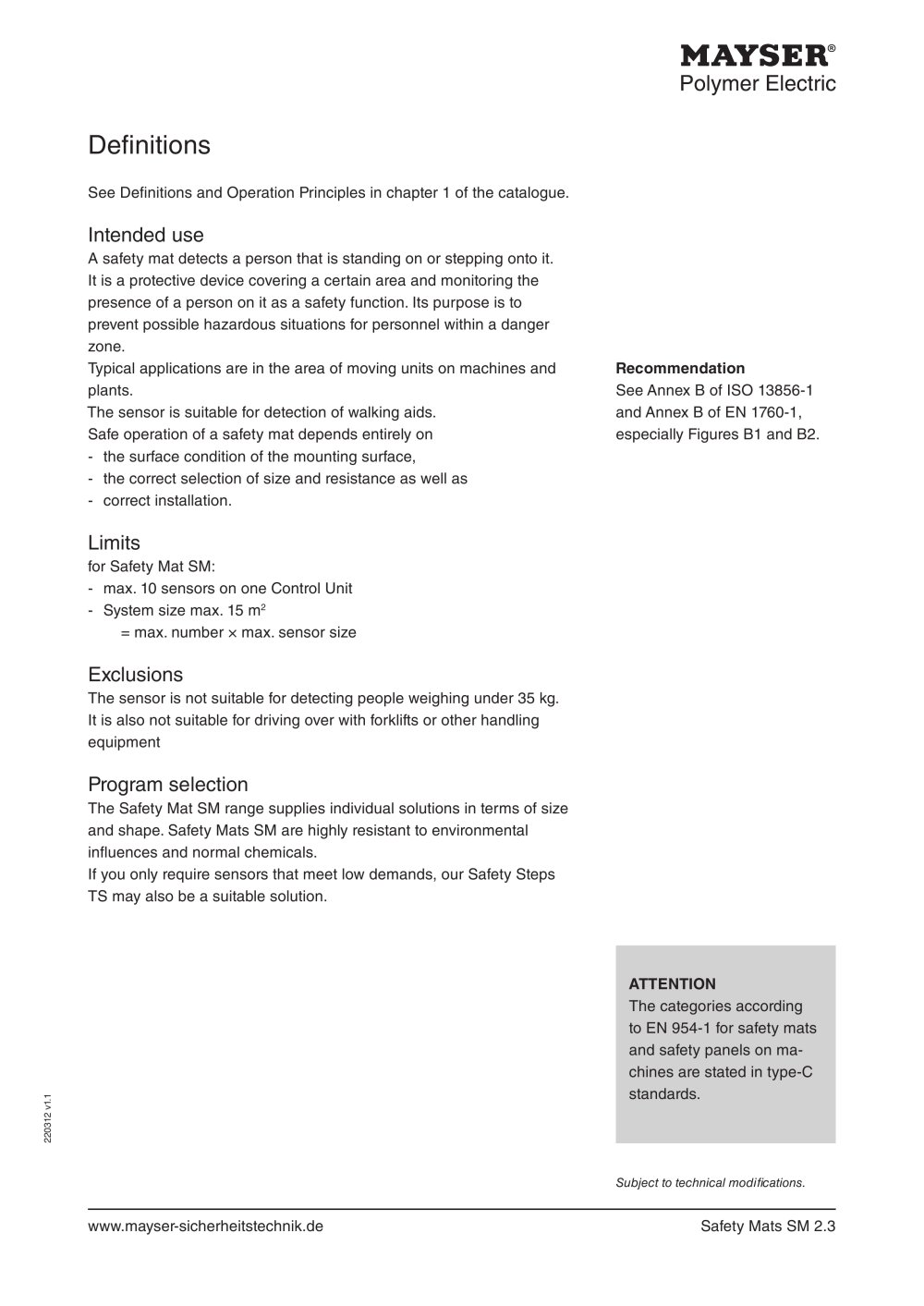

Safety Mats Product Range

1.2.2

sensor

The Pressure Senstive Mat is actuated by stepping onto the sensor.

It comprises sensor, control device and output signal switching device. The control device and the output signal switching device are combined in the control unit.


	-1—1-'	^_______^
	-1_1- i—^—n-	*^^m ^^m ^^m ^^m ^^m ^^m ^^m ^^m ^^m.*____
	0—LF

Power

(m) Motor

Type

SM/BK

Through sensor

For your safety:

The sensor and the connecting cable are constantly monitored for function.

The monitoring restistor is not required due to signal transmission feedback.

loi

-r

L°~~_ _~~^¡~~_ _~~°J

Combination of sensors

Example:

Combinations:

- connection of several sensors

- shape and size of sensitive areas can be individually laid out

- connection to Safe Edges and Safety Bumpers possible

- only one control unit necessary


lûl'lûl SM/BK	lûl'lûl SM/BK	lûl'lûl SM/BK
		SM/BK MI

Extension lead with moulded plug and socket

See 1.4.1 for cable connection

Note:

The 4-wire-connection system can only be applied using the control unit SG-SUE 41X4 NA.

Subject to technical modifications.

00 CD

Mayser Polymer Electric P.O. Box 3048 D-89020 Ulm

Tel. +49-731/2061-0 Fax +49-731/2061-222
