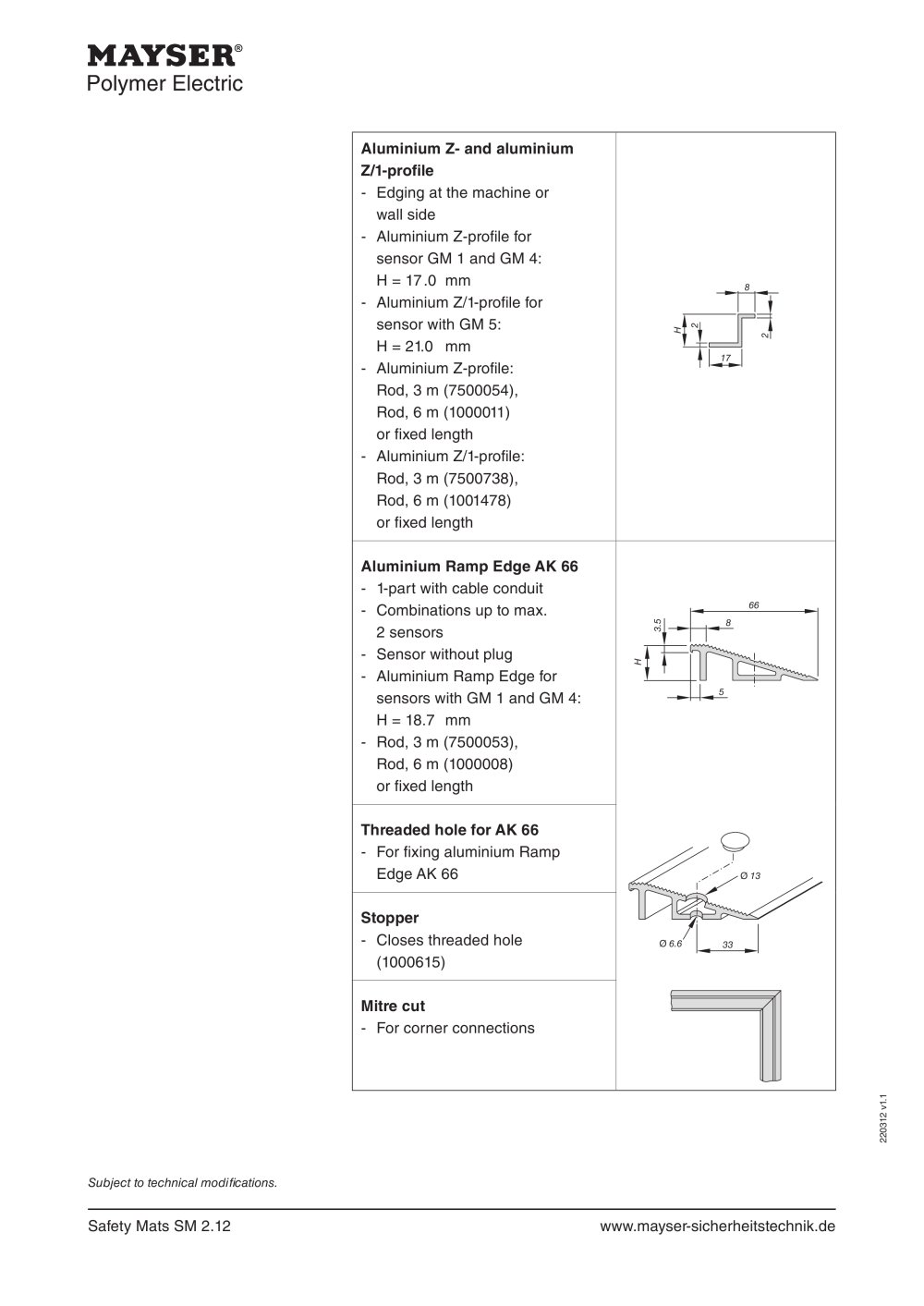

Aluminium Z- and aluminium Z/1-profile - Edging at the machine or wall side - Aluminium Z-profile for sensor GM 1 and GM 4: H = 17.0 mm - Aluminium Z/1-profile for sensor with GM 5: H = 21.0 mm - Aluminium Z-profile: Rod, 3 m (7500054), Rod, 6 m (1000011) or fixed length - Aluminium Z/1-profile: Rod, 3 m (7500738), Rod, 6 m (1001478) or fixed length 2 2 H 17 66 3.5 8 H Aluminium Ramp Edge AK 66 - 1-part with cable conduit - Combinations up to max. 2 sensors - Sensor without plug - Aluminium Ramp Edge for sensors with GM 1 and GM 4: H = 18.7 mm - Rod, 3 m (7500053), Rod, 6 m (1000008) or fixed length 8 5 Threaded hole for AK 66 - For fixing aluminium Ramp Edge AK 66 Stopper - Closes threaded hole (1000615) Ø 13 Ø 6.6 33 220312 v1.1 Mitre cut - For corner connections Subject to technical modifications. Safety Mats SM 2.12 www.mayser-sicherheitstechnik.de
