Polymer Electric

Proven Safety

Safety Bumpers - 29520 Safety BumpersProduct Range

3.1.1

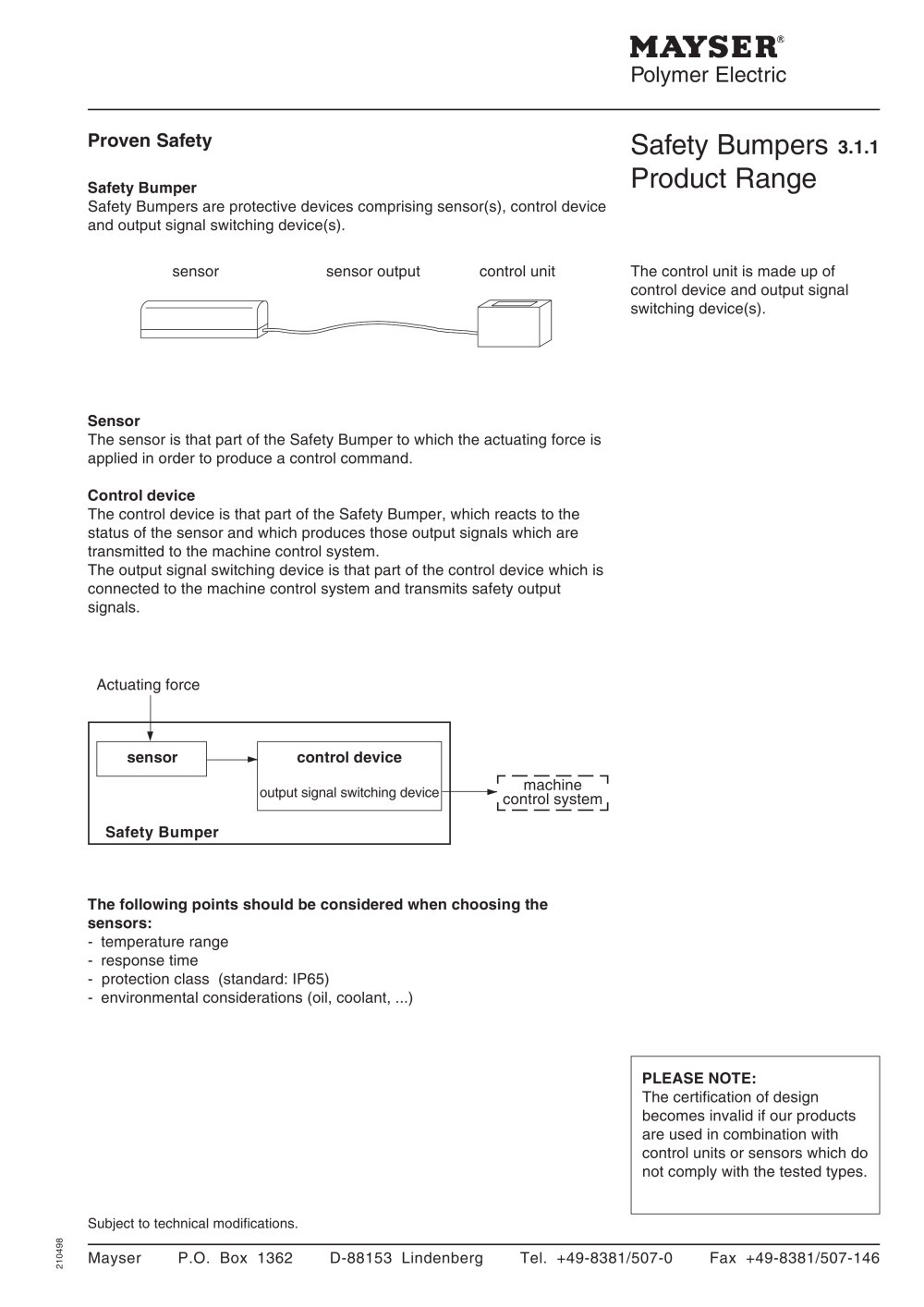

Safety Bumper Safety Bumpers are protective devices comprising sensor(s), control device and output signal switching device(s). Sensor The sensor is that part of the Safety Bumper to which the actuating force is applied in order to produce a control command. Control device The control device is that part of the Safety Bumper, which reacts to the status of the sensor and which produces those output signals which are transmitted to the machine control system. The output signal switching device is that part of the control device which is connected to the machine control system and transmits safety output signals. control unitsensor outputsensorThe control unit is made up ofcontrol device and output signal switching device(s). Actuating force The following points should be considered when choosing thesensors: -temperature range -response time - protection class (standard: IP65) -environmental considerations (oil, coolant, ...) sensorcontrol device
output signal switching device machinecontrol system Safety Bumper PLEASE NOTE: The certification of design becomes invalid if our products are used in combination with control units or sensors which do not comply with the tested types.
Subject to technical modifications. 210498 Mayser P.O. Box 1362 D-88153 Lindenberg Tel. +49-8381/507-0 Fax +49-8381/507-146
