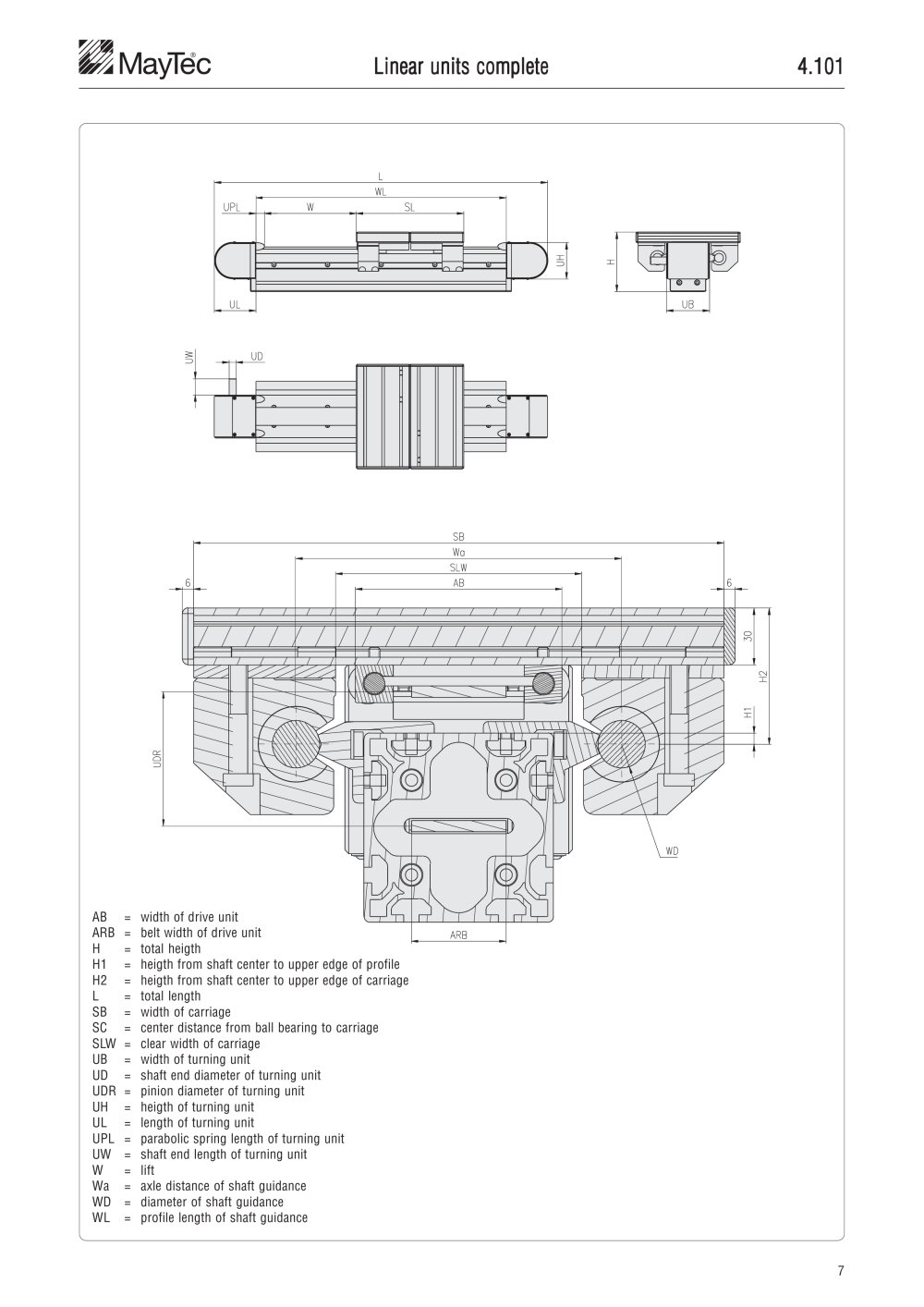

Linear units completeLinear units completeLinear units completeLinear units completeLinear units complete 4.1014.1014.1014.1014.101

AB=width of drive unitARB=belt width of drive unitH=total heigthH1=heigth from shaft center to upper edge of profileH2=heigth from shaft center to upper edge of carriageL=total lengthSB=width of carriageSC=center distance from ball bearing to carriageSLW=clear width of carriageUB=width of turning unitUD=shaft end diameter of turning unitUDR=pinion diameter of turning unitUH=heigth of turning unitUL=length of turning unitUPL=parabolic spring length of turning unitUW=shaft end length of turning unitW=liftWa=axle distance of shaft guidanceWD=diameter of shaft guidanceWL=profile length of shaft guidance 7
