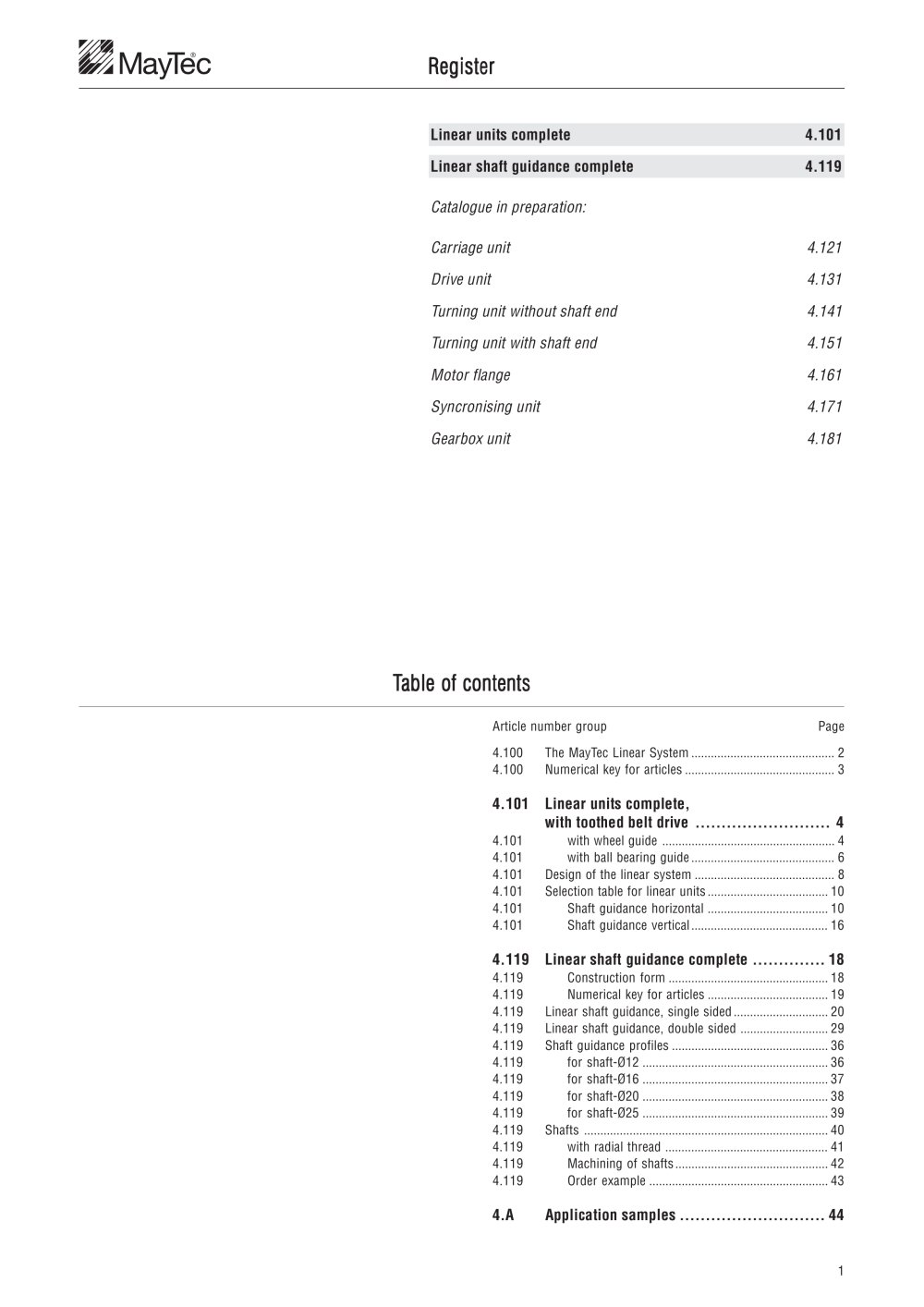

| Register | ||||||||||||
| Linear units complete 4.101 Linear shaft guidance complete 4.119 Catalogue in preparation: Carriage unit 4.121 Drive unit 4.131 Turning unit without shaft end 4.141 Turning unit with shaft end 4.151 Motor flange 4.161 Syncronising unit 4.171 Gearbox unit 4.181 | ||||||||||||
| Table of contents | ||||||||||||
| Article number group Page 4.100 The MayTec Linear System............................................2 4.100 Numerical key for articles..............................................3 4.101 Linear units complete, with toothed belt drive..........................4 4.101 with wheel guide.....................................................4 4.101 with ball bearing guide............................................6 4.101 Design of the linear system...........................................8 4.101 Selection table for linear units.....................................10 4.101 Shaft guidance horizontal.....................................10 4.101 Shaft guidance vertical..........................................16 4.119 Linear shaft guidance complete..............18 4.119 Construction form.................................................18 4.119 Numerical key for articles.....................................19 4.119 Linear shaft guidance, single sided.............................20 4.119 Linear shaft guidance, double sided...........................29 4.119 Shaft guidance profiles................................................36 4.119 for shaft-012.........................................................36 4.119 for shaft-016.........................................................37 4.119 for shaft-020 .........................................................38 4.119 for shaft-025 .........................................................39 4.119 Shafts...........................................................................40 4.119 with radial thread..................................................41 4.119 Machining of shafts...............................................42 4.119 Order example.......................................................43 4.A Application samples............................44 | ||||||||||||
