Él MayTëc

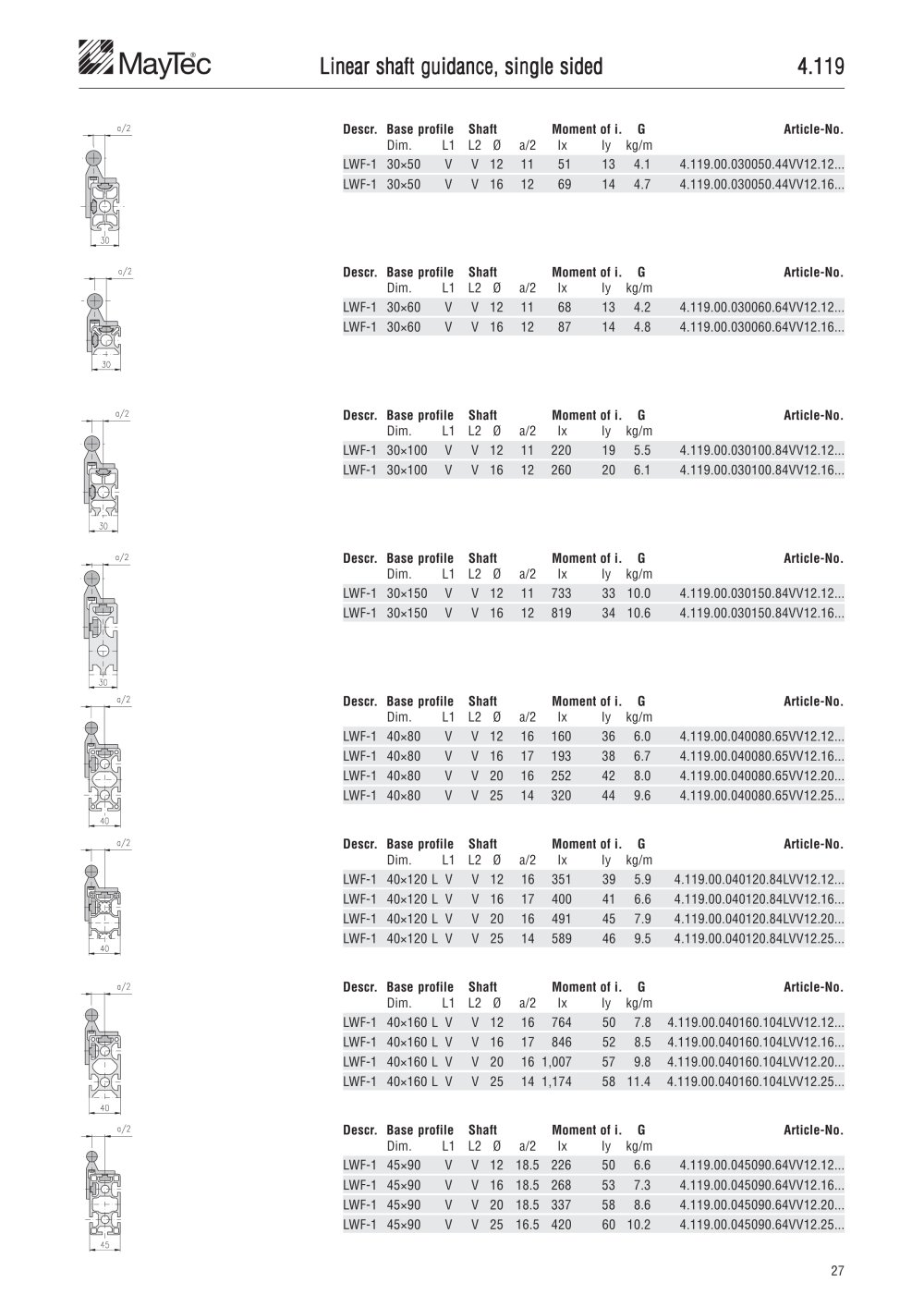

Linear shaft guidance, single sided
4.119
Descr. Base profile Shaft Moment of i. G
Dim. L1 L2 0 a/2 Ix ly kg/m
LWF-1 30x50 V V 12 11 51 13 4.1
LWF-1 30x50 V V 16 12 69 14 4.7
Article-No.
4.119.00.030050.44VV12.12... 4.119.00.030050.44VV12.16...
Descr. Base profile Shaft Moment of i. G
Dim. L1 L2 0 a/2 Ix Iy kg/m
LWF-1 30x60 V V 12 11 68 13 4.2
LWF-1 30x60 V V 16 12 87 14 4.8
Article-No.
4.119.00.030060.64VV12.12... 4.119.00.030060.64VV12.16...
Descr. Base profile Shaft Moment of i. G
Dim. L1 L2 0 a/2 Ix Iy kg/m
LWF-1 30x100 V V 12 11 220 19 5.5
LWF-1 30x100 V V 16 12 260 20 6.1
Article-No.
4.119.00.030100.84VV12.12... 4.119.00.030100.84VV12.16...
30
g/2
Descr. Base profile Shaft Moment of i. G
Dim. L1 L2 0 a/2 Ix Iy kg/m
LWF-1 30x150 V V 12 11 733 33 10.0
LWF-1 30x150 V V 16 12 819 34 10.6
Article-No.
4.119.00.030150.84VV12.12... 4.119.00.030150.84VV12.16...
-č-
a/2
Descr. Base profile Shaft Moment of i. G
Dim. L1 L2 0 a/2 Ix Iy kg/m
LWF-1 40x80 V V 12 16 160 36 6.0
LWF-1 40x80 V V 16 17 193 38 6.7
LWF-1 40x80 V V 20 16 252 42 8.0
LWF-1 40x80 V V 25 14 320 44 9.6
Article-No.
4.119.00.040080.65VV12.12... 4.119.00.040080.65VV12.16... 4.119.00.040080.65VV12.20... 4.119.00.040080.65VV12.25...
čtajTo'
Descr. Base profile Shaft
Moment of i. G
Article-No.
5Sj
. 40 ,
a/2
Dim. L1
L2
0
a/2
Ix
Iy
kg/m
LWF-1
40x120 L V
V
12
16
351
39
5.9
4.119.00.040120.84LVV12.12...
LWF-1
40x120 L V
V
16
17
400
41
6.6
4.119.00.040120.84LVV12.16...
LWF-1
40x120 L V
V
20
16
491
45
7.9
4.119.00.040120.84LVV12.20...
LWF-1
40x120 L V
V
25
14
589
46
9.5
4.119.00.040120.84LVV12.25...
Descr.
Base profile
Shaft
Moment of i.
G
Article-No.
Dim. L1
L2
0
a/2
Ix
Iy
kg/m
LWF-1
40x160 L V
V
12
16
764
50
7.8
4.119.00.040160.104LVV12.12...
LWF-1
40x160 L V
V
16
17
846
52
8.5
4.119.00.040160.104LVV12.16...
LWF-1
40x160 L V
V
20
16 1,007
57
9.8
4.119.00.040160.104LVV12.20...
LWF-1
40x160 L V
V
25
14 1,174
58
11.4
4.119.00.040160.104LVV12.25...
Descr.
Base profile
Shaft
Moment of i.
G
Article-No.
Dim. L1
L2
0
a/2
Ix
Iy
kg/m
LWF-1
45x90 V
V
12
18.5
226
50
6.6
4.119.00.045090.64VV12.12...
LWF-1
45x90 V
V
16
18.5
268
53
7.3
4.119.00.045090.64VV12.16...
LWF-1
45x90 V
V
20
18.5
337
58
8.6
4.119.00.045090.64VV12.20...
LWF-1
45x90 V
V
25
16.5
420
60
10.2
4.119.00.045090.64VV12.25...
