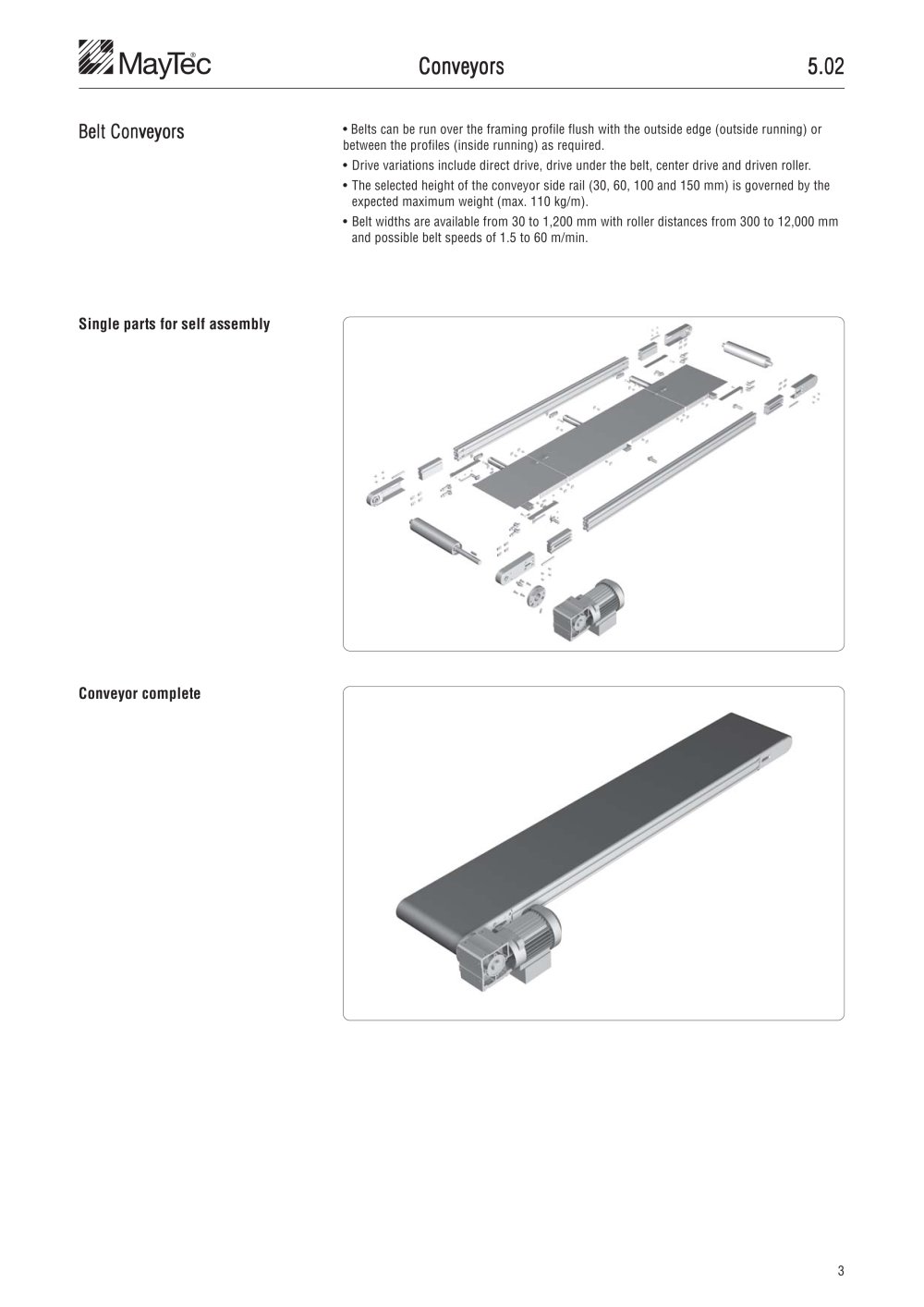

| MayTėc | |||||||||||||||
| Conveyors | |||||||||||||||
| 5.02 | |||||||||||||||
| Belt Conveyors | • Belts can be run over the framing profile flush with the outside edge (outside running) or between the profiles (inside running) as required. • Drive variations include direct drive, drive under the belt, center drive and driven roller. • The selected height of the conveyor side rail (30, 60, 100 and 150 mm) is governed by the expected maximum weight (max. 110 kg/m). • Belt widths are available from 30 to 1,200 mm with roller distances from 300 to 12,000 mm and possible belt speeds of 1.5 to 60 m/min. | ||||||||||||||
| Single parts for self assembly | |||||||||||||||
| Conveyor complete | |||||||||||||||
| 3 | |||||||||||||||
