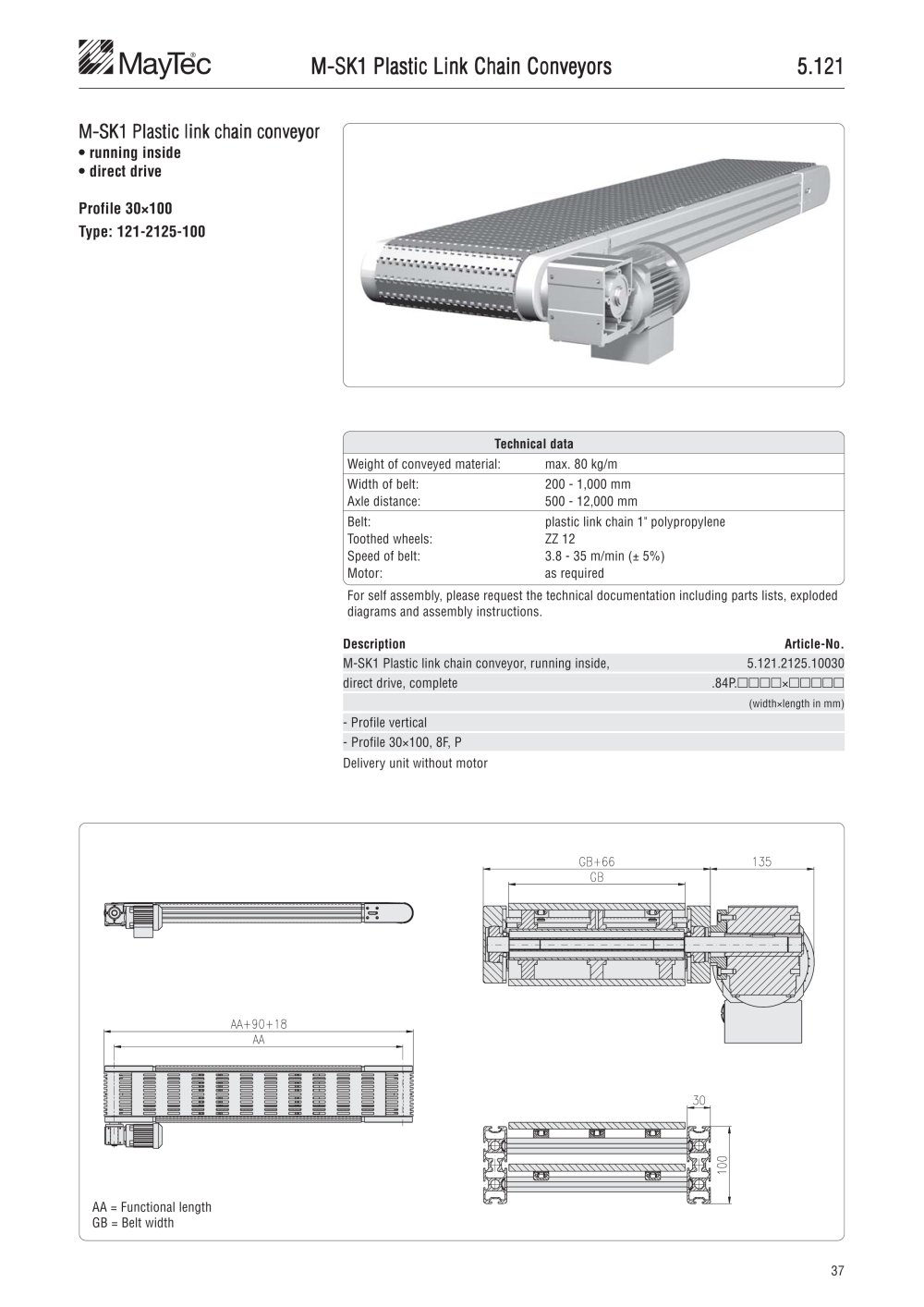

M-SK1 Plastic Link Chain ConveyorsM-SK1 Plastic Link Chain ConveyorsM-SK1 Plastic Link Chain ConveyorsM-SK1 Plastic Link Chain ConveyorsM-SK1 Plastic Link Chain Conveyors 5.1215.1215.1215.1215.121
M-SK1 Plastic link chain conveyorM-SK1 Plastic link chain conveyorM-SK1 Plastic link chain conveyorM-SK1 Plastic link chain conveyorM-SK1 Plastic link chain conveyor
• running inside• direct driveProfile 30×100Type: 121-2125-100
Technical data Weight of conveyed material:max. 80 kg/m Width of belt:200 - 1,000 mmAxle distance:500 - 12,000 mmBelt:plastic link chain 1" polypropyleneToothed wheels:ZZ 12 Speed of belt:3.8 - 35 m/min (± 5%)Motor:as requiredFor self assembly, please request the technical documentation including parts lists, explodeddiagrams and assembly instructions. AA = Functional lengthGB = Belt width DescriptionArticle-No. M-SK1 Plastic link chain conveyor, running inside,5.121.2125.10030 direct drive, complete.84P. ×(width×length in mm) - Profile vertical - Profile 30×100, 8F, PDelivery unit without motor 37
