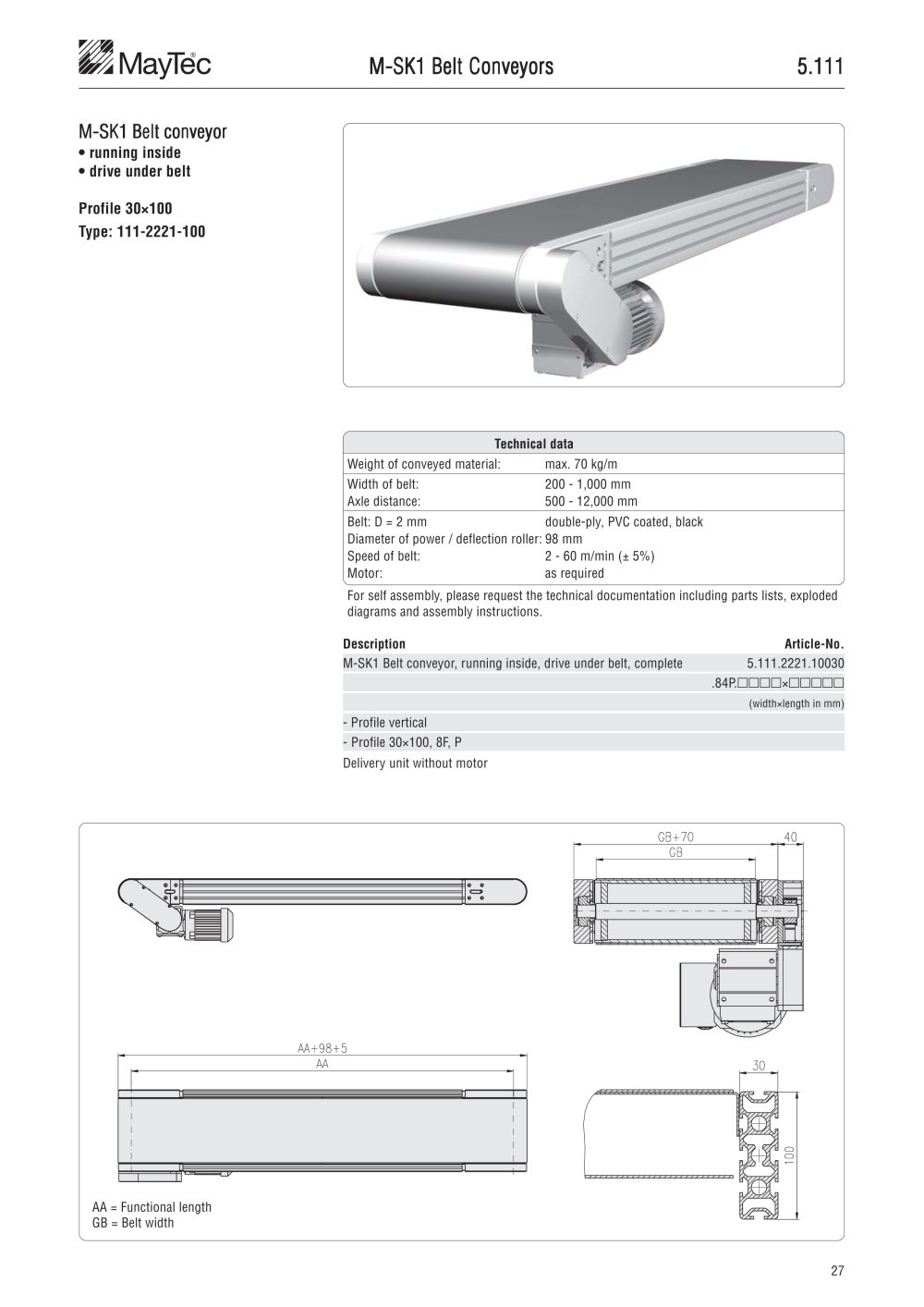

M-SK1 Belt ConveyorsM-SK1 Belt ConveyorsM-SK1 Belt ConveyorsM-SK1 Belt ConveyorsM-SK1 Belt Conveyors 5.1115.1115.1115.1115.111
M-SK1 Belt conveyorM-SK1 Belt conveyorM-SK1 Belt conveyorM-SK1 Belt conveyorM-SK1 Belt conveyor
• running inside• drive under beltProfile 30×100Type: 111-2221-100
Technical data Weight of conveyed material:max. 70 kg/m Width of belt:200 - 1,000 mmAxle distance:500 - 12,000 mmBelt: D = 2 mmdouble-ply, PVC coated, blackDiameter of power / deflection roller:98 mm Speed of belt:2 - 60 m/min (± 5%)Motor:as requiredFor self assembly, please request the technical documentation including parts lists, explodeddiagrams and assembly instructions. AA = Functional lengthGB = Belt width DescriptionArticle-No. M-SK1 Belt conveyor, running inside, drive under belt, complete5.111.2221.10030 .84P. ×(width×length in mm) - Profile vertical - Profile 30×100, 8F, PDelivery unit without motor 27
