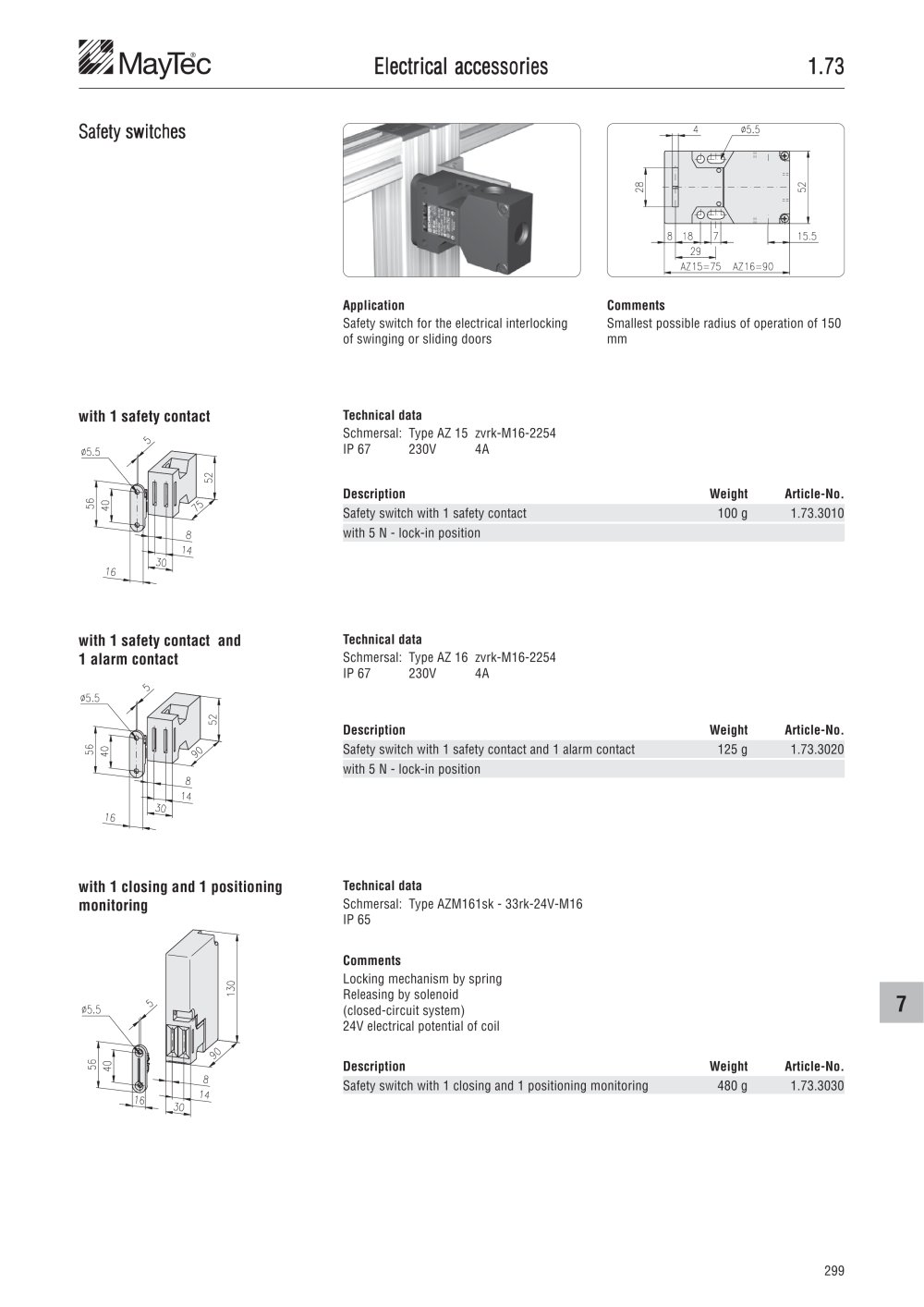

Electrical accessoriesElectrical accessoriesElectrical accessoriesElectrical accessoriesElectrical accessories 1.731.731.731.731.73

Safety switchesSafety switchesSafety switchesSafety switchesSafety switches

Application Comments Safety switch for the electrical interlockingof swinging or sliding doors Smallest possible radius of operation of 150mm

with 1 safety contact with 1 safety contact and1 alarm contact with 1 closing and 1 positioningmonitoring

Technical data Schmersal:Type AZ 15zvrk-M16-2254IP 67230V4A DescriptionWeightArticle-No. Safety switch with 1 safety contact100 g1.73.3010 with 5 N - lock-in position Technical data Schmersal:Type AZ 16zvrk-M16-2254IP 67230V4A DescriptionWeightArticle-No. Safety switch with 1 safety contact and 1 alarm contact125 g1.73.3020 with 5 N - lock-in position Technical data Schmersal:Type AZM161sk - 33rk-24V-M16IP 65 Comments Locking mechanism by springReleasing by solenoid(closed-circuit system)24V electrical potential of coil

7

DescriptionWeightArticle-No. Safety switch with 1 closing and 1 positioning monitoring480 g1.73.3030 299
