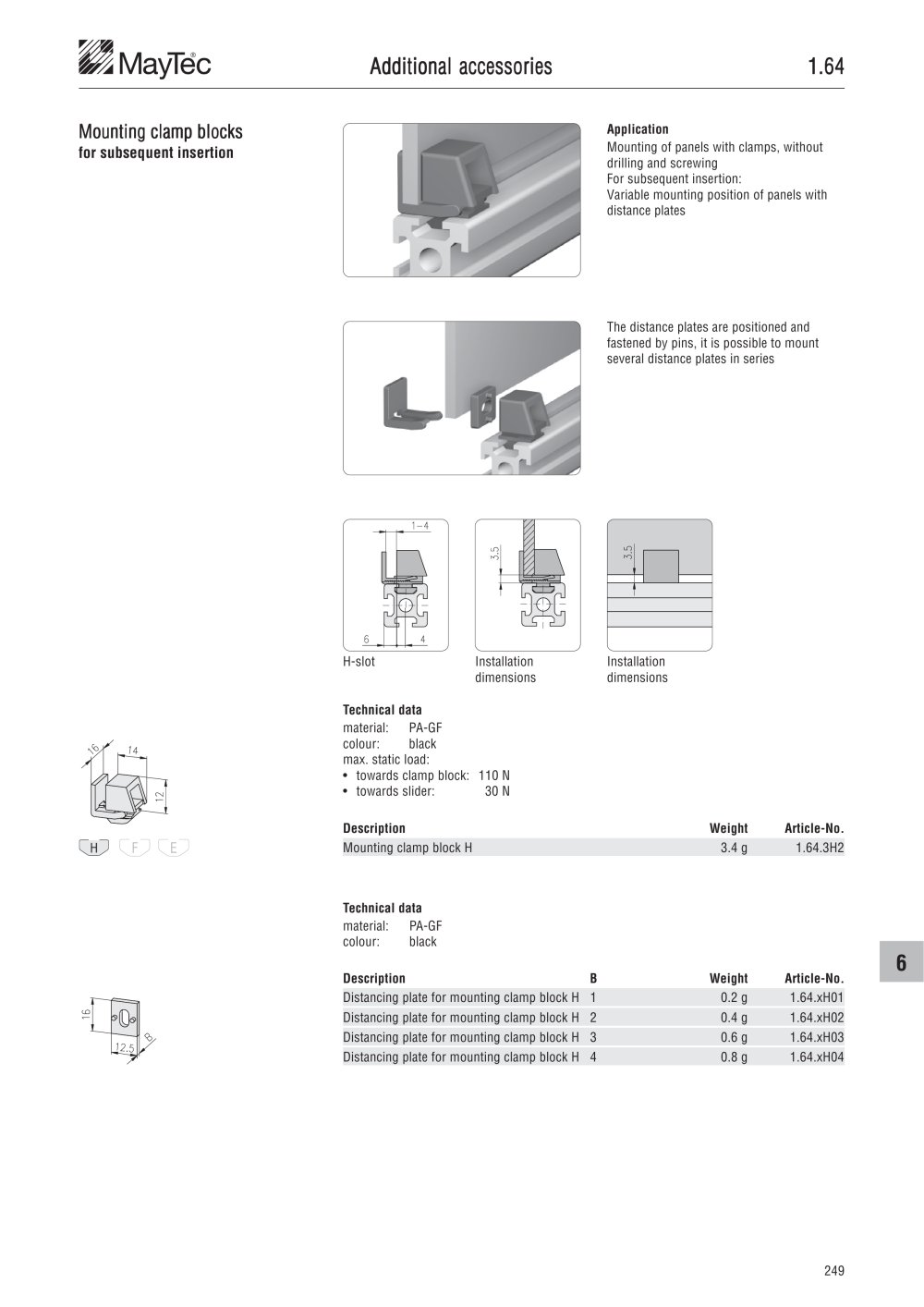

Additional accessories

1.64

Mounting clamp blocks for subsequent insertion

Application

Mounting of panels with clamps, without

drilling and screwing

For subsequent insertion:

Variable mounting position of panels with

distance plates

The distance plates are positioned and fastened by pins, it is possible to mount several distance plates in series

H-slot

Installation dimensions

Technical data

material: PA-GF colour: black max. static load:

• towards clamp block: 110 N

• towards slider: 30 N

Description

Mounting clamp block H

Weight

3.4 g

Article-No.

1.64.3H2

H J I

Technical data

material: PA-GF colour: black


Description	B	Weight	Article-No.
Distancing plate for mounting clamp block H	1	0.2 g	1.64.xH01
Distancing plate for mounting clamp block H	2	0.4 g	1.64.xH02
Distancing plate for mounting clamp block H	3	0.6 g	1.64.xH03
Distancing plate for mounting clamp block H	4	0.8 g	1.64.xH04
