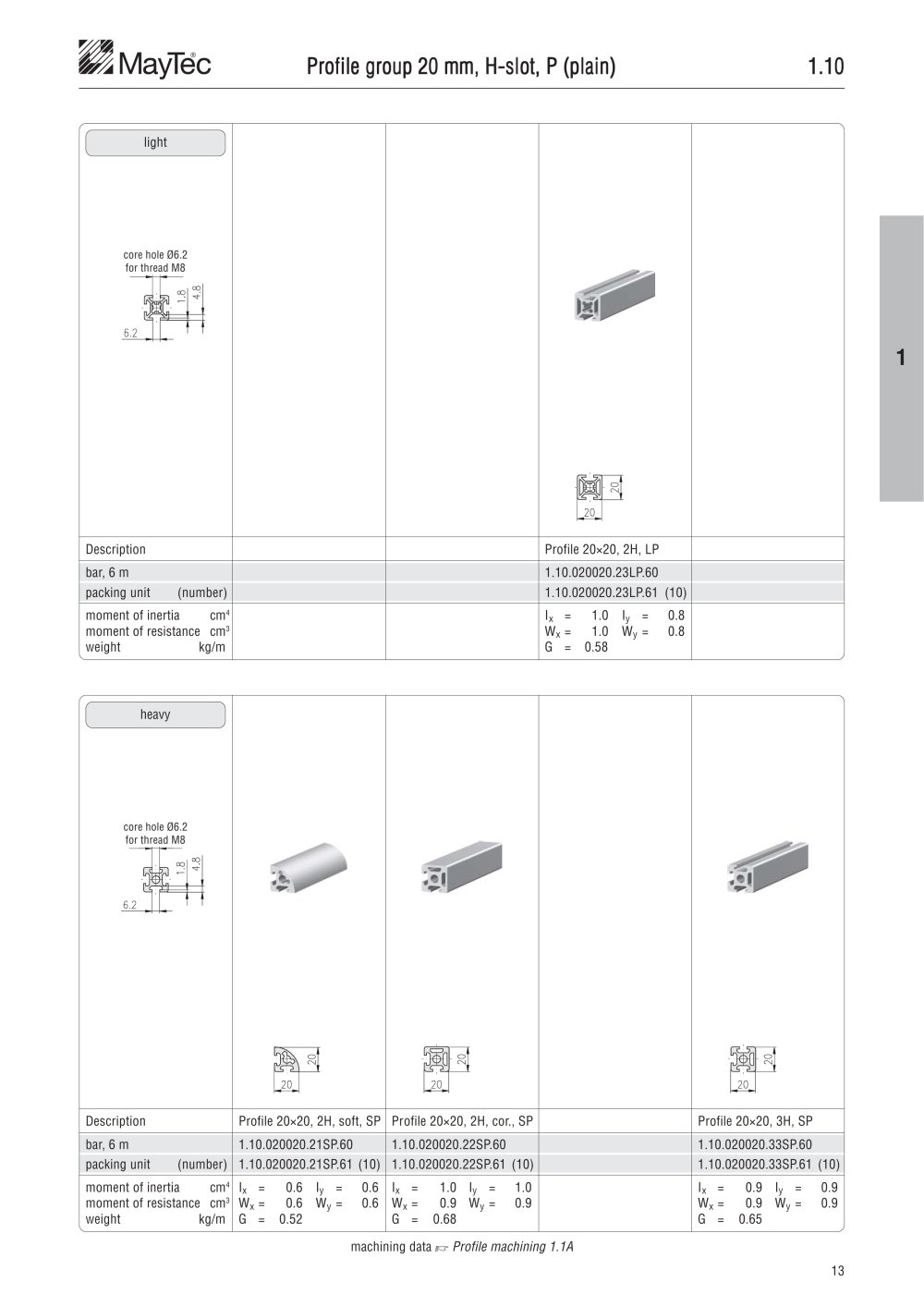

El MayTëc

Profile group 20 mm, H-slot, P (plain)

1.10


	"light ^ core hole 06.2 for thread M8 ¹⁼⁰ !⁰⁰1			.20.
				.20.
	Description			Profile 20x20, 2H, LP
	bar, 6 m packing unit (number)			1.10.020020.23LP.60 1.10.020020.23LP.61 (10)
	moment of inertia cm⁴			I_x = 1.0 I_y = 0.8
	moment of resistance cm³weight kg/m			Wx= 1.0 Wy= 0.8 G= 0.58	j


	r "heavy ^ core hole 06.2 for thread M8 1 °3 k_ , _^ 001 ^1

	Description	Profile 20x20, 2H, soft, SP	Profile 20x20, 2H, cor., SP		Profile 20x20, 3H, SP
	bar, 6 m packing unit (number)	1.10.020020.21SP.60 1.10.020020.21SP.61 (10)	1.10.020020.22SP.60 1.10.020020.22SP.61 (10)		1.10.020020.33SP.60 1.10.020020.33SP.61 (10)
	moment of inertia cm⁴	Ix = 0.6 Iy = 0.6	Ix = 1.0 Iy = 1.0		Ix = 0.9 Iy = 0.9
	moment of resistance cm³ weight kg/m	W_x= 0.6 W_y= 0.6 G= 0.52	W_x= 0.9 W_y= 0.9 G= 0.68		W_x= 0.9 W_y= 0.9 G= 0.65 j

machining data «=? Profile machining 1.1A

13
