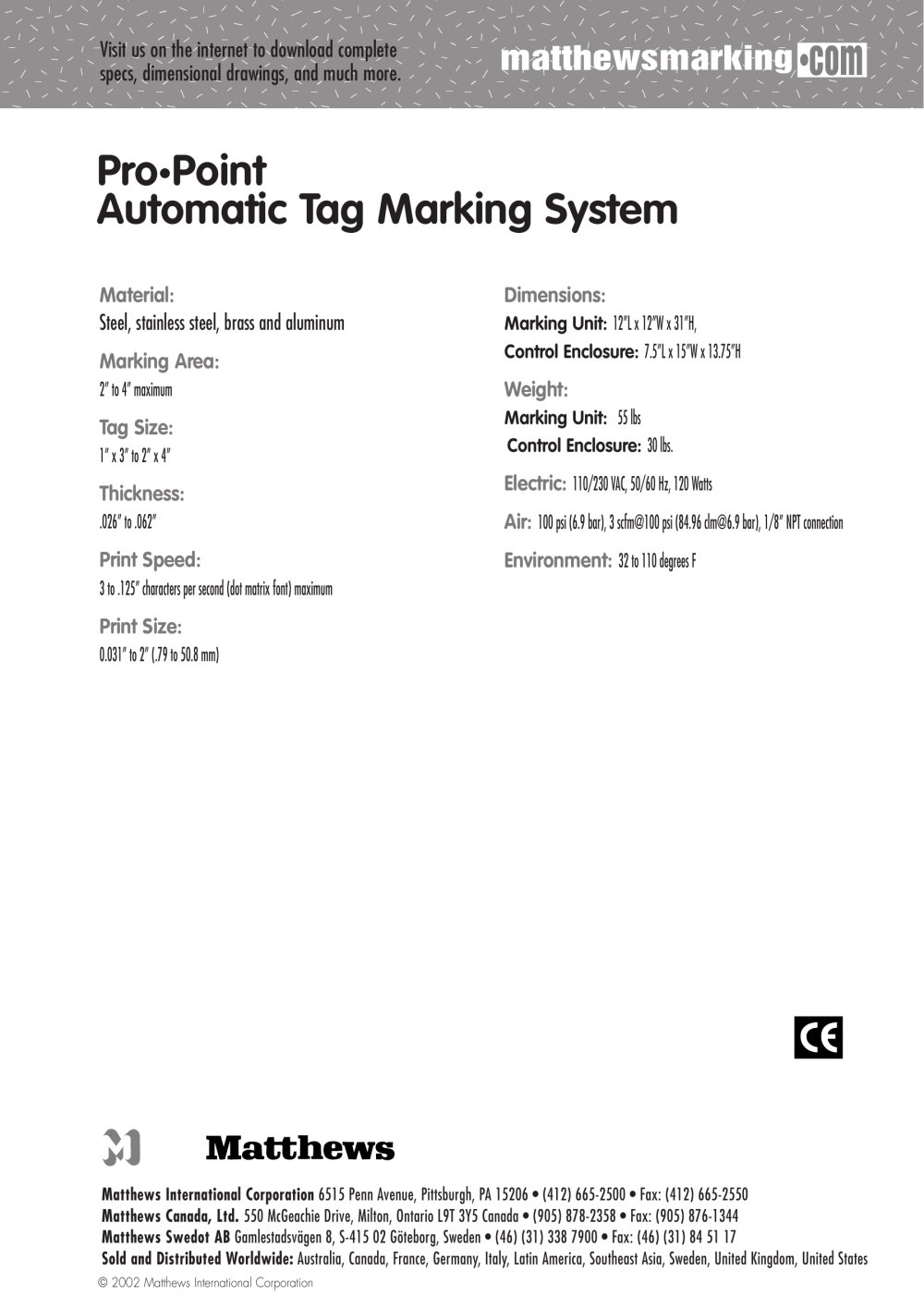

ProPoint™ Tag Marking System - 15338 Pro

•

PointAutomatic Tag Marking System

Material: Dimensions: Steel, stainless steel, brass and aluminum

Marking Unit: 12”L x 12”W x 31”H,

Marking Area:

Control Enclosure: 7.5”L x 15”W x 13.75”H 2” to 4” maximum

Weight: Tag Size:

Marking Unit: 55 lbs 1” x 3” to 2” x 4” Control Enclosure: 30 lbs.

Thickness: Electric:

110/230 VAC, 50/60 Hz, 120 Watts .026” to .062”

Air:

100 psi (6.9 bar), 3 scfm@100 psi (84.96 clm@6.9 bar), 1/8” NPT connection

Print Speed: Environment:

32 to 110 degrees F 3 to .125” characters per second (dot matrix font) maximum

Print Size:

0.031” to 2” (.79 to 50.8 mm)
