Indent-A-Mark

®

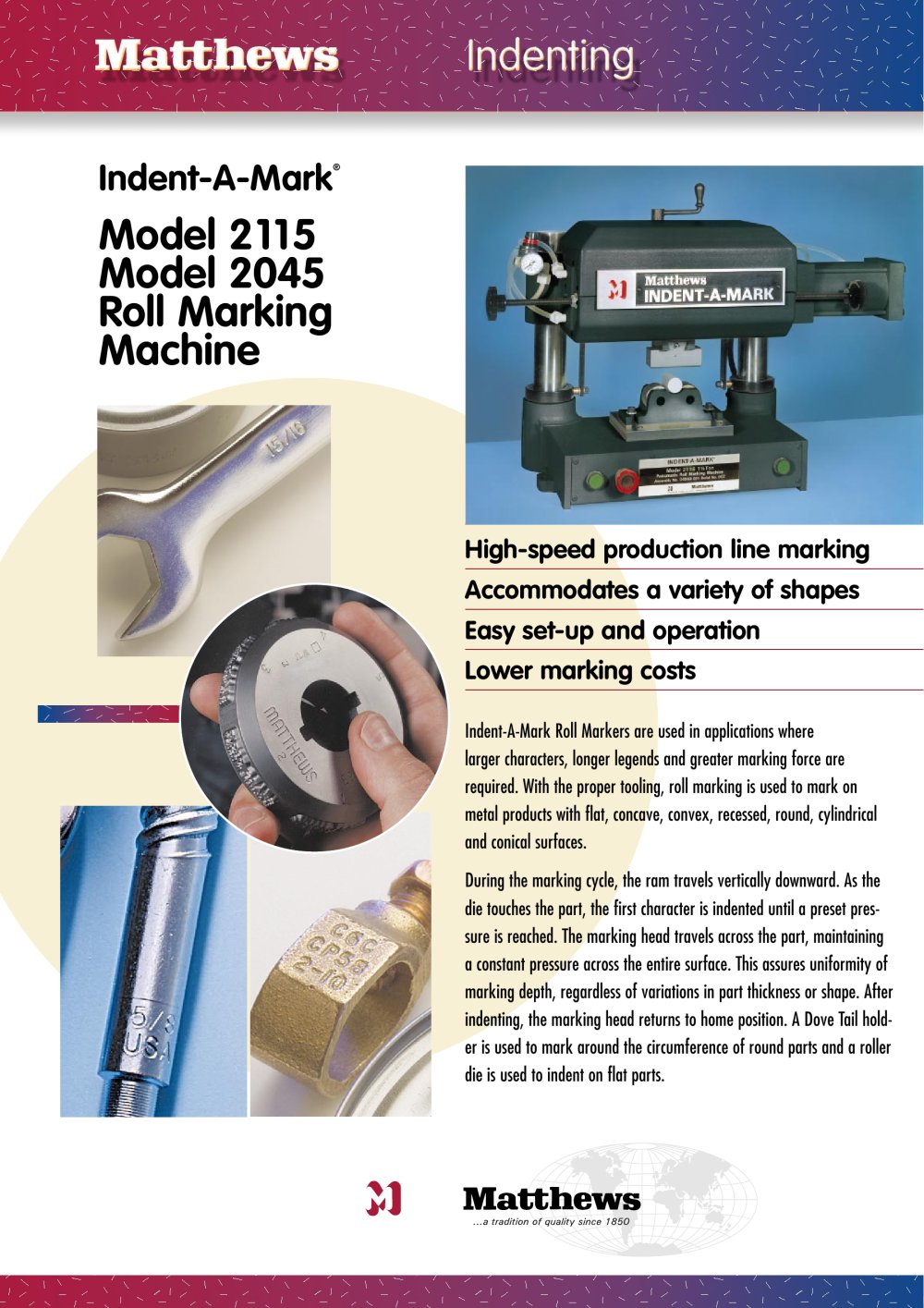

Model 2045 Roll Marking Systems - 15338 Model 2115Model 2045Roll Marking Machine

High-speed production line marking Accommodates a variety of shapes Easy set-up and operation Lower marking costs
Indent-A-Mark Roll Markers are used in applications where larger characters, longer legends and greater marking force are required. With the proper tooling, roll marking is used to mark on metal products with flat, concave, convex, recessed, round, cylindrical and conical surfaces. During the marking cycle, the ram travels vertically downward. As thedie touches the part, the first character is indented until a preset pres- sure is reached. The marking head travels across the part, maintaining a constant pressure across the entire surface. This assures uniformity of marking depth, regardless of variations in part thickness or shape. After indenting, the marking head returns to home position. A Dove Tail hold- er is used to mark around the circumference of round parts and a roller die is used to indent on flat parts.
