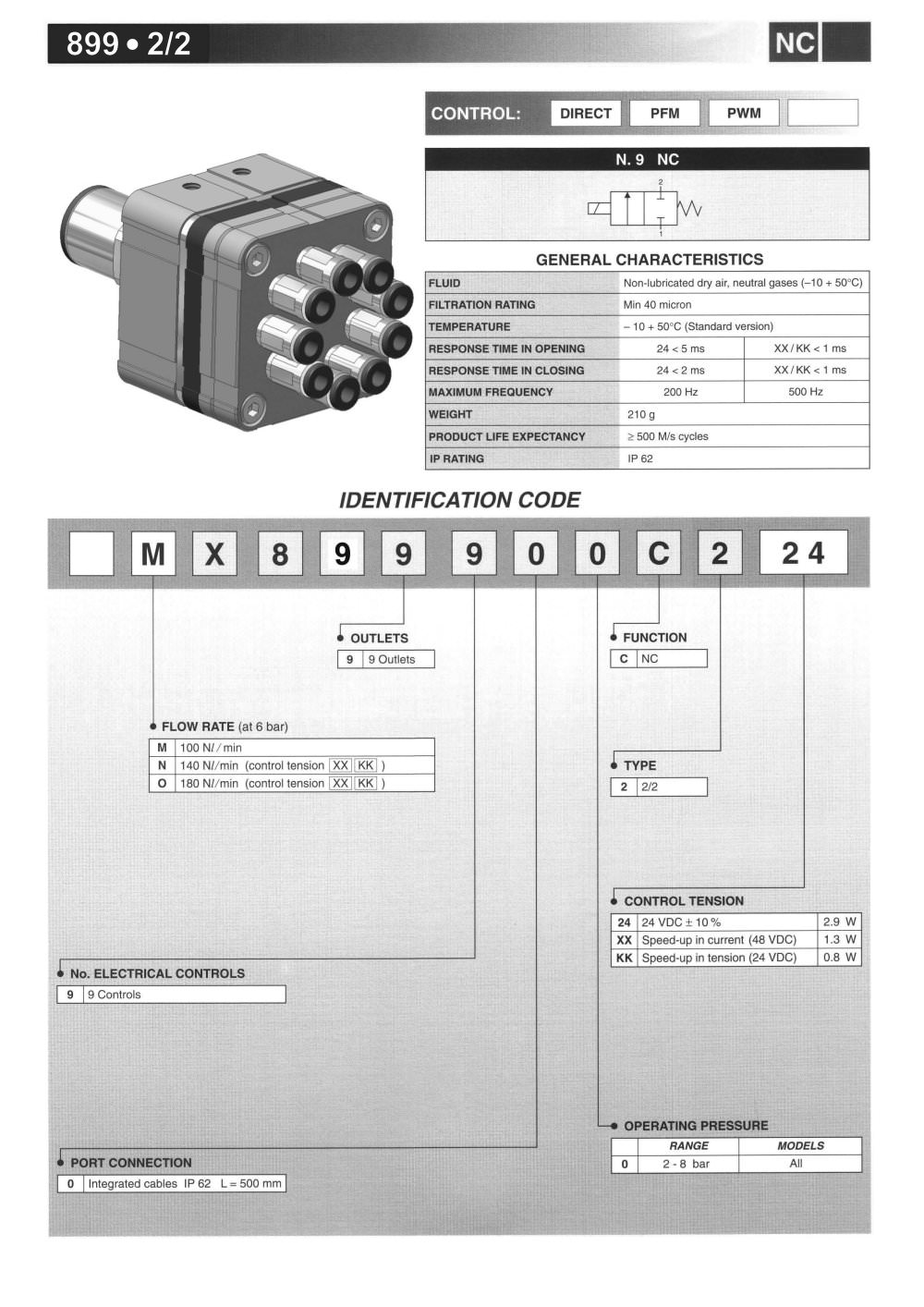

899 • 2/2 NC CONTROL GENERAL CHARACTERISTICS FLUID Non-lubricated dry air, neutral gases (-10 + 50°C) FILTRATION RATING Min 40 micron TEMPERATURE - 10 + 50°C (Standard version) RESPONSE TIME IN OPENING 24 < 5 ms XX/KK < 1 ms RESPONSE TIME IN CLOSING 24 < 2 ms XX / KK < 1 ms MAXIMUM FREQUENCY 200 Hz 500 Hz WEIGHT 210g PRODUCT LIFE EXPECTANCY > 500 M/s cycles IP RATING IP62 IDENTIFICATION CODE RANGE MODELS 0 2-8 bar Ail
