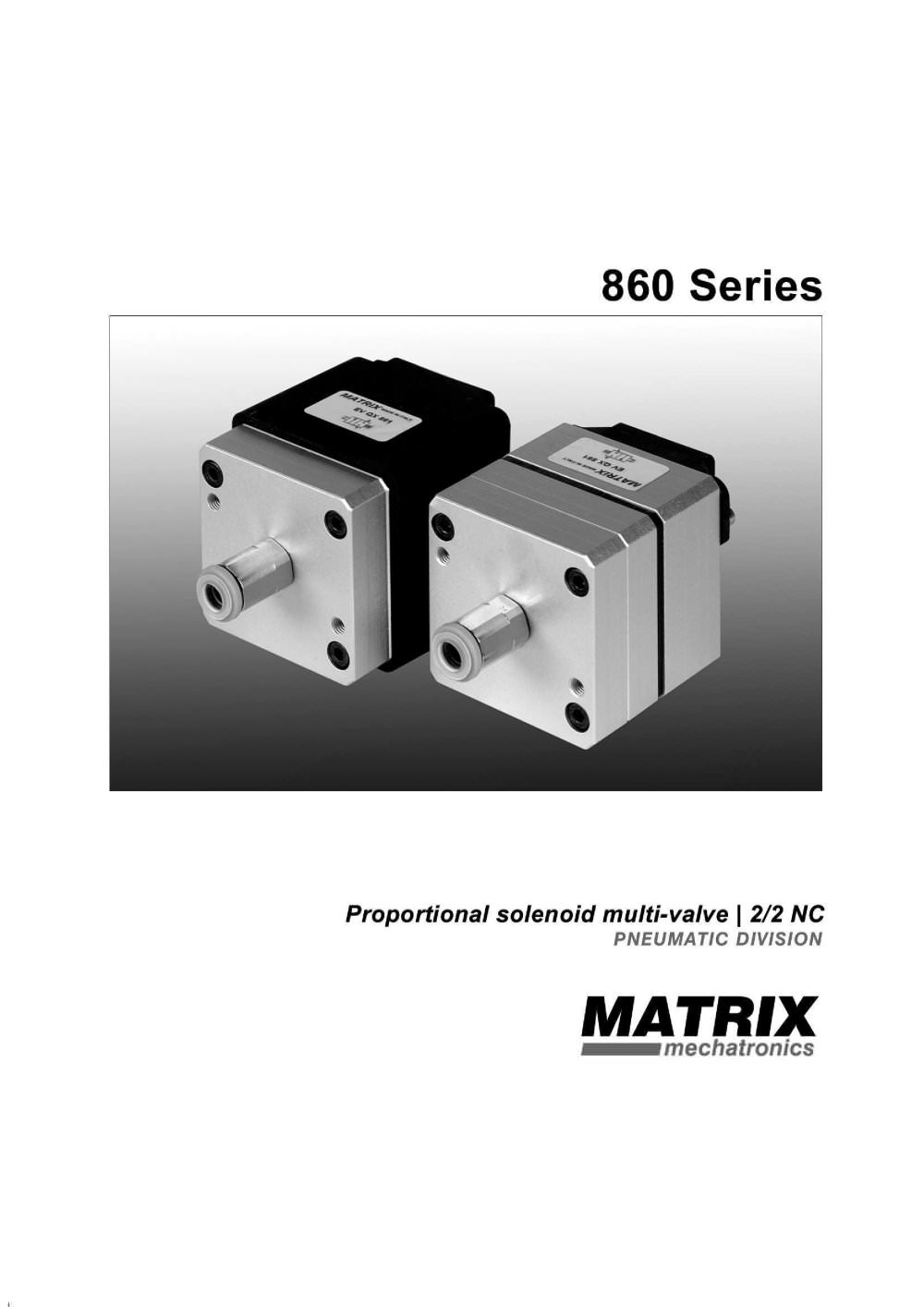

860 Sries Proportional solenoid multi-valve | 2/2 NC PNEUMATIC DIVISION MATRIX m^^mmechatronics
Open the catalog to page 1
S.V. 860 PCM VARIABLE FLOW SERIES 2/2 Pneumatic solenoid valves belonging to 860 PCM variable flow Sթries housed in a single body nine shutters separately controlled. Said shutters have diffrent fluid flow and are conveyed to a single outlet port. The solenoid valves are flow proportional and characterized by a linear link between the whole flow rate and the control binary code. Therefore, they represent the idal solution for the flow control in a digital way (PCM technique). Response times both in opening and in closing are less than a millisecond and are independent from the flow value....
Open the catalog to page 2
S.V. 860 PCM VARIABLE FLOW SERIES 2 6-bit (64 levels) pattern 8-bit (256 levels) pattern Channel C NU (min x bar) Channel C N// (min x bar) 1 54.20 1 36.13 27.10 2 18.06 3 13.55 3 19.03 4 6.77 4 4.52 5 3.39 5 2.26 6 1.69 6 1.13 7 0.56 ח 8 0.28 Picture 1 - Flow values of the single channels, rounded off lo dשcimal second. 6-bit (64 levels) pattern 8-bit (256 levels) pattern Maximum flow 108.39 N//(min x bar) Minimum flow 1.69 N//(min x bar) Flow rate, maximum 6 bar 752.84 N//min Maximum flow 72.26 N//(min x bar) Minimum flow 0.28 N//(min x bar) Flow rate, maximum 6 bar 506.13 N//min...
Open the catalog to page 3
860 PCM VARIABLE FLOW SERIES 2/2 860 PCM Sթries - 64 flow levels version CN//(minxbar) 120 -,-,-1-,-1-1- 0 10 20 30 40 50 60 70 (no. Levels) Picture 4 - Flow run upon varying N (64 levels). 860 PCM Sries - 256 flow levels version CN//(minxbar) N 0 50 100 150 200 pI-n 300 (no. Levels) Picture 5 - Flow run upon varying N (256 levels).
Open the catalog to page 4
1 PCM VARIABLE FLOW 2/2 NC © AWG 24 L = 500 mm -►] VIEW A 0 55 VIEW A L jl6J M 5 no. 6 ACCESSORIES Rթfrence Quantity Description 1 1 PUSH-IN FITTING 0 10/8 2 1 PUSH-IN FITTING 0 10/8 NOTE: Inch size available CHARACTERISTICS OF THE ELECTRICAL CONTROL - MODELS KK -P100% Pressure run N.B. KK MODELS ARE CONTROLLED IN TENSION V 1 = 24 VDC t1 = 3 ms V2 = 5 VDC ELECTRICAL PORT CONNECTION VERSION PX (64 LEVELS / 6-BIT) ELECTRICAL PORT CONNECTION VERSION QX (256 LEVELS / 8-BIT) COLOUR 6 CONTROLS BLACK COMMON BROWN 1 RED 1 ORANGE 1 YELLOW 2 GREEN 2 BLUE 3 VIOLET 4 GREY 5 WHITE 6 COLOUR 8 CONTROLS...
