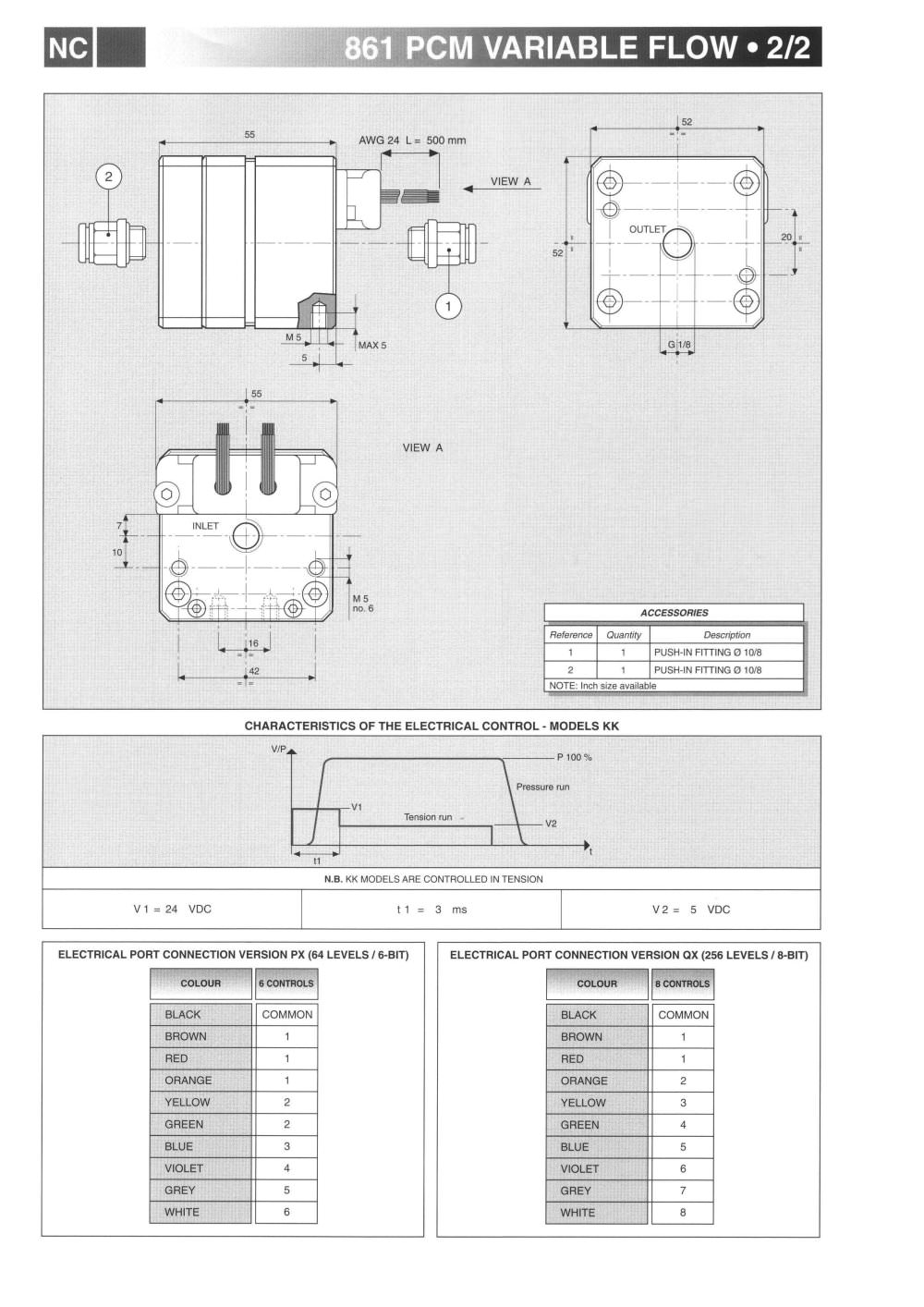

1 PCM VARIABLE FLOW • 2/2 NC © AWG 24 L = 500 mm -►] VIEW A 0 55 VIEW A L jl6J M 5 no. 6 ACCESSORIES Référence Quantity Description 1 1 PUSH-IN FITTING 0 10/8 2 1 PUSH-IN FITTING 0 10/8 NOTE: Inch size available CHARACTERISTICS OF THE ELECTRICAL CONTROL - MODELS KK -P100% Pressure run N.B. KK MODELS ARE CONTROLLED IN TENSION V 1 = 24 VDC t1 = 3 ms V2 = 5 VDC ELECTRICAL PORT CONNECTION VERSION PX (64 LEVELS / 6-BIT) ELECTRICAL PORT CONNECTION VERSION QX (256 LEVELS / 8-BIT) COLOUR 6 CONTROLS BLACK COMMON BROWN 1 RED 1 ORANGE 1 YELLOW 2 GREEN 2 BLUE 3 VIOLET 4 GREY 5 WHITE 6 COLOUR 8 CONTROLS BLACK COMMON BROWN 1 RED 1 ORANGE 2 YELLOW 3 GREEN 4 BLUE 5 VIOLET 6 GREY 7 WHITE 03
