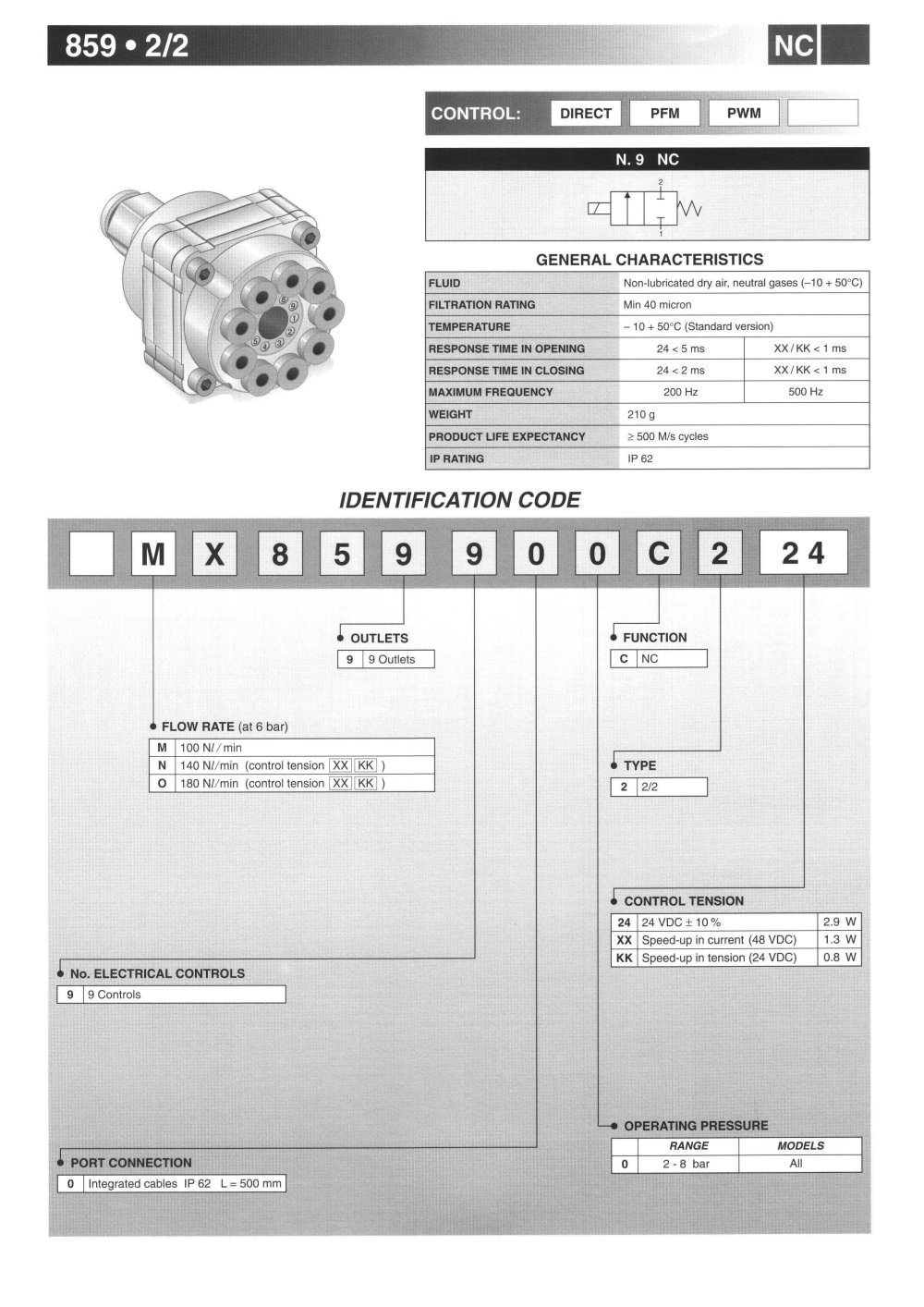

859 • 2/2 NC CONTROL GENERAL CHARACTERISTICS FLUID Non-lubricated dry air, neutral gases (-10 + 50°C) FILTRATION RATING Min 40 micron TEMPERATURE - 10 + 50°C (Standard version) RESPONSE TIME IN OPENING 24 < 5 ms XX/KK<1 ms RESPONSE TIME IN CLOSING 24 < 2 ms XX / KK < 1 ms MAXIMUM FREQUENCY 200 Hz 500 Hz WEIGHT 210 g PRODUCT LIFE EXPECTANCY > 500 M/s cycles IP RATING IP62 IDENTIFICATION CODE 5 140 N//min (control tension [XX][KK] ; TYPE 180 N//min (control tension [XX][KK] ; 2 2/2 CONTROL TENSION • No. ELECTRICAL CONTROLS I 9 I 9 Controls 24 24 VDC ±10% 2.9 W XX Speed-up in current (48 VDC) 1.3 W KK Speed-up in tension (24 VDC) 0.8 W OPERATING PRESSURE PORT CONNECTION range models 0 2-8 bar Ail Integrated cables IP 62 L = 500mm
