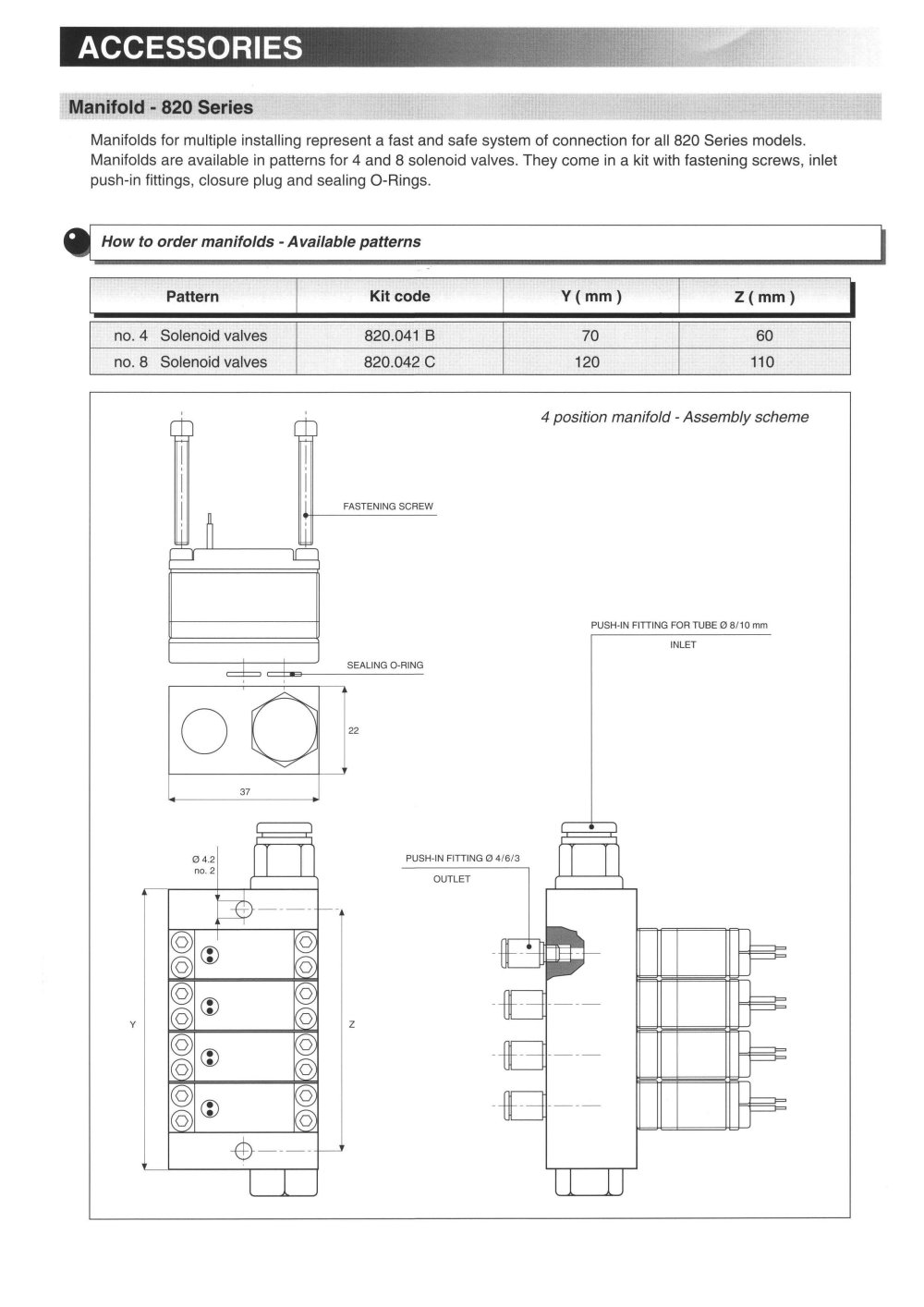

ACCESSORIES Manifold - 820 Séries Manifolds for multiple installing represent a fast and safe System of connection for ail 820 Séries models. Manifolds are available in patterns for 4 and 8 solenoid valves. They corne in a kit with fastening screws, inlet push-in fittings, closure plug and sealing O-Rings. How to order manifolds - Available patterns Pattern Kit code Y (mm) Z( mm ) no. 4 Solenoid valves 820.041 B 70 60 no. 8 Solenoid valves 820.042 C 120 110 4 position manifold - Assembly scheme PUSH-IN FITTING FOR TUBE 0 8/10 mm 0 4.2 no. 2 PUSH-IN FITTING 0 4/6/3 ©. © © © ® ©
