MATRIX Pneumatic Division - 750 Series compact solenoid multi-valve | 5/2 x 4 - 1

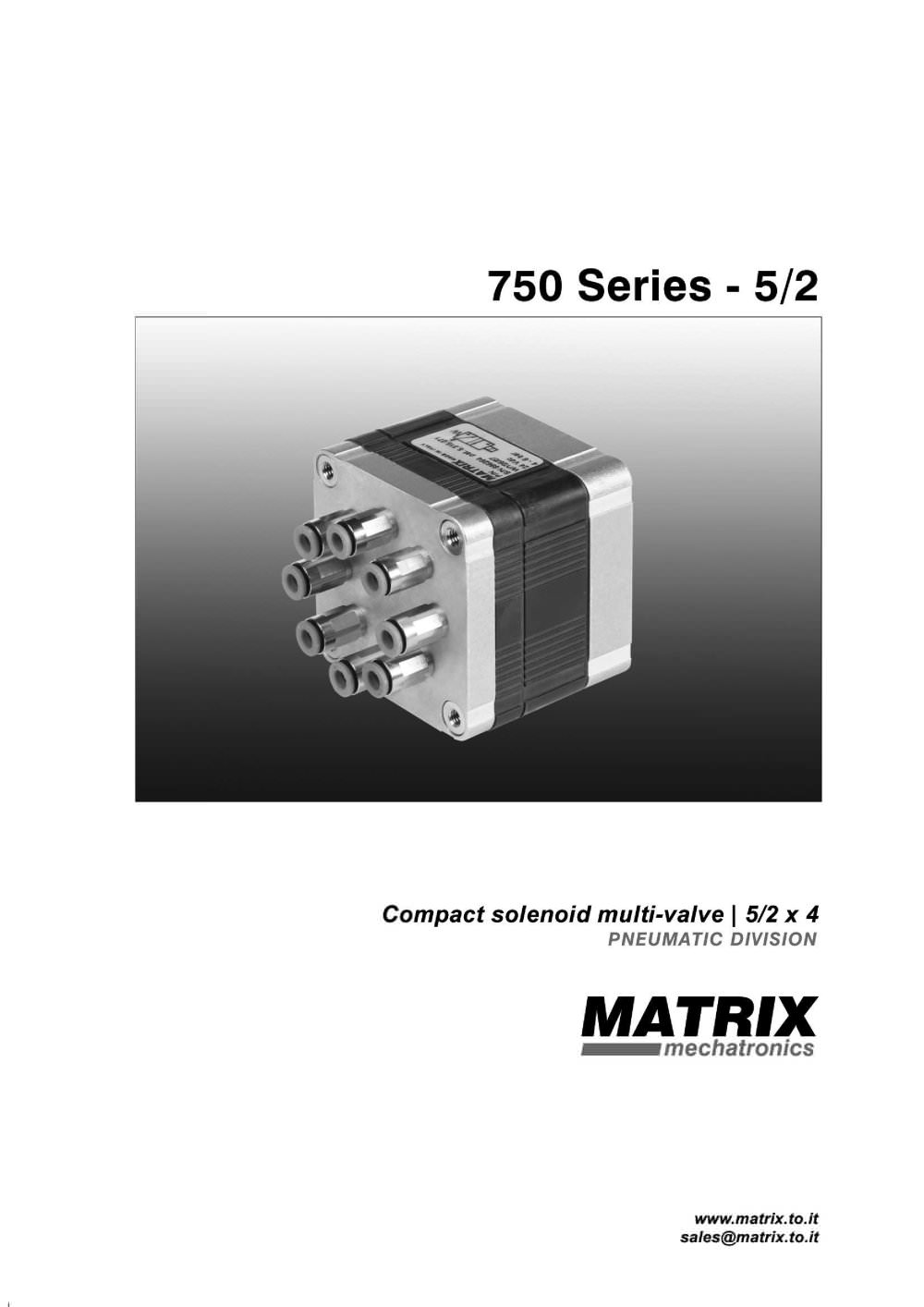

750 Sries - 5/2 Compact solenoid multi-valve \ 5/2 x 4 PNEUMATIC DIVISION MATRIX ^^^mmechatronics www. matrix. to. it sales@matrix. to.it

Open the catalog to page 1

MATRIX Pneumatic Division - 750 Series compact solenoid multi-valve | 5/2 x 4 - 2

SOLENOID VALVES 750 SERIES 5/2 5/2 750 Sթries encloses 8 shutters in a single body, four in NC configuration and four in NO configuration. Shutters are placed in NC - NO couples and every couple is combined to a single control, providing the change of function. The 8 outlets of the solenoid valve are also placed in an alternated NC - NO squence and every couple is prearranged to control a double-acting cylinder. The models prsent ail the innovations offered by Matrix technology, combining dynamic high-performance with the simplicity and reliability of the manufacture. Response times are of...

Open the catalog to page 2

MATRIX Pneumatic Division - 750 Series compact solenoid multi-valve | 5/2 x 4 - 3

758 5/2 NC-NO CONTROL: N. 4 1 2 1 UZ A/V > 1 3 GENERAL CHARACTERISTICS FLUID Non-lubricated dry air, neutral gases (-10 + 50°C) FILTRATION RATING Min 40 micron TEMPERATURE - 10 + 50°C (Standard version) RESPONSE TIME IN OPENING KK < 5 ms RESPONSE TIME IN CLOSING KK < 5 ms MAXIMUM FREQUENCY 100 Hz WEIGHT 380 g PRODUCT LIFE EXPECTANCY > 500 M/s cycles IP RATING IP 52 - IP 65 IDENTIFICATION CODE H 8 8 KK OUTLETS FUNCTIONS 8 8 Outlets N.4 Outlets NO N.4 Outlets NC FLOW RATE (at 6 bar) H 50N//min TYPE 5 5/2 VERSION Standard HNBR Shutters CONTROL TENSION KK Speed-up in tension ED 100%' (1) Only...

Open the catalog to page 3

MATRIX Pneumatic Division - 750 Series compact solenoid multi-valve | 5/2 x 4 - 4

Un NC-NO © 53 AWG 24 L = 500 mm r<-►> VIEW A XexhIust/'' ' "S M5 c 3o G 1/8 34 |5 VIEW A r 1 9.3J 3×t. OUTLETSM5 Normally Open 1-3-5-7 Normally Closed 2-4-6-8 ACCESSORIES Rfrence Ouanf/fy Description 1 1 PUSH-IN FITTING 0 10 2 8 PUSH-IN FITTING 0 4/6 3 1 SILENCER 4 1 SILENCER NOTE: Inch si/e avaiiabie exhaust M 5 CHARACTERISTICS OF THE ELECTRICAL CONTROL - MODELS KK -P100% N.B. KK MODELS ARE CONTROLLED IN TENSION V1 = 24 VDC t1 = 6 ms V 2 = 5 VDC ELECTRICAL PORT CONNECTION Qn = 34 N//min C = 7.14 N(/min bar b = 0.464 COLOUR 4 CONTROLS BLACK COMMON BROWN 1 -2 RED 3-4 ORANGE 5-6 YELLOW 7-8 P...

Open the catalog to page 4
