MATRIX Pneumatic Division - 750 Series compact solenoid multi-valve | 2/2-3/2 NC-NO - MATRIX mechatronics - #29

Text version of the page

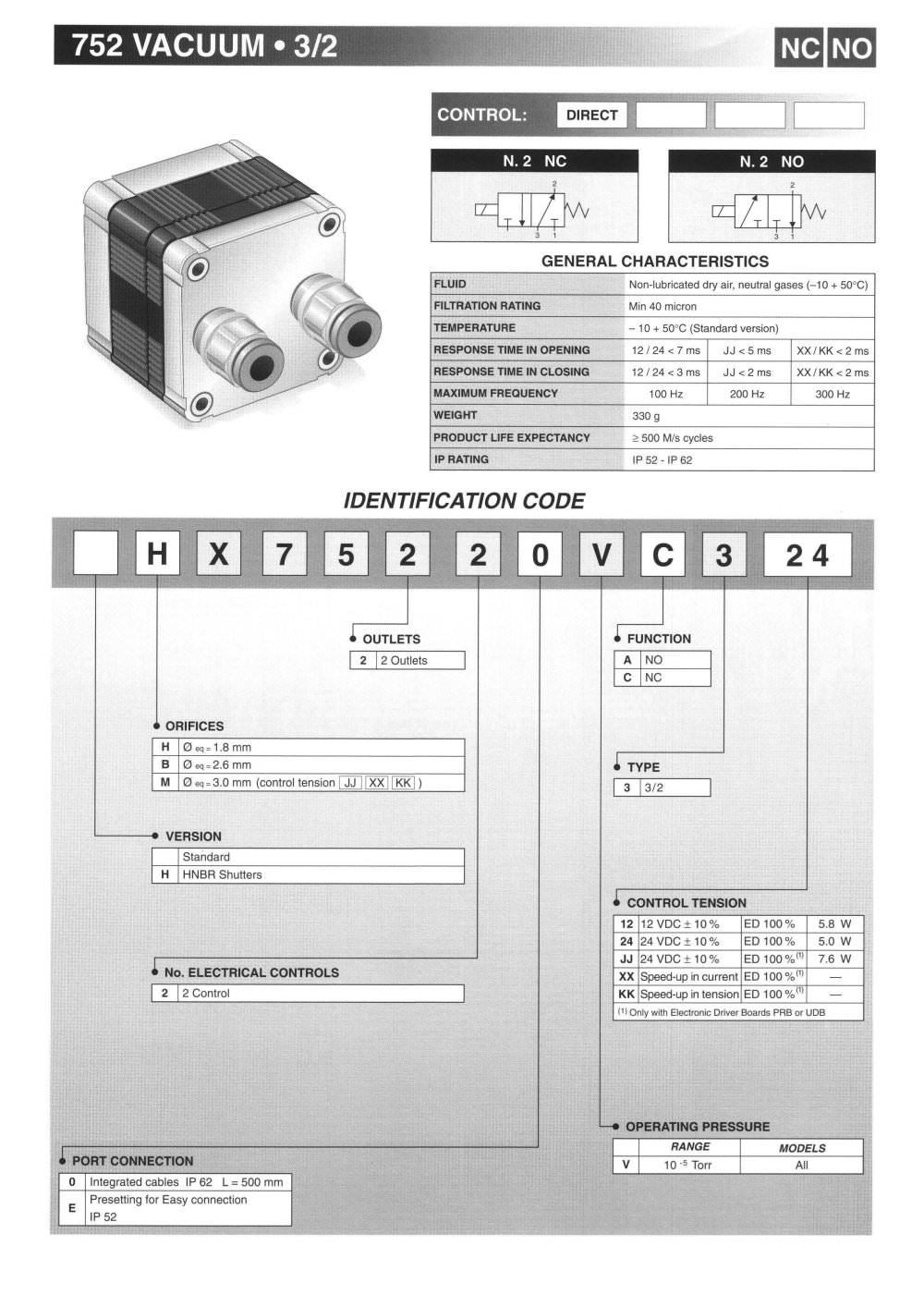

3/2 NC NO CONTROL N. 2 NO 2 nz A T " w 3 1 GENERAL CHARACTERISTICS FLUID Non-lubricated dry air, neutral gases (-10 + 50°C) FILTRATION RATING Min 40 micron TEMPERATURE -10 + 50=C (Standard version) RESPONSE TIME IN OPENING 12 / 24 < 7 ms JJ < 5 ms XX/KK<2ms RESPONSE TIME IN CLOSING 12/24 < 3 ms J J < 2 ms XX/KK<2ms MAXIMUM FREQUENCY 100 Hz 200 Hz 300 Hz WEIGHT 330 g PRODUCT LIFE EXPECTANCY > 500 M/s cycles IP RATING . IP52-IP62 IDENTIFICATION CODE — OUTLETS FUNCTION 2 2 Outlets A NO C NC * ORIFICES H 0 eq = 1.8 mm 0 eq = 2.6 mm * TYPE 0 eq = 3.0 mm (control tension fJJl [XX] [KK]} 3 3/2 VERSION Standard HNBR Shutters CONTROL TENSION No, ELECTRICAL CONTROLS 12 12 VDC ± 10% ED 100 % 5.8 W 24 24 VDC ±10% ED 100% 5.0 W JJ 24 VDC ±10% ED 100%(1) 7.6 W XX Speed-up in current ED 100%(1) — KK Speed-up in tension ED 100%(1) — (1) Only with Electronic Driver Boards PRB or UDB 2 Control OPERATING PRESSURE PORT CONNECTION RANGE MODELS V 10 5 Torr AH Integrated cables IP 62 L = 500mm Presetting for Easy connection IP52 MHUMHEBRMHRHEHHwi
