Text version of the page

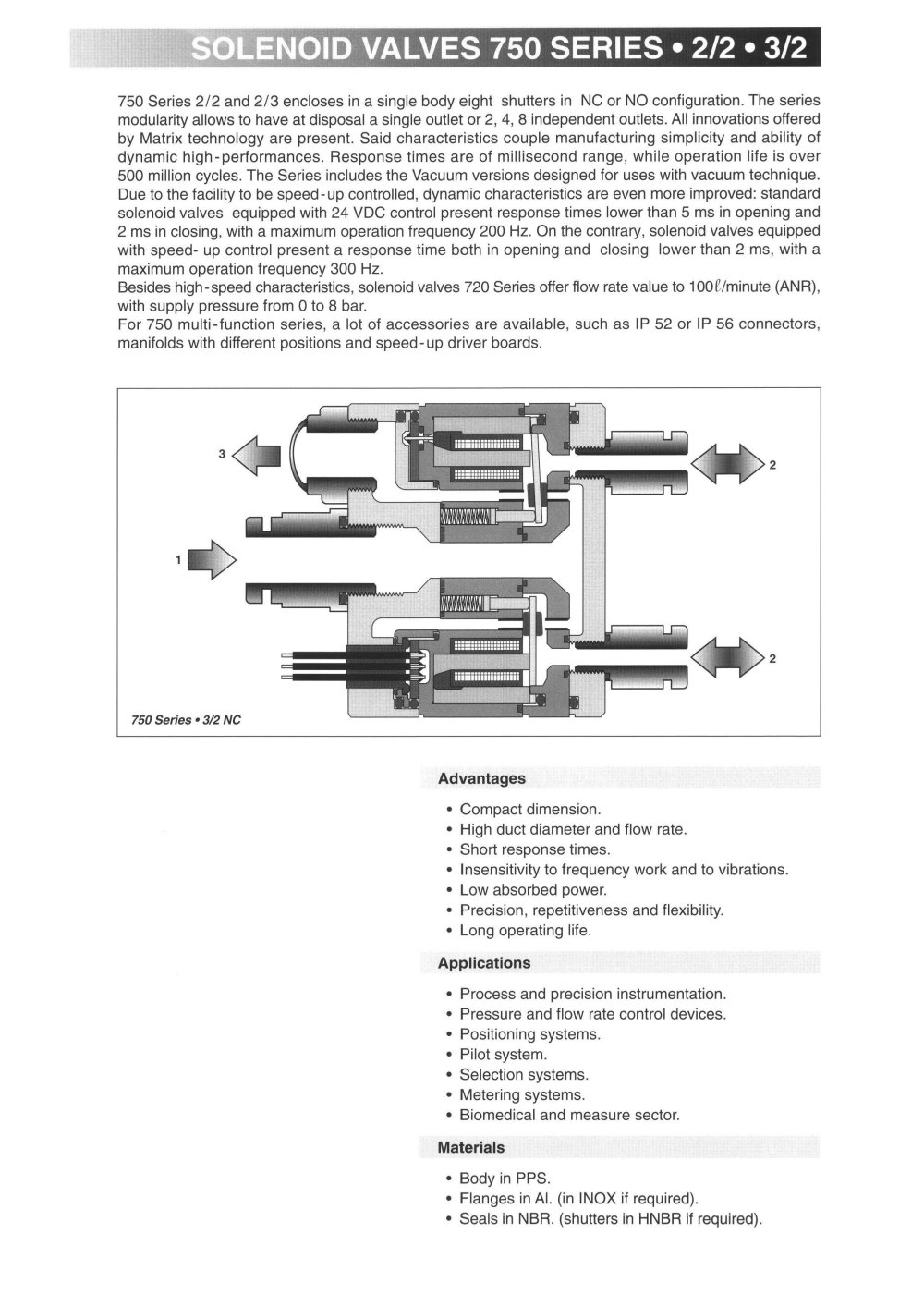

SOLENOID VALVES 750 SERIES • 2/2 • 3/2 750 Séries 2/2 and 2/3 encloses in a single body eighl shutters in NC or NO configuration. The senes modularity allows to have at disposai a single outlet or 2, 4,8 indépendant outlets. Ail innovations otfered by Matrix technology are présent. Said characleristics couple manufacturing sirnplicity and ability of dynamic high-performances. Response times are of millisecond range, while opération life is over 500 million cycles. The Séries includes the Vacuum versons designed for uses with vacuum technique. Due to the facility to be speed-up controlled, dynamic characleristics are even more improved: standard solenoid valves equipped with 24 VDC control présent response times lower than 5 ms in opening and 2 ms in closing. with a maximum opération frequency 200 Hz. On the contrary. solenoid valves equipped with speed- up control présent a response time both in opening and closing lower than 2 ms, with a maximum opération frequency 300 Hz. BeskJes high-speed characteristics. solenoid valves 720 Séries offerflow rate value lo 1001/minute (ANR). with suppty pressure from 0 to 8 bar For 750 multi-function séries, a lot of accessories are available, such as IP 52 or IP 56 connectors, mamfolds with différent positions and speed-up driver boards. Advantages • Compact dimension. • High duct diameter and flow rate. • Short response times. • Insensitivity to frequency work and to vibrations. • Low absorbed power. • Précision, repeMiveness and flexibilité • Long operating life- Applications • Process and précision instrumentation. • Pressure and flow rate control devices. • Positioning Systems. • Pilot System. • Sélection Systems. • Metertng Systems. • Biomédical and measure sector. Materials • Body in PPS- • Flanges in AL (in INOX if requiredK • Seals in NBR (shutters in HNBR it required).
