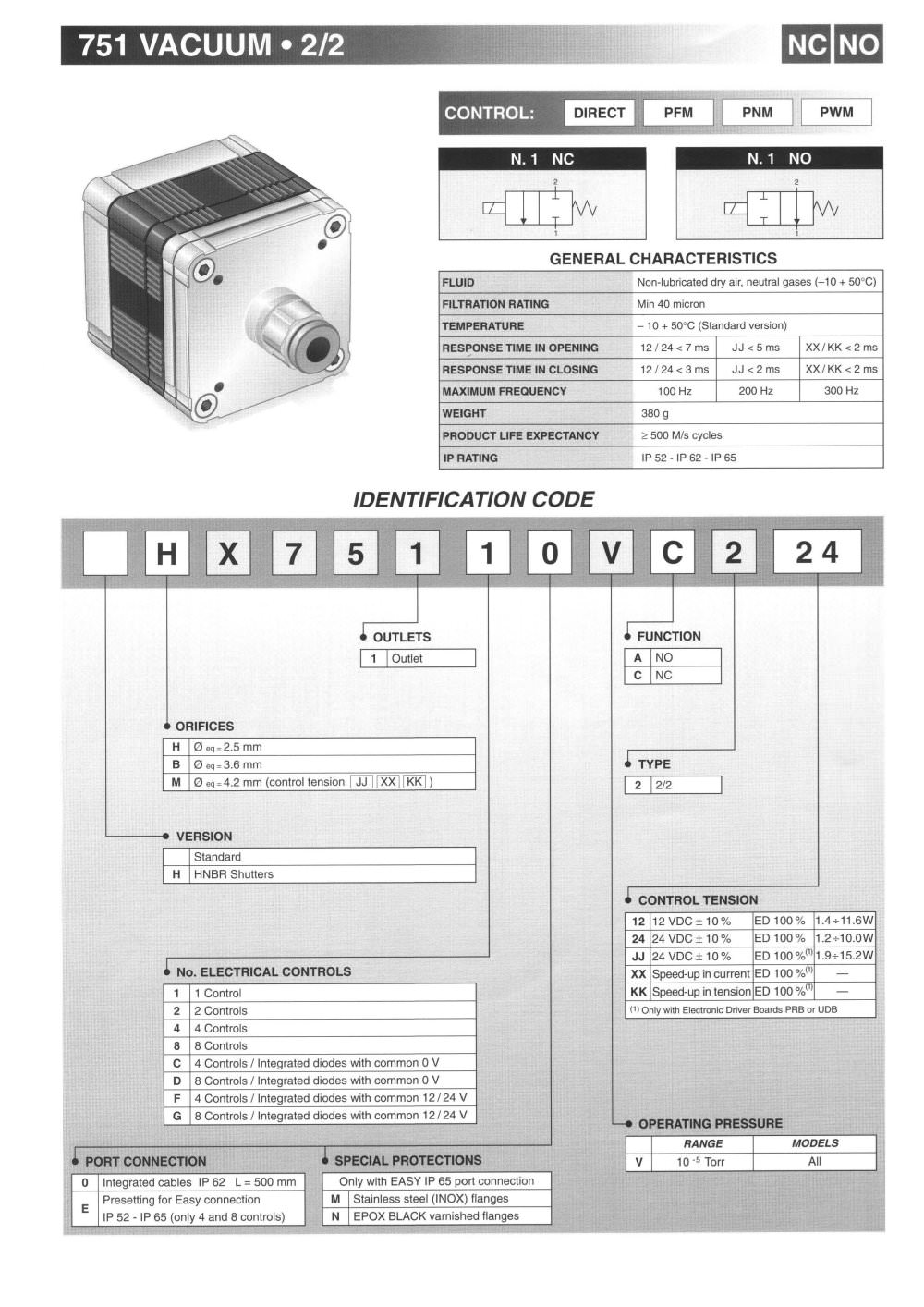

751 VACUUM • 2/2 NC NO CONTROL: ML PFM PNM PWM N. 1 NC N. 1 NO GENERAL CHARACTERISTICS FLUID Non-lubricated dry air, neutral gases (-10 + 50°C) F1LTRATION RATING Min 40 micron TEMPERATURE -10 + 50°C (Standard version) RESPONSE TIME IN OPENING 12 / 24 < 7 ms JJ < 5 ms XX/KK<2ms RESPONSE TIME IN CLOSING 12 / 24 < 3 ms JJ < 2 ms XX/KK<2ms MAXIMUM FREQUENCY 100 Hz 200 Hz 300 Hz WEIGHT 380 g PRODUCT LIFE EXPECTANCY > 500 M/s cycles IP RATING IP52-IP62-IP65 IDENTIFICATION CODE H X 1 1 0 V c 24 I OUTLETS FUNCTION 1 Outlet A NO C NC ORIFICES H O < = 2.5 mm 0 eq = 3.6 mm TYPE 0 eg = 4.2 mm (control tension |~JJl [XX] |"KKl ) 2 2/2 -• VERSION Standard HNBR Shutters CONTROL TENSION No. ELECTRICAL CONTROLS 12 12 VDC ± 10% ED 100 % 1.4 + 11.6W 24 24 VDC ±10% ED 100 % 1.2H-10.0W JJ 24 VDC ±10% ED 100%(1) 1.9+15.2W XX Speed-up in current ED 100%(1) — KK Speed-up in tension ED 100%(" — 0) Only with Electronic Driver Boards PRB or UDB 1 1 Control 2 2 Controls 4 4 Controls 8 8 Controls C 4 Controls / Integrated diodes with common 0 V D 8 Controls / Integrated diodes with common 0 V F 4 Controls / Integrated diodes with common 12/24 V G 8 Controls / Integrated diodes with common 12 / 24 V OPERATING PRESSURE PORT CONNECTION SPECIAL PROTECTIONS RANGE MODELS V 10 5 Torr AU 0 Integrated cables IP 62 L = 500mm Only with EASY IP 65 port connection Presetting for Easy connection M Stainless steel (INOX) flanges t IP 52 - IP 65 (only 4 and 8 controls) N EPOX BLACK varnished flanges
