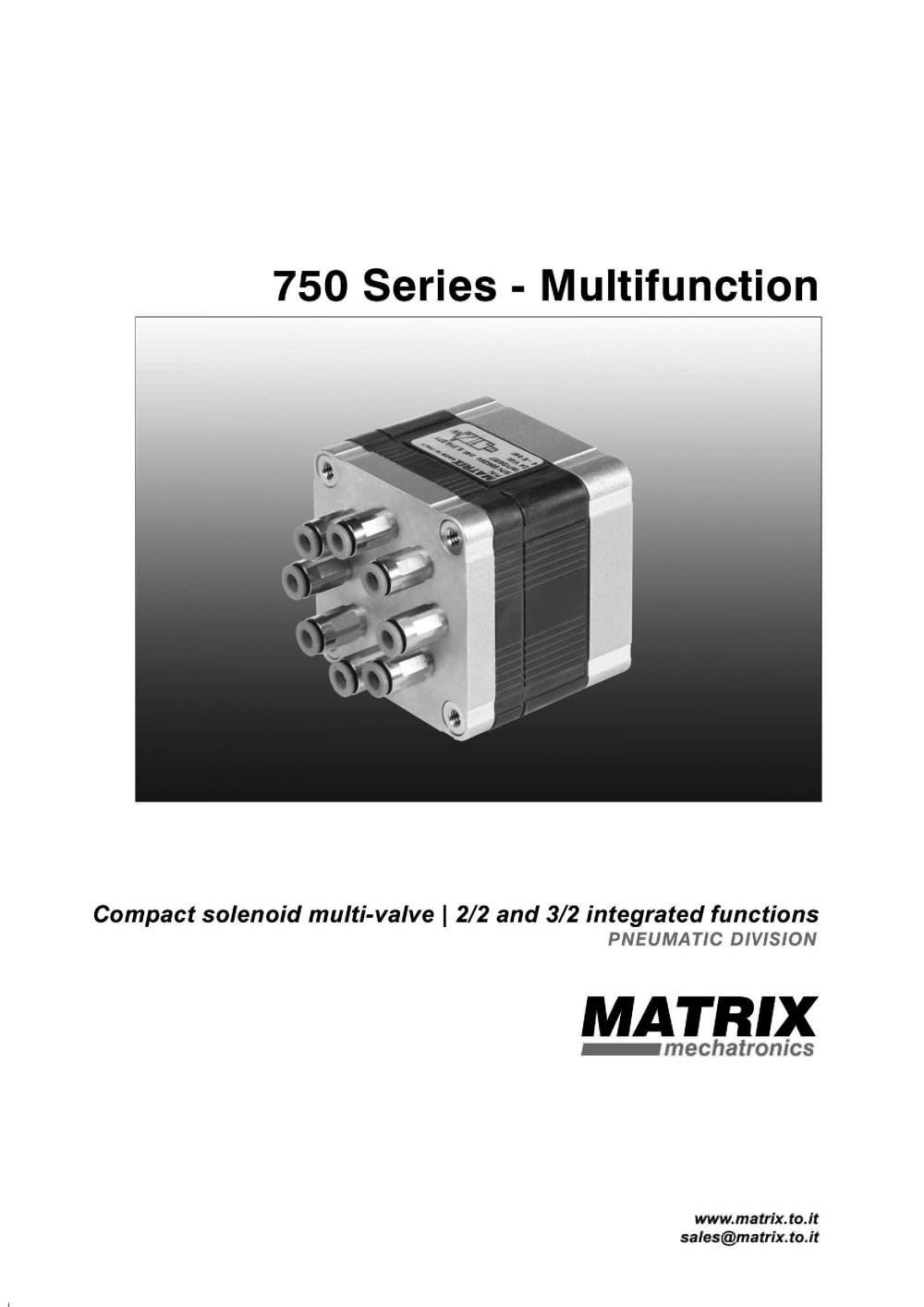

750 Sries - Multifunction Compact solenoid multi-valve \ 2/2 and 3/2 integrated functions PNEUMATIC DIVISION MATRIX ^^^mmechatronics www. matrix. to. it sales@matrix. to.it

.V. 750 MULTI - FUNCTION SERIES 2/2 - 3/2 750 multi-function Sթries encloses 8 separately controlled shutters in a single body. Its base version has 8 outputs with the following configurations: four 3/2 NC outlets four 3/2 NC outlets. Օ two 2/2 NC outlets. two 2/2 NO inverted flow outlets. The extrժme modularity of 750 Sries allows the arrangement of an almost unlimited number of customized configurations. For this aim, contact you local dealer or MATRIX technical staff. 750 multi-function Sries is particularly fit for the control of intricate pneumatic system, where diff驩rent functions are...

758 MULTI-FUNCTION 2/2 - 3/2 NC-NO 0 48 AWG 24 L = 500 mm VIEW A 9- 0 M5 a G =1 MAX MAX |44 VIEW A bb 2/2 NC 3-7 3/2 NC 1-2-5-6 2/2 NA 4-8 ACCESSORIES Rթfrence Quantity Description 1 1 PUSH-IN FITTING 0 10 2 8 PUSH-IN FITTING 0 4/3 co 1 SILENCER NOTE: Inch size available M5 CHARACTERISTICS OF THE ELECTRICAL CONTROL - MODELS KK -P100% ELECTRICAL PORT CONNECTION COLOUR OUTLET BLACK 1 - 2 BROWN 1 3/2 NC RED 2 3/2 NC ORANGE 3 2/2 NC YELLOW 4 2/2 NAd) BLACK 3 - 4 GREEN 5 3/2 NC BLUE 6 3/2 NC VIOLET 7 2/2 NC GREY 8 2/2 NA(1) BLACK COMMON - V2 N.B. KK MODELS ARE CONTROLLED IN TENSION V 1 = 24 VDC t...
