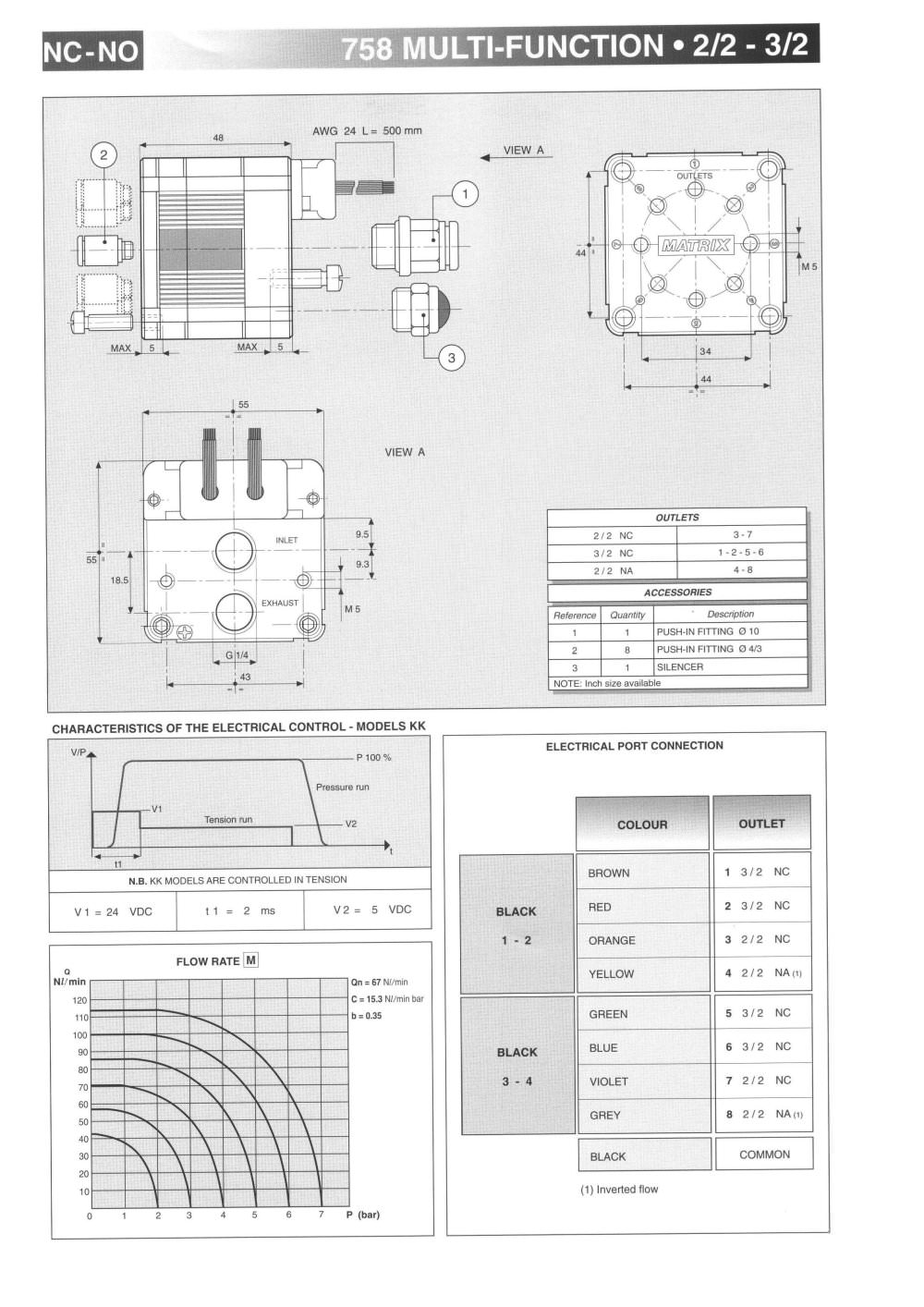

758 MULTI-FUNCTION • 2/2 - 3/2 NC-NO 0 48 AWG 24 L = 500 mm VIEW A 9- 0 M5 a G =1 MAX MAX |44 VIEW A bb 2/2 NC 3-7 3/2 NC 1-2-5-6 2/2 NA 4-8 ACCESSORIES Référence Quantity Description 1 1 PUSH-IN FITTING 0 10 2 8 PUSH-IN FITTING 0 4/3 co 1 SILENCER NOTE: Inch size available M5 CHARACTERISTICS OF THE ELECTRICAL CONTROL - MODELS KK -P100% ELECTRICAL PORT CONNECTION COLOUR OUTLET BLACK 1 - 2 BROWN 1 3/2 NC RED 2 3/2 NC ORANGE 3 2/2 NC YELLOW 4 2/2 NAd) BLACK 3 - 4 GREEN 5 3/2 NC BLUE 6 3/2 NC VIOLET 7 2/2 NC GREY 8 2/2 NA(1) BLACK COMMON - V2 N.B. KK MODELS ARE CONTROLLED IN TENSION V 1 = 24 VDC t 1 = 2 ms V2 = 5 VDC FLOW RATE Mj Qn = 67 N//min C = 15.3 N//minbar b = 0.35 (1) Inverted flow P (bar)
