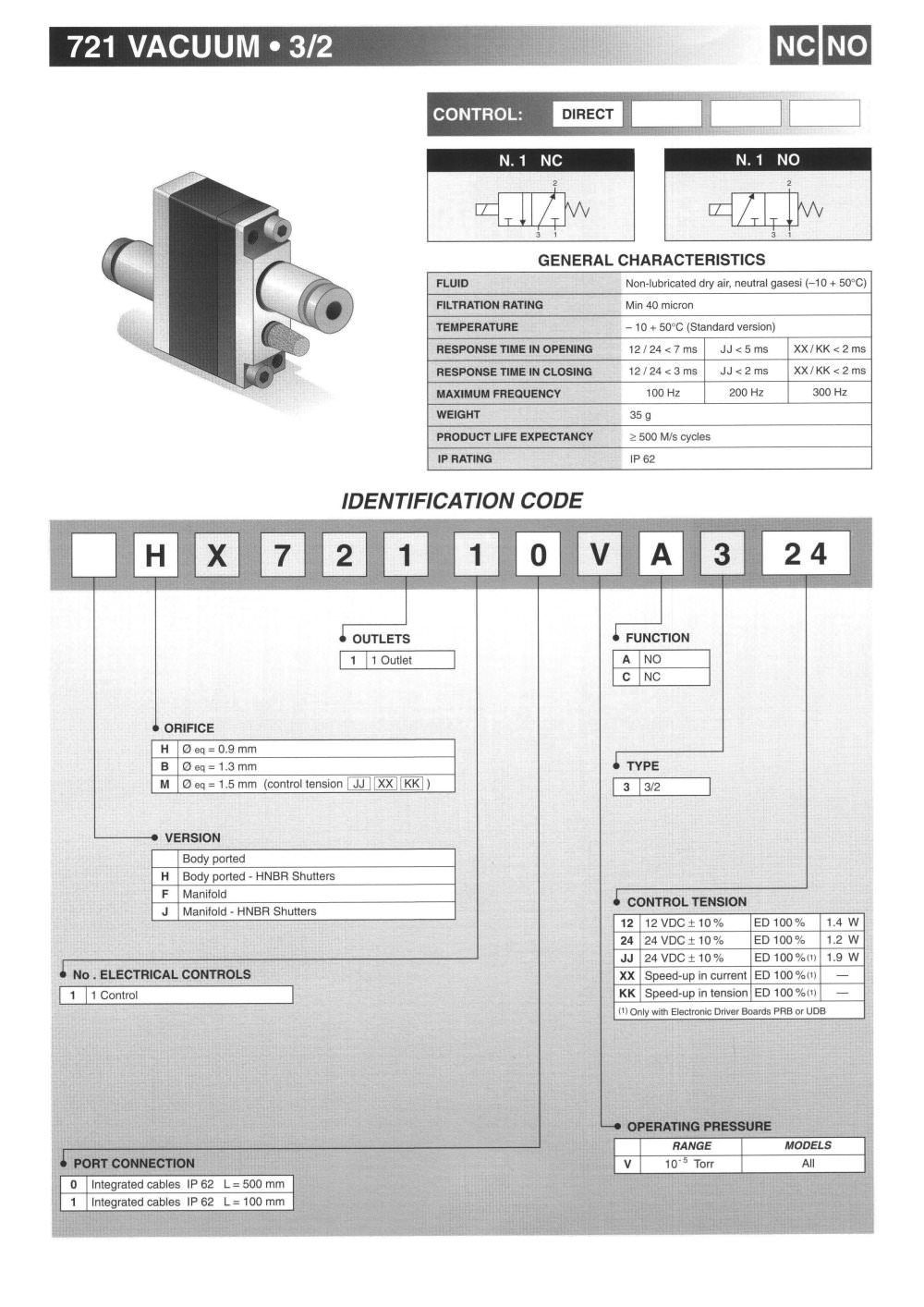

721 VACUUM • 3/2 ■MB NC NO CONTROL: EE N. 1 NO 2 UZ A T ' w 3 1 N. 1 NC GENERAL CHARACTERISTICS FLUID Non-lubricated dry air, neutral gasesi (-10 + 50°C) F1LTRATION RATING Min 40 micron TEMPERATURE - 10 + 50°C (Standard version) RESPONSE TIME IN OPENING 12 / 24 < 7 ms JJ < 5 ms XX/KK<2ms RESPONSE TIME IN CLOSING 12/24<3ms J J < 2 ms XX/KK<2ms MAXIMUM FREQUENCY 100 Hz 200 Hz 300 Hz WEIGHT 35 g PRODUCT LIFE EXPECTANCY > 500 M/s cycles IP RATING IP62 IDENTIFICATION CODE H 1 1 0 V A3 OUTLETS FUNCTION 1 1 Outlet A NO C NC * ORIFICE H 0 eq = 0.9 mm B 0 eq = 1.3 mm M 0 eq = 1.5 mm (control tension [jJ] [XX] [KK] ) • VERSION Body ported H Body ported - HNBR Shutters F Manifold J Manifold - HNBR Shutters TYPE 3 3/2 CONTROL TENSION 12 12 VDC ±10% ED 100 % 1.4 W 24 24 VDC ±10% ED 100 % 1.2 W JJ 24 VDC ±10% ED 100 %(D 1.9 W XX Speed-up in current ED 100 %d) — KK Speed-up in tension ED 100 %d) — 0) Only with Electronic Driver Boards PRB or UDB No . ELECTRICAL CONTROLS 1 1 Control OPERATING PRESSURE PORT CONNECTION RANGE MODELS V 10"5 Torr Ail 0 Integrated cables IP 62 L = 500 mm 1 Integrated cables IP 62 L = 100 mm mm
