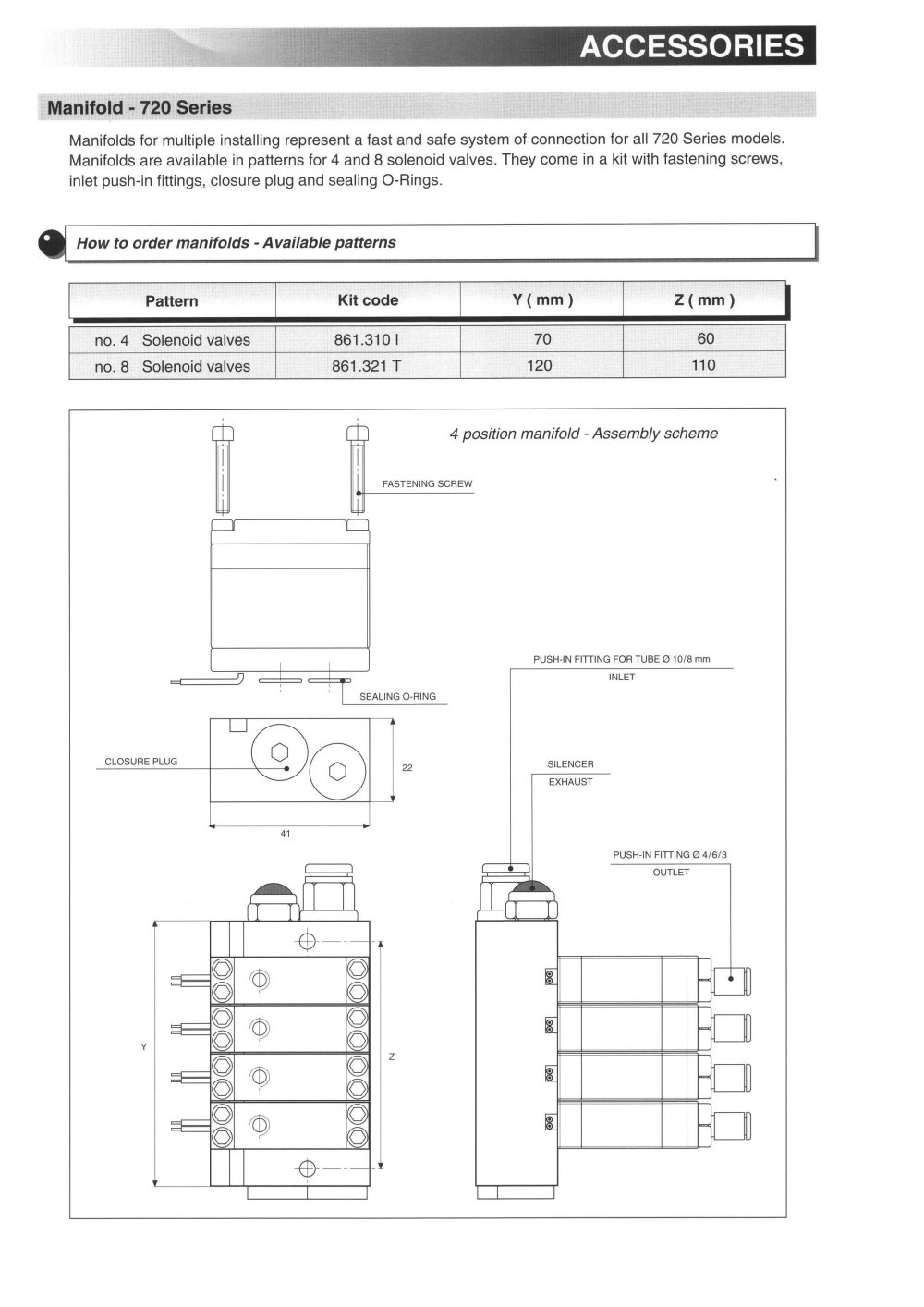

ACCESSORIES Manifold - 720 Séries Manifolds for multiple installing represent a fast and safe System of connection for ail 720 Séries models. Manifolds are available in patterns for 4 and 8 solenoid valves. They corne in a kit with fastening screws, inlet push-in fittings, closure plug and sealing O-Rings. How to order manifolds - Available patterns Pattern Kit code Y (mm) Z ( mm ) no. 4 Solenoid valves 861.310 I 70 60 no. 8 Solenoid valves 861.321 T 120 110 4 position manifold - Assembly scheme FASTENING SCREW
