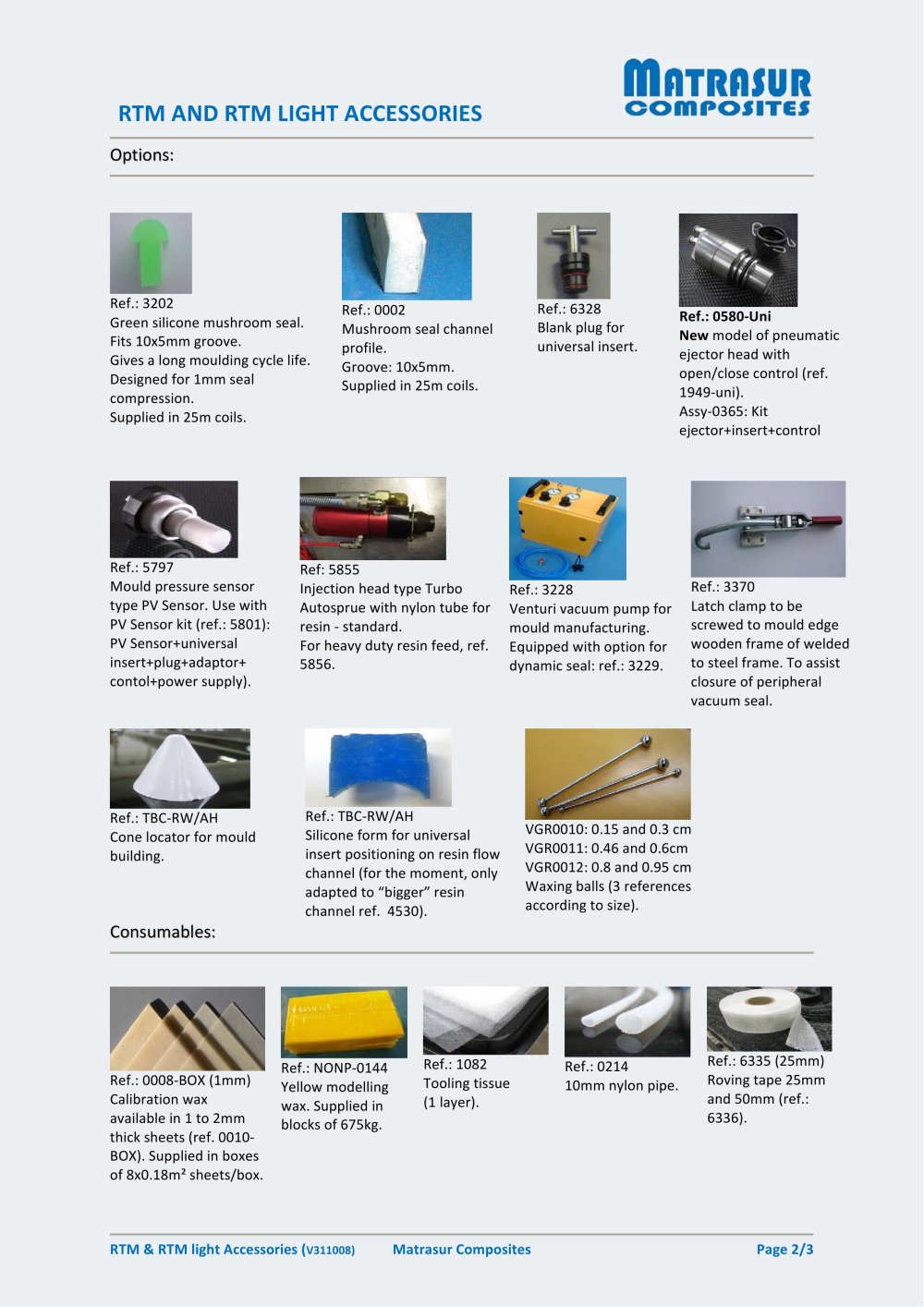

RTM AND RTM LIGHT ACCESSORIES
|
fllflTUMUR
COmPOfITEl
|
|||||||||
|
|
||||||||||
|
Options:
|
||||||||||
|
|
||||||||||
 |
 |
|||||||||
|
Ref.:3202
Green silicone mushroom seal. Fits 10x5mm groove. Givesalongmoulding cycle life. Designed for 1mm seal compression. Suppliedin25m coils.
|
|
|||||||||
|
Ref.:0002
Mushroom sealchannel profile.
Groove: 10x5mm. Supplied in 25m coils.
|
Ref.: 6328 Blankplugfor universal insert.
|
Réf.: 0580-Uni
Newmodelofpneumatic ejector head with open/close control (ref. 1949-uni). Assy-0365: Kit ejector+insert+control
|
||||||||
|
|
||||||||||
 |
 |
 |
 |
|||||||
|
Ref.:5797
Mould pressure sensor type PV Sensor. Use with PV Sensorkit(ref.:5801): PV Sensor+universal insert+plug+adaptor+ contol+powersupply).
|
Ref: 5855
Injection headtype Turbo
Autosprue with nylon tube for
resin - standard.
For heavy duty resin feed, ref.
5856.
|
|||||||||
|
Ref.: 3228
Venturi vacuum pumpfor mould manufacturing. Equipped with option for dynamic seal: ref.:3229.
|
Ref.:3370
Latch clamp to be
screwed to mould edge
woodenframeofwelded
to steel frame. To assist
closure of peripheral
vacuumseal.
|
|||||||||
|
|
||||||||||
 |
 |
 |
||||||||
|
Ref.: TBC-RW/AH Cone locatorformould building.
|
Ref.: TBC-RW/AH Siliconeform foruniversal insert positioning on resin flow channel (forthe moment, only adapted to "bigger" resin channel ref. 4530).
|
|||||||||
|
VGR0010:0.15and0.3cm VGR0011: 0.46 and 0.6cm VGR0012: 0.8 and 0.95 cm Waxing balls (3 references according to size).
|
||||||||||
|
|
||||||||||
|
Consumables:
|
||||||||||
|
|
||||||||||
 |
||||||||||
|
Ref.:0008-BOX(1mm) Calibration wax available in1to2mm thick sheets (ref. 0010-BOX). Supplied in boxes of8x0.18m2sheets/box.
|
Ref.: NONP-0144 Yellowmodelling wax. Supplied in blocks of 675kg.
|
Ref.: 1082 Tooling tissue (1layer).
|
Ref.:0214 10mm nylon pipe.
|
Ref.:6335(25mm) Roving tape 25mm and50mm (ref.: 6336).
|
||||||
|
|
||||||||||
|
RTM & RTM light Accessories (V311008) Matrasur Composites
|
Page 2/3
|
|||||||||
|
|
||||||||||
