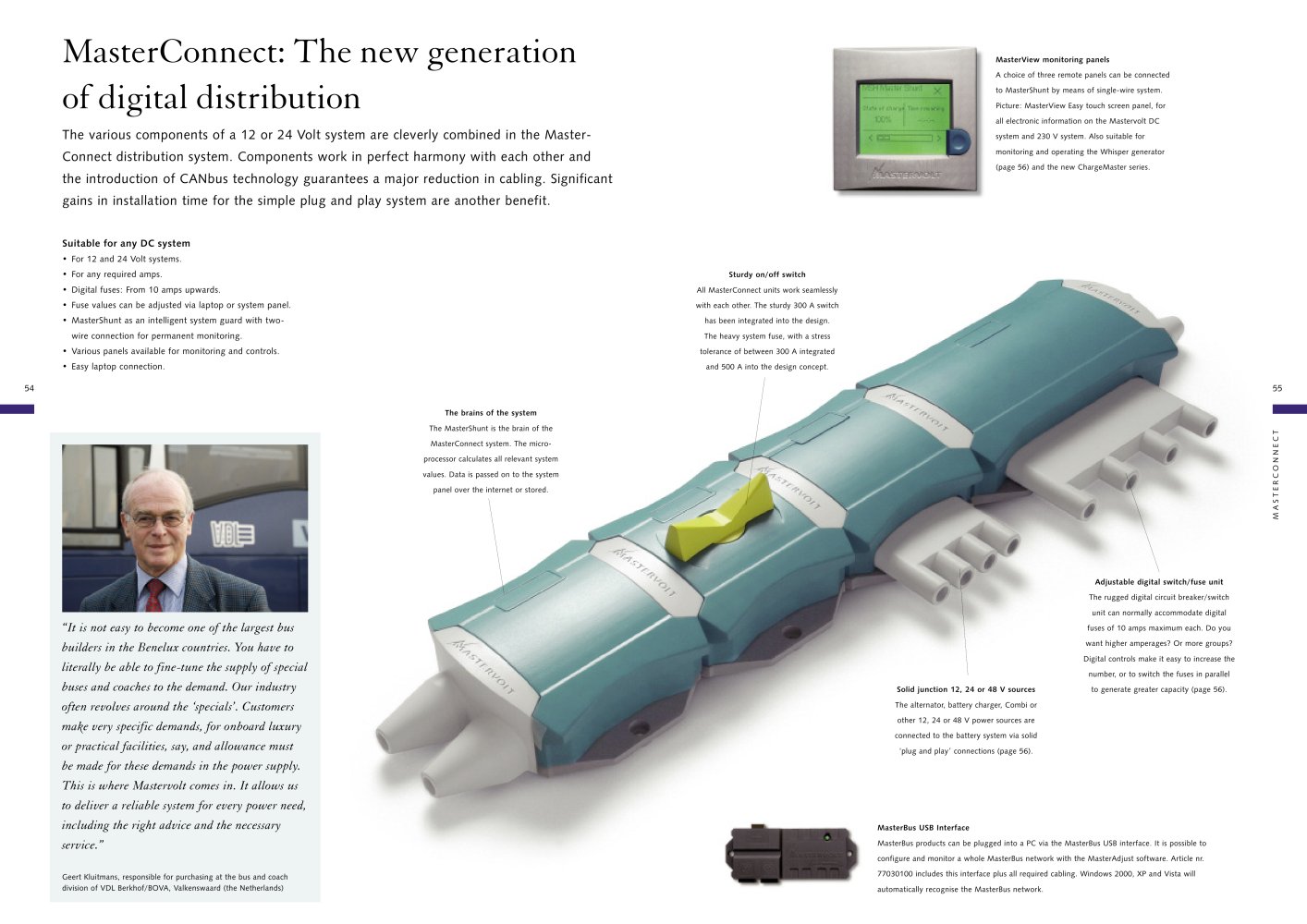

| MasterConnect: The new generation of digital distribution The various components of a 12 or 24 Volt system are cleverly combined in the Master-Connect distribution system. Components work in perfect harmony with each other and the introduction of CANbus technology guarantees a major reduction in cabling. Significant gains in installation time for the simple plug and play system are another benefit. | |||||||||||||||||||||||||
| MasterView monitoring panels A choice of three remote panels can be connected to MasterShunt by means of single-wire system. Picture: MasterView Easy touch screen panel, for all electronic information on the Mastervolt DC system and 230 V system. Also suitable for monitoring and operating the Whisper generator (page 56) and the new ChargeMaster series. | |||||||||||||||||||||||||
| Suitable for any DC system • For 12 and 24 Volt systems. • For any required amps. • Digital fuses: From 10 amps upwards. • Fuse values can be adjusted via laptop or system panel. • MasterShunt as an intelligent system guard with two-wire connection for permanent monitoring. • Various panels available for monitoring and controls. • Easy laptop connection. | |||||||||||||||||||||||||
| Sturdy on/off switch All MasterConnect units work seamlessly with each other. The sturdy 300 A switch has been integrated into the design. The heavy system fuse, with a stress tolerance of between 300 A integrated and 500 A into the design concept. | |||||||||||||||||||||||||
| 54 | 55 | ||||||||||||||||||||||||
| The brains of the system The MasterShunt is the brain of the MasterConnect system. The microprocessor calculates all relevant system values. Data is passed on to the system panel over the internet or stored. | |||||||||||||||||||||||||
| Adjustable digital switch/fuse unit The rugged digital circuit breaker/switch unit can normally accommodate digital fuses of 10 amps maximum each. Do you want higher amperages? Or more groups? Digital controls make it easy to increase the number, or to switch the fuses in parallel to generate greater capacity (page 56). | |||||||||||||||||||||||||
| "It is not easy to become one of the largest bus builders in the Benelux countries. You have to literally be able to fine-tune the supply of special buses and coaches to the demand. Our industry often revolves around the 'specials'. Customers make very specific demands, for onboard luxury or practical facilities, say, and allowance must be made for these demands in the power supply. This is where Mastervolt comes in. It allows us to deliver a reliable system for every power need, including the right advice and the necessary service." | |||||||||||||||||||||||||
| Solid junction 12, 24 or 48 V sources The alternator, battery charger, Combi or other 12, 24 or 48 V power sources are connected to the battery system via solid 'plug and play' connections (page 56). | |||||||||||||||||||||||||
| MasterBus USB Interface MasterBus products can be plugged into a PC via the MasterBus USB interface. It is possible to configure and monitor a whole MasterBus network with the MasterAdjust software. Article nr. 77030100 includes this interface plus all required cabling. Windows 2000, XP and Vista will automatically recognise the MasterBus network. | |||||||||||||||||||||||||
| Geert Kluitmans, responsible for purchasing at the bus and coach division of VDL Berkhof/BOVA, Valkenswaard (the Netherlands) | |||||||||||||||||||||||||
