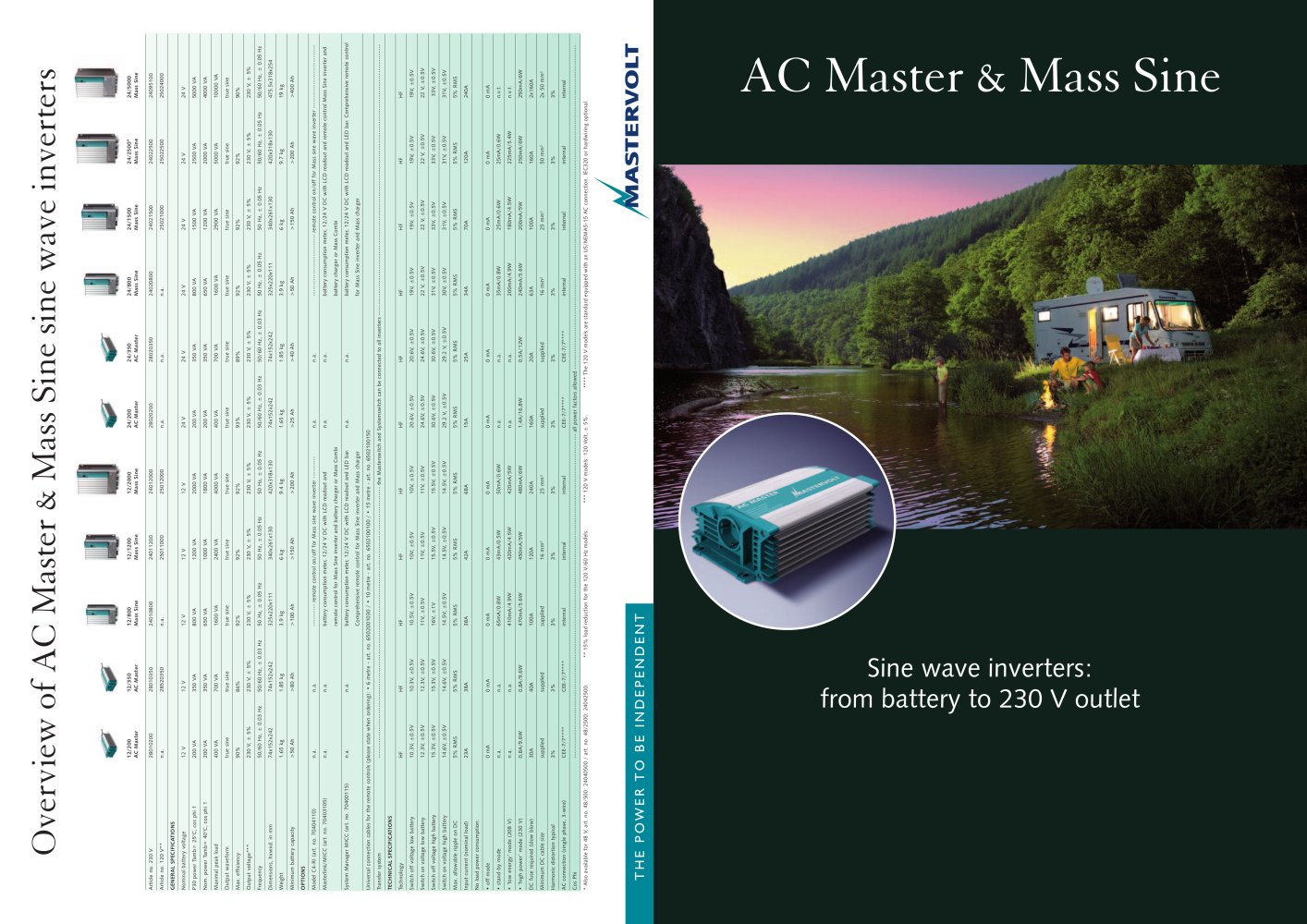

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | Overview of AC Master & Mass Sine sine wave inverters | | | | | | | | | | ■ I | | | | | | | | | | | | | | | | | | | | | | | | | | | | 12/200 | 12/350 | 12/800 | 12/1200 | 12/2000 | 24/200 | 24/350 | 24/800 | 24/1500 | 24/2500« | 24/5000 | | | | | AC Master | AC Master | Mass Sine | Mass Sine | Mass Sine | AC Master | AC Master | Mass Sine | Mass Sine | Mass Sine | Mass Sine | | | | Article no 230 V | 28010200 | 28010350 | 24010800 | 24011200 | 24012000 | 28020200 | 28020350 | 24020800 | 24021500 | 24022500 | 24095100 | | | | Article no 120 V## | n a | 28520350 | n a | 25011000 | 25012000 | n a | n a | n a | 25021000 | 25022500 | 25024000 | | | | GENERAL SPECIFICATIONS | | | | Nominal battery voltage | 12 V | 12 V | 12 V | 12 V | 12 V | 24 V | 24 V | 24 V | 24 V | 24 V | 24 V | | | | P30 power Tamb= 25°C, cos phi 1 | 200 VA | 350 VA | 800 VA | 1200 VA | 2000 VA | 200 VA | 350 VA | 800 VA | 1500 VA | 2500 VA | 5000 VA | | | | Nom power Tamb= 40°C, cos phi 1 | 200 VA | 350 VA | 650 VA | 1000 VA | 1800 VA | 200 VA | 350 VA | 650 VA | 1200 VA | 2000 VA | 4000 VA | | | | Maximal peak load | 400 VA | 700 VA | 1600 VA | 2400 VA | 4000 VA | 400 VA | 700 VA | 1600 VA | 2900 VA | 5000 VA | 10000 VA | | | | Output waveform | true sine | true sine | true sine | true sine | true sine | true sine | true sine | true sine | true sine | true sine | true sine | | | | Max efficiency | 90% | 86% | 92% | 92% | 92% | 93% | 89% | 92% | 92% | 92% | 90% | | | | Output voltage*** | 230 V ± 5% | 230 V, ± 5% | 230 V, ± 5% | 230 V, ± 5% | 230 V, ± 5% | 230 V ± 5% | 230 V, ± 5% | 230 V ± 5% | 230 V, ± 5% | 230 V ± 5% | 230 V, ± 5% | | | | Frequency | 50/60 Hz, ± 0 03 Hz | 50/60 Hz, ± 0.03 Hz 50 Hz, ± 0 05 Hz | 50 Hz, ± 0 05 Hz | 50 Hz, ± 0 05 Hz | 50/60 Hz, ± 0 03 Hz | 50/60 Hz, ± 0 03 Hz | 50 Hz, ± 0 05 Hz | 50 Hz, ± 0 05 Hz | 50/60 Hz, ± 0 05 Hz | 50/60 Hz, ± 0 05 Hz | | | | Dimensions, hxwxd in mm | 74x152x242 | 74x152x242 | 325x220x111 | 340x261x130 | 420x318x130 | 74x152x242 | 74x152x242 | 325x220x111 | 340x261x130 | 420x318x130 | 475.5x318x254 | | | | Weight | 1.65 kg | 1 85 kg | 3 9 kg | 6 kg | 9 4 kg | 1 65 kg | 1 85 kg | 3 9 kg | 6 kg | 9 7 kg | 19 kg | | | | Minimum battery capacity | >50 Ah | >80Ah | >100 Ah | >150Ah | >200 Ah | >25 Ah | >40 Ah | >50 Ah | >150 Ah | >200Ah | >400 Ah | | | | OPTIONS | | | | Model C4-RI (art no 70404110) | n a | n a | ----------remote control on/off for Mass sine wave inverter---------- | n a | n a | | --- remote control on/off for Mass sine wave inverter -- | | | | | Masterlink/MICC (art no 70403105) | n a | n a | battery consumption meter, 12/24 V DC with LCD readout and | n a | n a | battery consumption meter, 12/24 V DC with LCD readout and remote control Mass Sine inverter and | | | | | | | remote control for Mass Sine inverter and battery charger or Mass Combi | | | battery charger or Mass Combi | | | | | | System Manager MICC (art no 70400115) | n a | n a | battery consumption meter, 12/24 V DC with LCD readout and LED bar | n a | n a | battery consumption meter, 12/24 V DC with LCD readout and LED bar Comprehensive remote control | | | | | | | Comprehensive remote control for Mass Sine inverter and Mass charger | | | for Mass Sine inverter and Mass charger | | | | | | Universal connection cables for the remote controls (please state when ordering) | • 6 metre - art no | 6502001030 / • 10 metre | art no 6502100100 / | 15 metre - art no 6502100150 | | | | | | | | | Transfer system | | | | | the Masterswitch | and Svstemswitch can be connected to all inverters | | | | | | | | | | | | | | | | | | | | | | TECHNICAL SPECIFICATIONS | | | | Technology | HF | HF | HF | HF | HF | HF | HF | HF | HF | HF | HF | | | | Switch off voltage low battery | 10.3V, ±0 5V | 103V ±05V | 10.5V, ±05V | 10V, ±05V | 10V ±0 5V | 20 6V, ±0 5V | 20 6V ±0 5V | 19V, ±0 5V | 19V ±0 5V | 19V, ±0 5V | 19V ±0 5V | | | | Switch on voltage low battery | 12.3V, ±0 5V | 12.3V, ±05V | 11V, ±0 5V | 11V, ±0 5V | 11V ±0 5V | 24 6V, ±0 5V | 24 6V ±0 5V | 22 V, ±0 5V | 22 V, ±0 5V | 22 V, ±0 5V | 22 V ±0 5V | | | | Switch off voltage high battery | 15.3V, ±0.5V | 15.3V ±0.5V | 16V, ±1V | 15.5V, ±0.5V | 15.5V, ±0.5V | 30 6V, ±0 5V | 30 6V ±0 5V | 31V, ±0 5V | 33V ±0 5V | 33V, ±0 5V | 33V, ±0 5V | | | | Switch on voltage high battery | 14.6V, ±0 5V | 14.6V, ±0 5V | 14.5V, ±0.5V | 14.5V, ±0.5V | 14.5V ±0.5V | 29 2 V ±0 5V | 29 2 V, ±0 5V | 30V, ±0 5V | 31V ±0 5V | 31V, ±0 5V | 31V ±0 5V | | | | Max allowable ripple on DC | 5% RMS | 5% RMS | 5% RMS | 5% RMS | 5% RMS | 5% RMS | 5% RMS | 5% RMS | 5% RMS | 5% RMS | 5% RMS | | | | Input current (nominal load) | 23A | 38A | 38A | 42A | 68A | 15A | 25A | 34A | 70A | 120A | 240A | | | | No load power consumption: | | | | • off mode | 0 mA | 0 mA | 0 mA | 0 mA | 0 mA | 0 mA | 0 mA | 0 mA | 0 mA | 0 mA | 0 mA | | | | • stand-by mode | n a | n a | 65mA/0 8W | 43IT1A/0.5W | 50mA/0 6W | n a | n a | 35IT1A/0.8W | 25IT1A/0.6W | 25IT1A/0.6W | n vt | | | | • 'low energy' mode (208 V) | n a | n a | 410mA/4.9W | 420IT1A/4.5W | 420IT1A/5W | n a | n a | 200IT1A/49W | 180IT1A/4 5W | 225IT1A/54W | n vt | | | | • 'high power' mode (230 V) | 0,8A/9,6W | 0,8A/9,6W | 470IT1A/5 6W | 450IT1A/5W | 480IT1A/6W | 1,4A/16,8W | 0.5A/12W | 240IT1A/5.6W | 200IT1A/5W | 25O1T1A/6W | 250IT1A/6W | | | | DC fuse required (slow blow) | 30A | 40A | 100A | 120A | 240A | 160A | 20A | 63A | 100A | 160A | 2X160A | | | | Minimum DC cable size | supplied | supplied | supplied | 16 mm2 | 25 mm2 | supplied | supplied | 16 mm2 | 25 mm2 | 50 mm2 | 2x 50 mm2 | | | | Harmonic distortion typical | 3% | 3% | 3% | 3% | 3% | 3% | 3% | 3% | 3% | 3% | 3% | | | | AC connection (single phase, 3-wire) | CEE-7/7**** | CEE-7/7**** | internal | internal | internal | CEE-7/7**** | CEE-7/7**** | internal | internal | internal | internal | | | | r Ph | | | | | | Il f et II H | | | | | | | | | OS I | | | | | | a power a ors owe | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | * Also available for 48 V, art. no. 48/500: 24040500 / art. no. 48/2500: 24042500 | | ' 15% load reduction for the 120 V/60 Hz models | | ' 120 V models: 120 Volt, ± 5% | | * The 120 V models are standard equipped with an US/NEMA5-15 AC connection. IEC320 or hardwiring optional | | | | | | | | | | | | | | ASTERVOLT | | | | | | | | | | m | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
