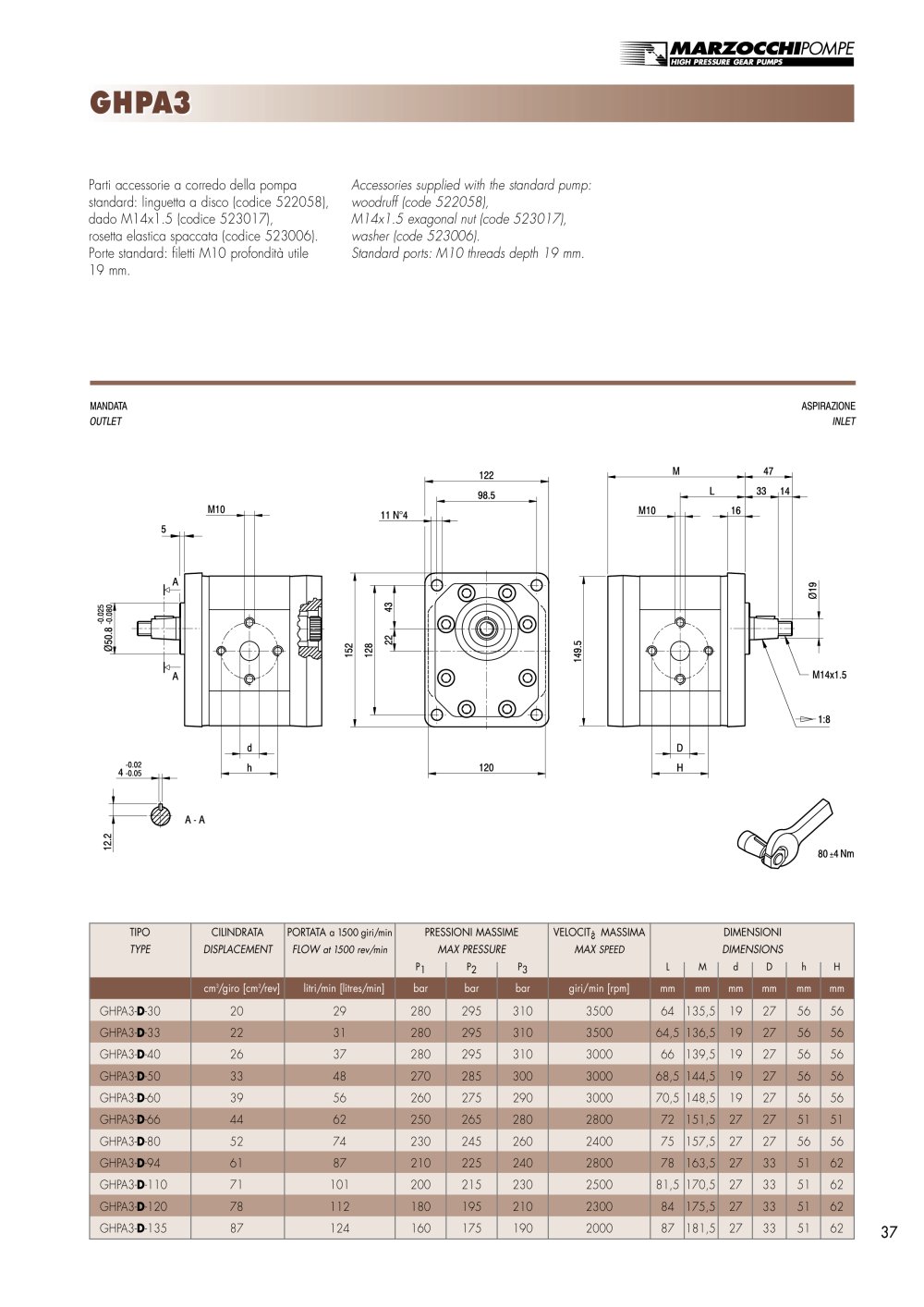

GHPA3GHPA3

Accessories supplied with the standard pump:woodruff (code 522058), M14x1.5 exagonal nut (code 523017), washer (code 523006).Standard ports: M10 threads depth 19 mm. Parti accessorie a corredo della pompastandard: linguetta a disco (codice 522058), dado M14x1.5 (codice 523017), rosetta elastica spaccata (codice 523006).Porte standard: filetti M10 profondità utile 19 mm.

MANDATA ASPIRAZIONE OUTLET INLET TIPOCILINDRATAPORTATA a1500giri/min PRESSIONI MASSIMEVELOCIT¿ MASSIMADIMENSIONI TYPEDISPLACEMENTFLOW at1500 rev/min MAX PRESSUREMAX SPEED DIMENSIONS P1P2P3LMdDhH cm 3 /giro [cm 3 /rev]litri/min [litres/min]barbarbargiri/min [rpm]mmmmmmmmmmmm GHPA3- D -302029280295310350064135,519275656GHPA3- D -332231280295310350064,5136,519275656GHPA3- D -402637280295310300066139,519275656GHPA3- D -503348270285300300068,5144,519275656GHPA3- D -603956260275290300070,5148,519275656GHPA3- D -664462250265280280072151,527275151GHPA3- D -805274230245260240075157,527275656GHPA3- D -946187210225240280078163,527335162GHPA3- D -11071101200215230250081,5170,527335162GHPA3- D -12078112180195210230084175,527335162GHPA3- D -13587124160175190200087181,527335162

37 37
