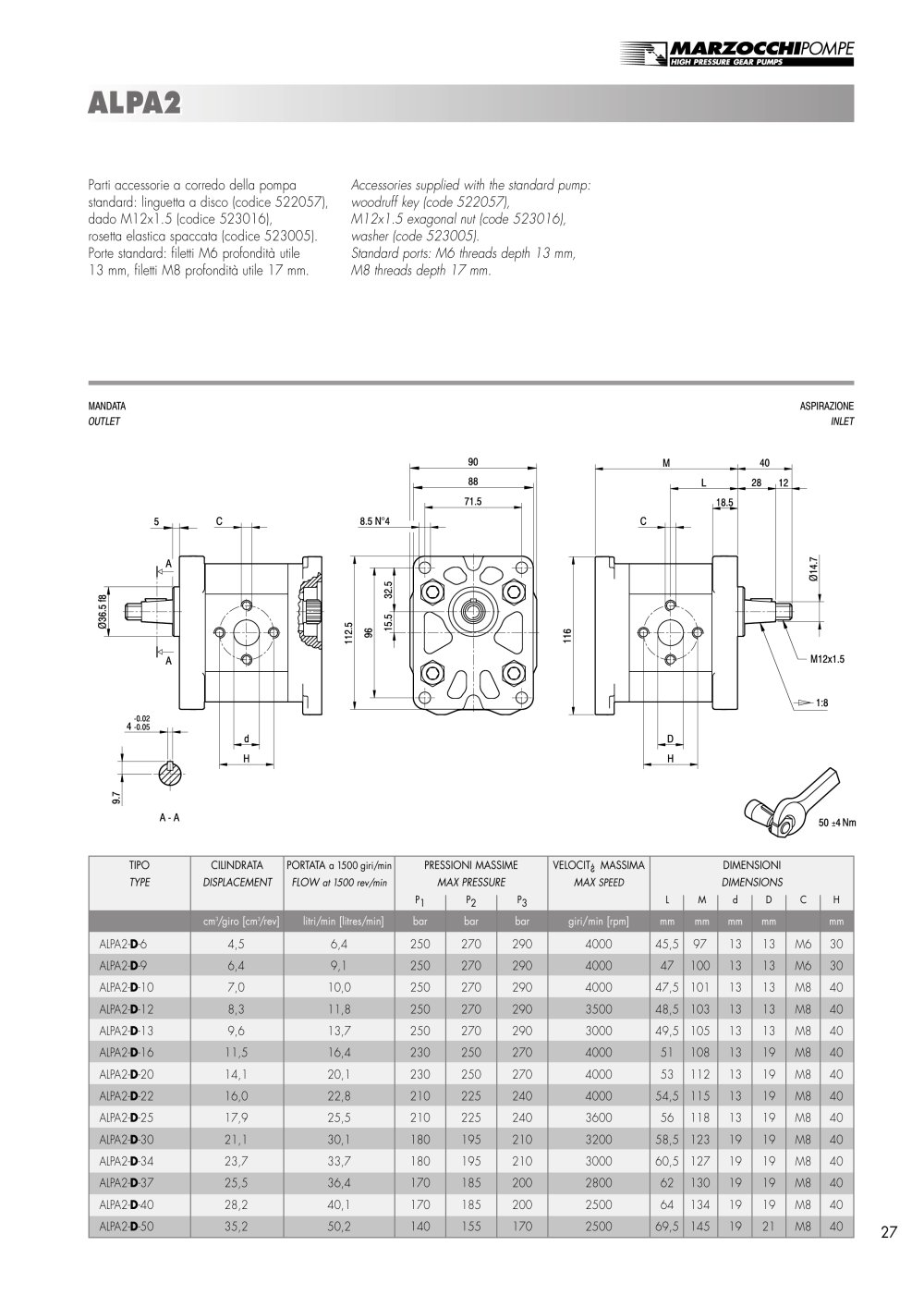

ALPA2ALPA2

Accessories supplied with the standard pump:woodruff key (code 522057), M12x1.5 exagonal nut (code 523016), washer (code 523005). Standard ports: M6 threads depth 13 mm, M8 threads depth 17 mm. Parti accessorie a corredo della pompastandard: linguetta a disco (codice 522057), dado M12x1.5 (codice 523016), rosetta elastica spaccata (codice 523005). Porte standard: filetti M6 profondità utile 13 mm, filetti M8 profondità utile 17 mm.

MANDATA ASPIRAZIONE OUTLET INLET TIPOCILINDRATAPORTATA a1500giri/min PRESSIONI MASSIMEVELOCIT¿ MASSIMADIMENSIONI TYPEDISPLACEMENTFLOW at1500 rev/min MAX PRESSUREMAX SPEED DIMENSIONS P1P2P3LMdDCH cm 3 /giro [cm 3 /rev]litri/min [litres/min]barbarbargiri/min [rpm]mmmmmmmmmm ALPA2- D -64,56,4250270290400045,5971313M630ALPA2- D -96,49,12502702904000471001313M630ALPA2- D -107,010,0250270290400047,51011313M840ALPA2- D -128,311,8250270290350048,51031313M840ALPA2- D -139,613,7250270290300049,51051313M840ALPA2- D -1611,516,42302502704000511081319M840ALPA2- D -2014,120,12302502704000531121319M840ALPA2- D -2216,022,8210225240400054,51151319M840ALPA2- D -2517,925,52102252403600561181319M840ALPA2- D -3021,130,1180195210320058,51231919M840ALPA2- D -3423,733,7180195210300060,51271919M840ALPA2- D -3725,536,41701852002800621301919M840ALPA2- D -4028,240,11701852002500641341919M840ALPA2- D -5035,250,2140155170250069,51451921M840

27
