Accessories supplied with the standard motor:woodruff key (code 522055), M12x1.5 exagonal nut (code 523016), washer (code 523005). Standard ports: M6 threads depth 13 mm.To mount the motor: n.2 M10 screws with atorque wrench setting fixed at 46 ± 4 Nm. G1/4 drain port thread depth 12 mm.

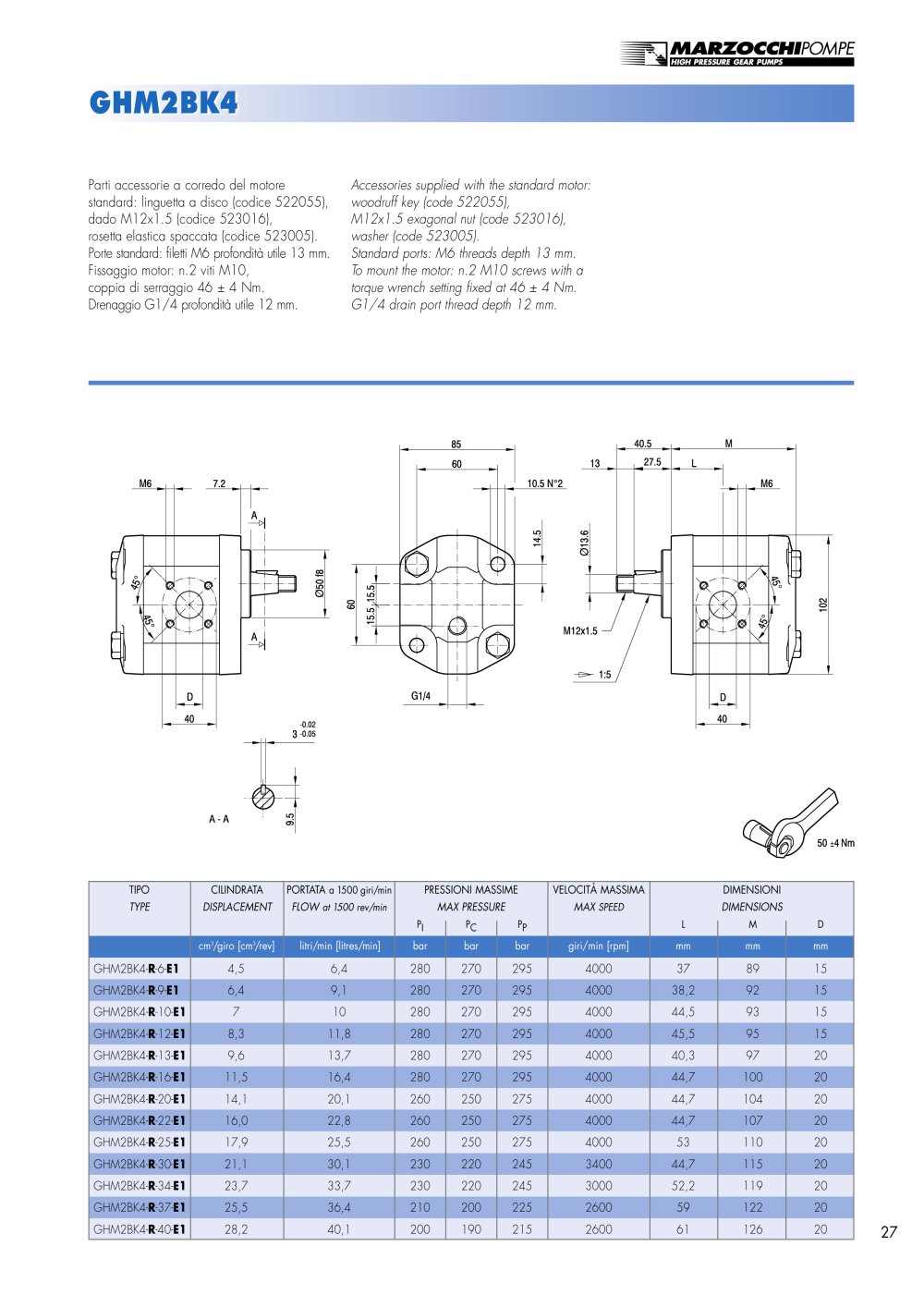

GEAR MOTORS GHM - 14767 GHM2BK4 GHM2BK4

Parti accessorie a corredo del motorestandard: linguetta a disco (codice 522055), dado M12x1.5 (codice 523016), rosetta elastica spaccata (codice 523005).Porte standard: filetti M6 profondità utile 13 mm. Fissaggio motor: n.2 viti M10, coppia di serraggio 46 ± 4 Nm. Drenaggio G1/4 profondità utile 12 mm.

TIPOCILINDRATAPORTATA a1500giri/min PRESSIONI MASSIMEVELOCITÀ MASSIMADIMENSIONI TYPEDISPLACEMENTFLOW at1500 rev/min MAX PRESSUREMAX SPEED DIMENSIONS PIPCPPLMD cm 3 /giro [cm 3 /rev]litri/min [litres/min]barbarbargiri/min [rpm]mmmmmm GHM2BK4- R -6- E1 4,56,42802702954000378915GHM2BK4- R -9- E1 6,49,1280270295400038,29215GHM2BK4- R -10- E1 710280270295400044,59315GHM2BK4- R -12- E1 8,311,8280270295400045,59515GHM2BK4- R -13- E1 9,613,7280270295400040,39720GHM2BK4- R -16- E1 11,516,4280270295400044,710020GHM2BK4- R -20- E1 14,120,1260250275400044,710420GHM2BK4- R -22- E1 16,022,8260250275400044,710720GHM2BK4- R -25- E1 17,925,526025027540005311020GHM2BK4- R -30- E1 21,130,1230220245340044,711520GHM2BK4- R -34- E1 23,733,7230220245300052,211920GHM2BK4- R -37- E1 25,536,421020022526005912220GHM2BK4- R -40- E1 28,240,120019021526006112620

27
