Accessories supplied with the standard motor:woodruff key (code 522058), M14x1.5 exagonal nut (code 523017), washer (code 523006).Standard ports: M10 threads depth 19 mm. G3/8 drain port thread depth 15 mm.

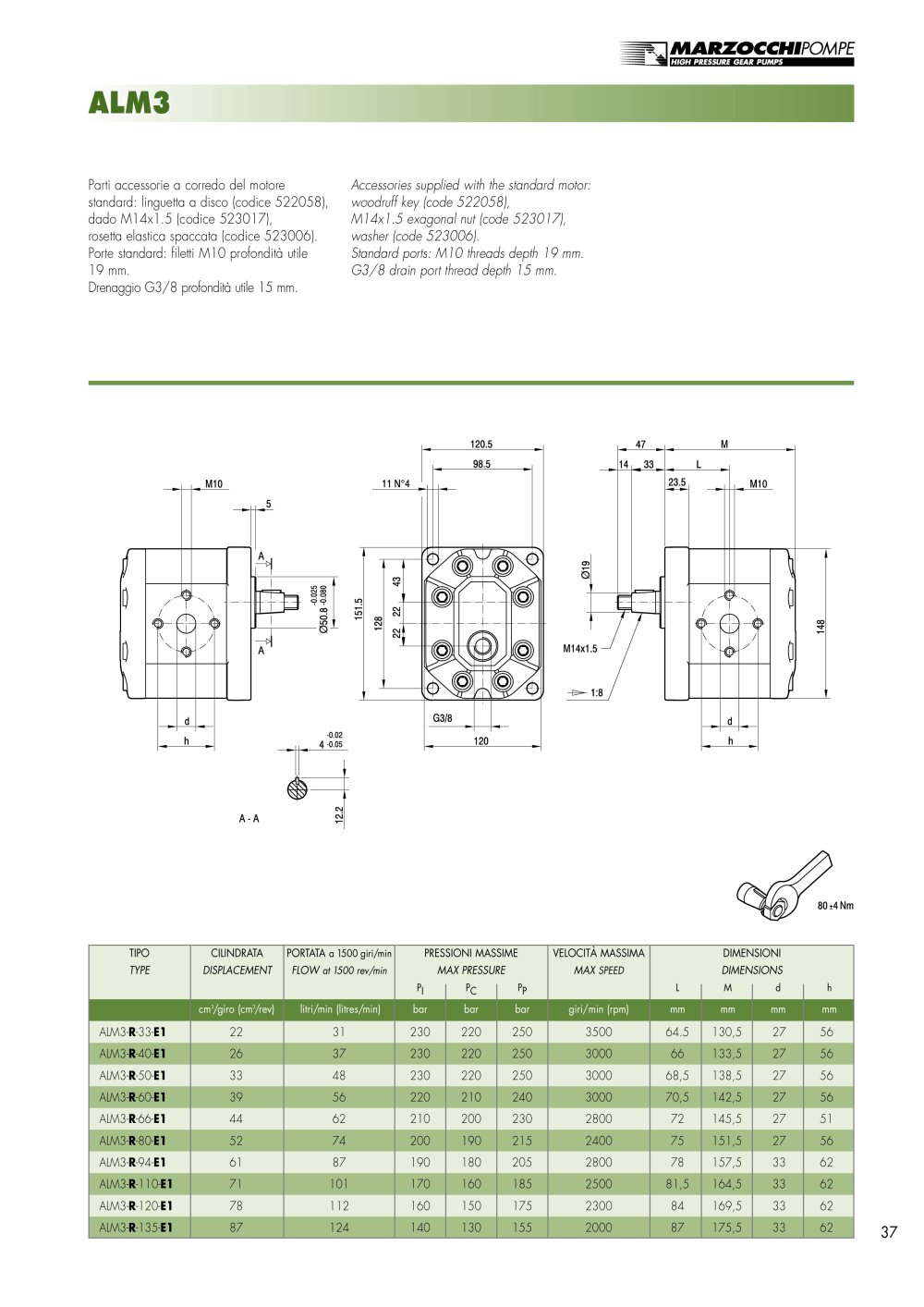

GEAR MOTORS ALM - 14767 ALM3 ALM3

Parti accessorie a corredo del motorestandard: linguetta a disco (codice 522058), dado M14x1.5 (codice 523017), rosetta elastica spaccata (codice 523006).Porte standard: filetti M10 profondità utile 19 mm. Drenaggio G3/8 profondità utile 15 mm.

TIPOCILINDRATAPORTATA a1500giri/min PRESSIONI MASSIMEVELOCITÀ MASSIMADIMENSIONI TYPEDISPLACEMENTFLOW at1500 rev/min MAX PRESSUREMAX SPEED DIMENSIONS PIPCPPLMdh cm 3 /giro (cm 3 /rev)litri/min (litres/min)barbarbargiri/min (rpm)mmmmmmmm ALM3- R -33- E1 2231230220250350064.5130,52756 ALM3- R -40- E1 2637230220250300066133,52756ALM3- R -50- E1 3348230220250300068,5138,52756ALM3- R -60- E1 3956220210240300070,5142,52756ALM3- R -66- E1 4462210200230280072145,52751ALM3- R -80- E1 5274200190215240075151,52756ALM3- R -94- E1 6187190180205280078157,53362ALM3- R -110- E1 71101170160185250081,5164,53362ALM3- R -120- E1 78112160150175230084169,53362ALM3- R -135- E1 87124140130155200087175,53362

37
