Item
Description
Part No.
Qty
24
Support Arm Weldment
Table V
2
25
Telescopic Idler Arm Weldment
Table V
1
26
Telescopic Idler Arm Weldment
Table V
1
27
Vertical Support Arm
37292
2
28
Suspension Bracket
37293
2
29
Parallel Stay
37415-02
1
30
Sleeve Bearing
37287
2
31
Screw HHC 1/2-13NCx 1-3/4 ZP
23478
2
32
Nut Hex Elastic Lock 1/2-13NC ZP
18577
6
33
Washer Compression 1/2
11750
20
34
Screw HHC 1/2-13NC x 4-1/2 ZP
35170
4
35
Screw HHC 1/2-13NC x 1-1/4 ZP
13835
4
36
Screw HHC 5/8-11NC x 1 ZP
22633
8
37
Screw HHC 1/2-13NC x 1-1/2 ZP
11763
12
38
Nut Hex 1/2-13NC
11771
12
39
Washer Flat 1/2 Narrow ZP
31010
4
40
Plug for 3.50 Square Tube
37301
41
Plug for 3.00 Square Tube
37302
42
Plug for 3.00 x 1.50 Tube
37303
43
*Label Kit
34772
44
*Mounting Hardware Kit
34498
45
*Manual Operator's
M3625
Item
Description
Part No.
Qty
1
T-Body Weldment
37254
1
2
Fitting Grease 1/8-27 NPT
11814
1
3
Radial Bearing
37260
2
4
Oil Seal Rubber
37261
2
5
Bearing UHMW
37262
4
6
Bearing Holder Cap
37272
2
7
Axial Bearing
37273
8
Swing Unit Shaft
37277
9
Swing Unit Weldment
37274
10
Nut Hex 1-8NC
22991
11
Swing Unit Cap
37278
12
Washer Compression 5/8
11752
13
Screw HHC 5/8-11NC x 1-1/4 ZP
15798
14
Swing Shaft
37271
15
Torque Arm Weldment
37263
16
Torque Arm Bushing
37268
17
Screw SOC HD Shoulder 3/4 x 2-3/4
37267
18
Nut Hex 5/8-11NC ZP
11772
19
Washer Compression 3/8
11747
2
20
Screw HHC 3/8-16NC x 1 ZP
11746-02
2
21
Cradle Weldment
Table V
1
22
Cradle Wing Tube Weldment
Table V
2
23
Guide Roll Assembly
35205-03
2

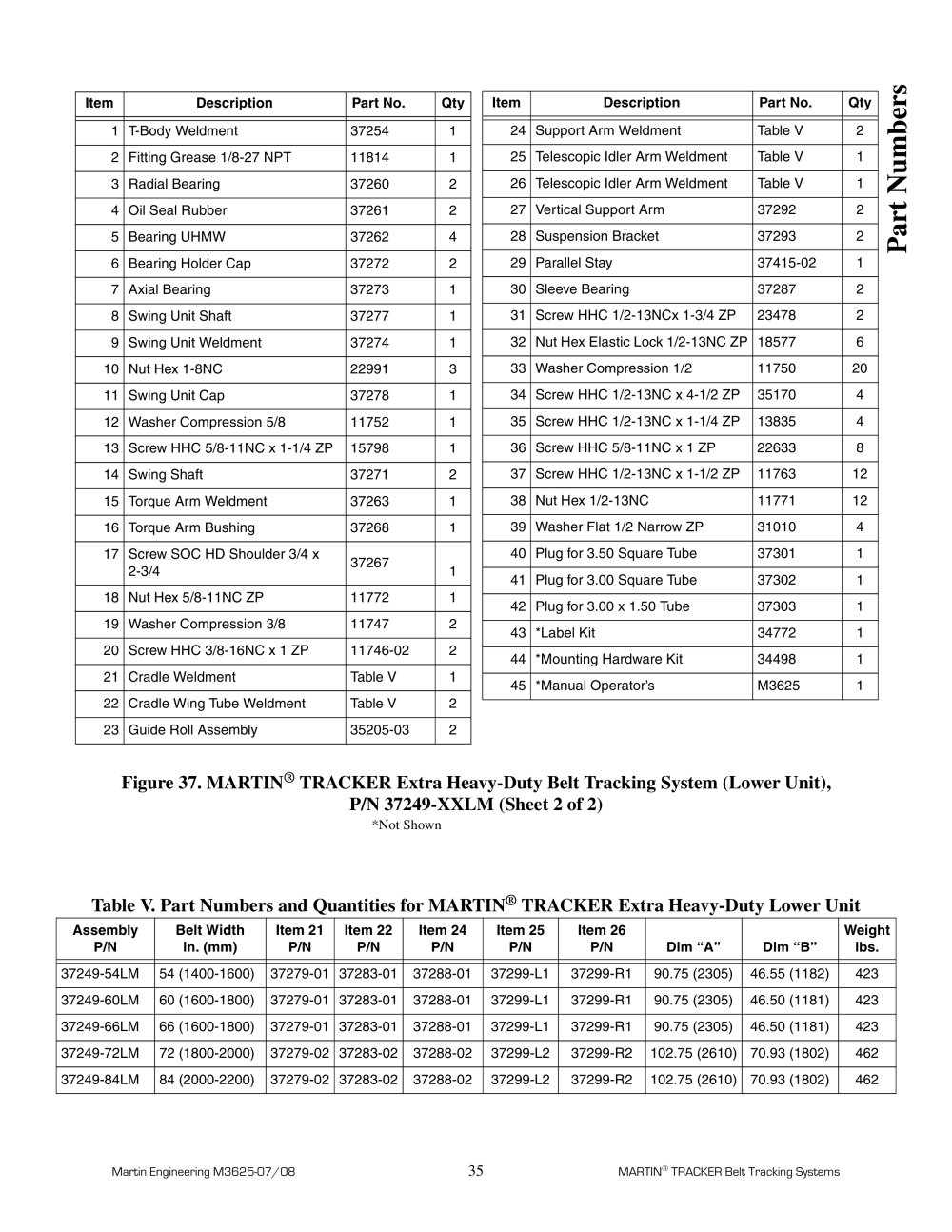

Figure 37. MARTIN® TRACKER Extra Heavy-Duty Belt Tracking System (Lower Unit),
P/N 37249-XXLM (Sheet 2 of 2)
*Not Shown
Table V. Part Numbers and Quantities for MARTIN® TRACKER Extra Heavy-Duty Lower Unit
Assembly P/N
Belt Width in. (mm)
Item 21
P/N
Item 22 P/N
Item 24 P/N
Item 25
P/N
Item 26
P/N
Dim "A"
Dim "B"
Weight
lbs.
37249-54LM
54 (1400-1600)
37279-01
37283-01
37288-01
37299-L1
37299-R1
90.75 (2305)
46.55 (1182)
423
37249-60LM
60 (1600-1800)
37279-01
37283-01
37288-01
37299-L1
37299-R1
90.75 (2305)
46.50 (1181)
423
37249-66LM
66 (1600-1800)
37279-01
37283-01
37288-01
37299-L1
37299-R1
90.75 (2305)
46.50 (1181)
423
37249-72LM
72 (1800-2000)
37279-02
37283-02
37288-02
37299-L2
37299-R2
102.75 (2610)
70.93 (1802)
462
37249-84LM
84 (2000-2200)
37279-02
37283-02
37288-02
37299-L2
37299-R2
102.75 (2610)
70.93 (1802)
462
