Installation
® TRACKER Belt Tracking Systems

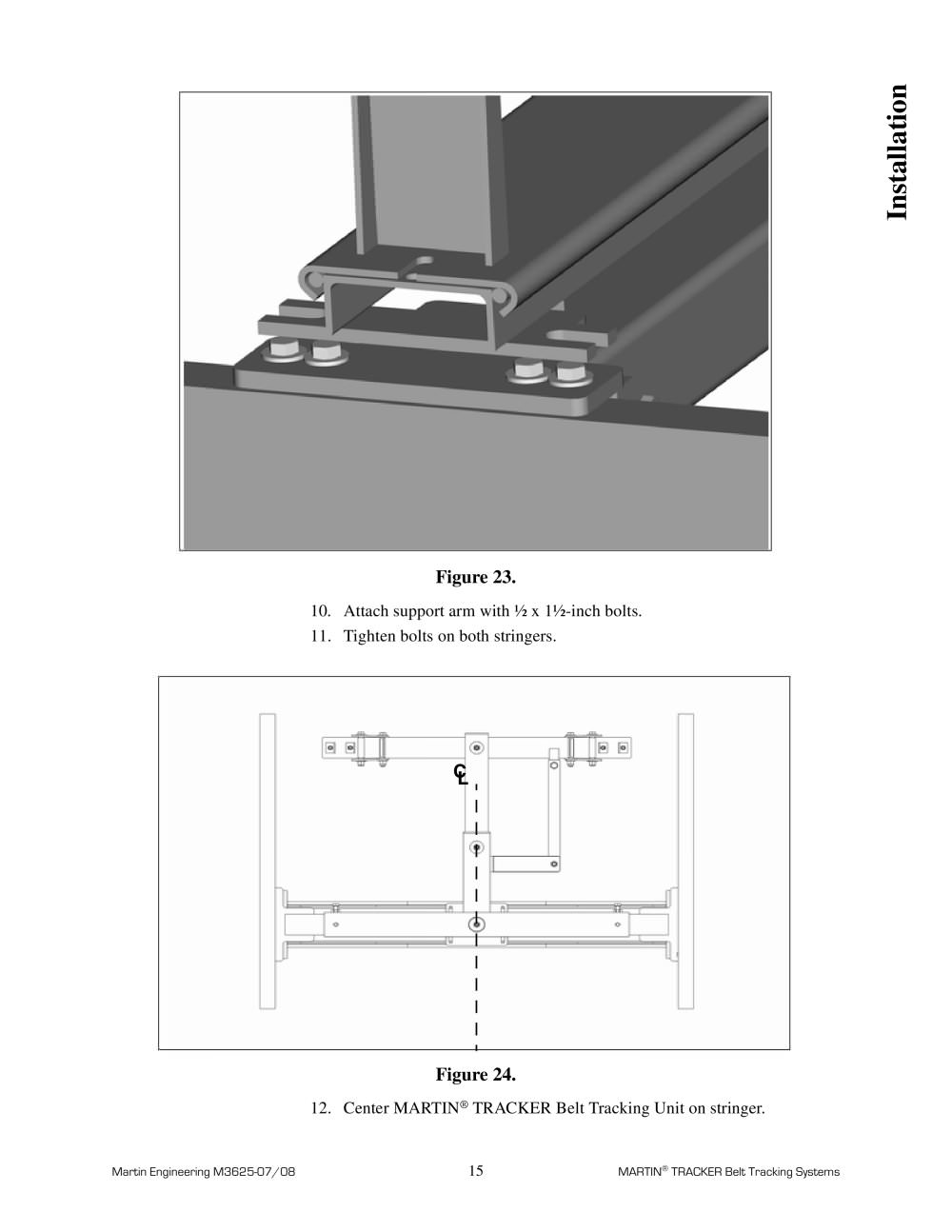

MARTIN® TRACKER Belt Tracking Systems - 22276 Figure 23.
10.Attach support arm with ˝ x 1˝-inch bolts. 11.Tighten bolts on both stringers.
CL
Figure 24.
12.Center MARTIN
®TRACKER Belt Tracking Unit on stringer.
Martin Engineering M3625-07/0815
MARTIN® TRACKER Belt Tracking Systems
