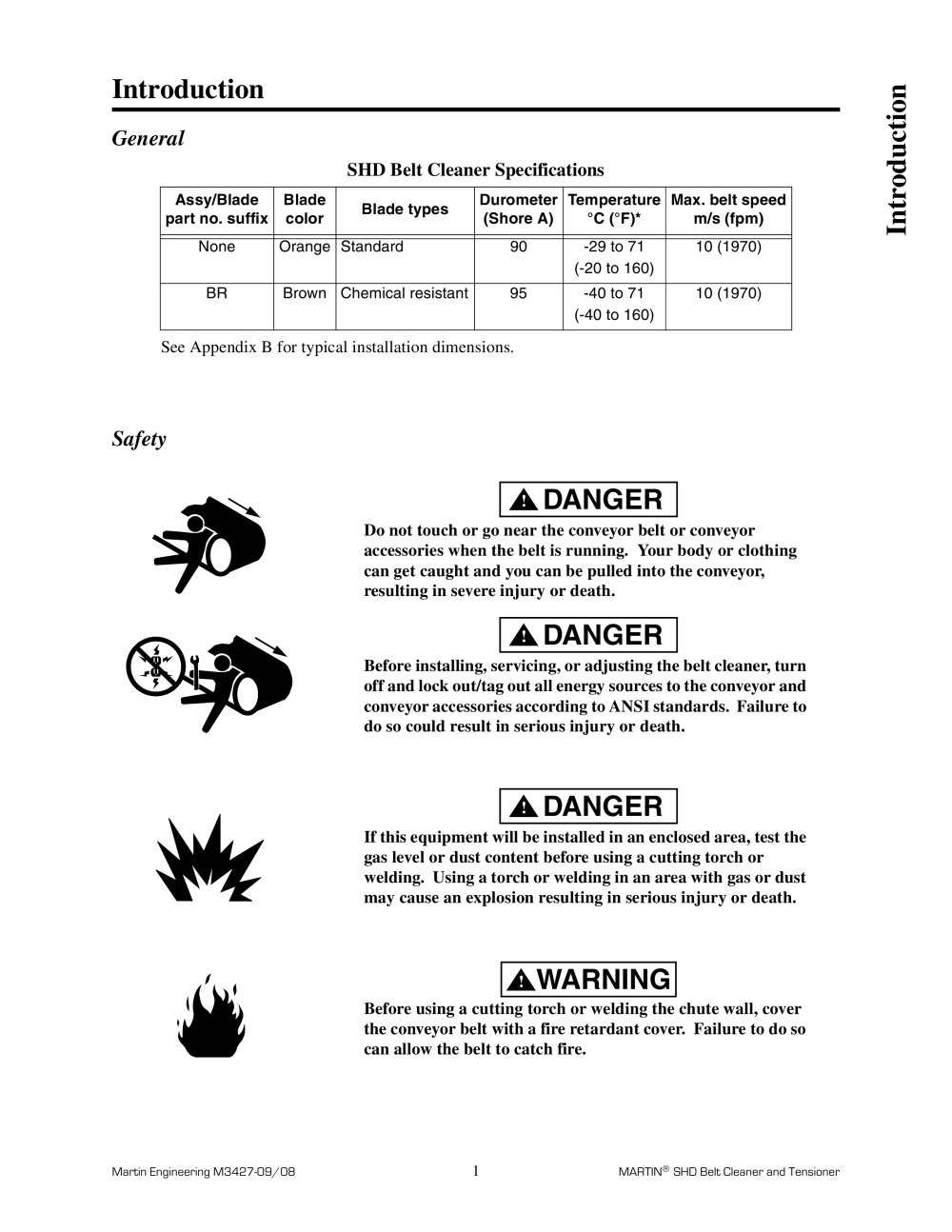

Introduction

General

SHD Belt Cleaner Specifications

Assy/Bladepart no. suffixBladecolorBlade typesDurometer(Shore A)Temperature°C (°F)*Max. belt speedm/s (fpm) Introduction NoneOrangeStandard90-29 to 71(-20 to 160)10 (1970)BRBrownChemical resistant95-40 to 71(-40 to 160)10 (1970) See Appendix B for typical installation dimensions.

Safety

!

DANGER

Do not touch or go near the conveyor belt or conveyor accessories when the belt is running. Your body or clothing can get caught and you can be pulled into the conveyor, resulting in severe injury or death. !

DANGER

Before installing, servicing, or adjusting the belt cleaner, turn off and lock out/tag out all energy sources to the conveyor and conveyor accessories according to ANSI standards. Failure to do so could result in serious injury or death. !

DANGER

If this equipment will be installed in an enclosed area, test the gas level or dust content before using a cutting torch or welding. Using a torch or welding in an area with gas or dust may cause an explosion resulting in serious injury or death. !Before using a cutting torch or welding the chute wall, cover the conveyor belt with a fire retardant cover. Failure to do so can allow the belt to catch fire.

WARNING

Martin Engineering M3427-09/08 1 MARTIN ® SHD Belt Cleaner and Tensioner
