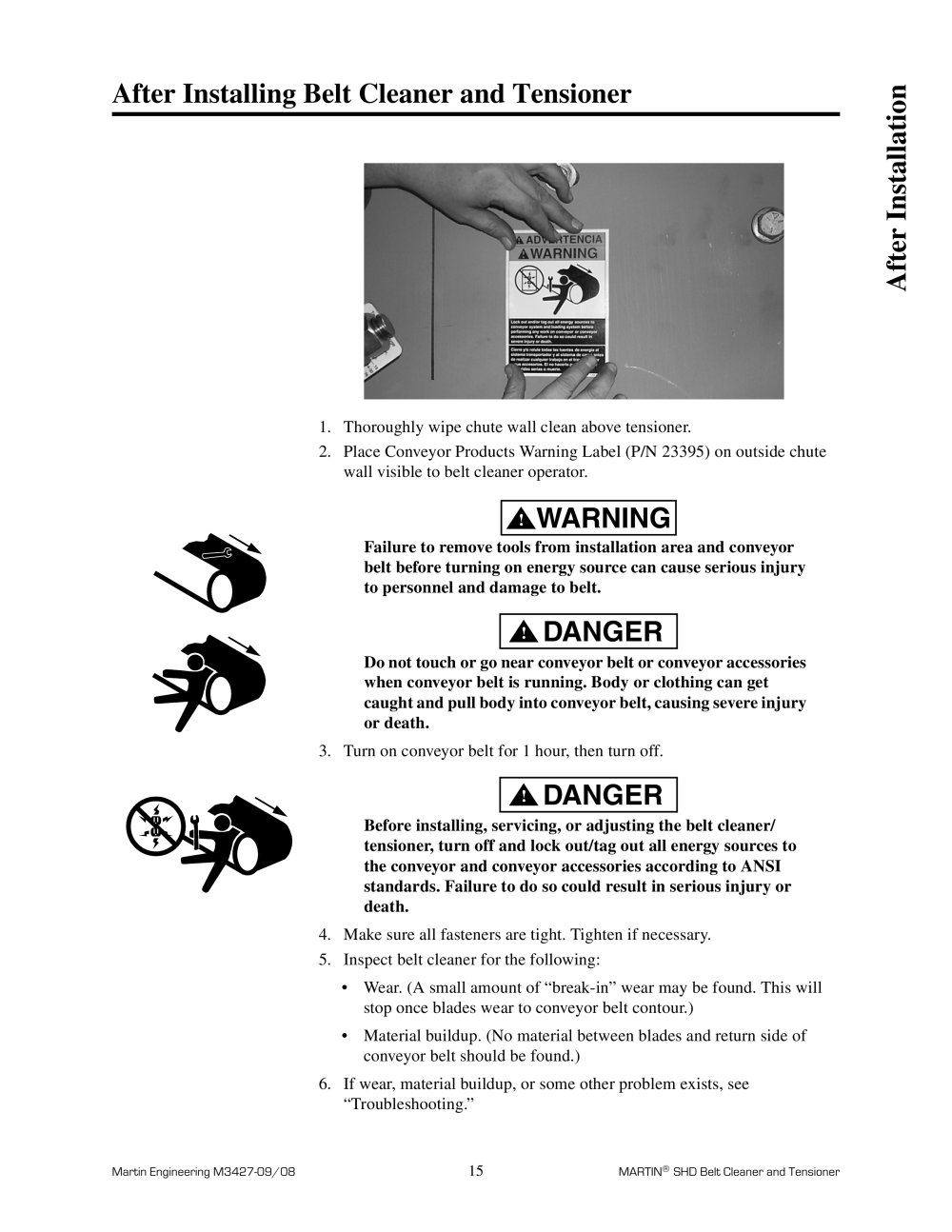

After Installing Belt Cleaner and Tensioner

After Installation 1.Thoroughly wipe chute wall clean above tensioner.2.Place Conveyor Products Warning Label (P/N 23395) on outside chute wall visible to belt cleaner operator. !Failure to remove tools from installation area and conveyor belt before turning on energy source can cause serious injury to personnel and damage to belt.

WARNING

!

DANGER

Do not touch or go near conveyor belt or conveyor accessories when conveyor belt is running. Body or clothing can get caught and pull body into conveyor belt, causing severe injury or death. 3.Turn on conveyor belt for 1 hour, then turn off. !Before installing, servicing, or adjusting the belt cleaner/tensioner, turn off and lock out/tag out all energy sources to the conveyor and conveyor accessories according to ANSI standards. Failure to do so could result in serious injury or death.

DANGER

4.Make sure all fasteners are tight. Tighten if necessary.5.Inspect belt cleaner for the following:•Wear. (A small amount of “break-in” wear may be found. This will stop once blades wear to conveyor belt contour.)•Material buildup. (No material between blades and return side of conveyor belt should be found.)6.If wear, material buildup, or some other problem exists, see “Troubleshooting.”
Martin Engineering M3427-09/08 15 MARTIN ® SHD Belt Cleaner and Tensioner
