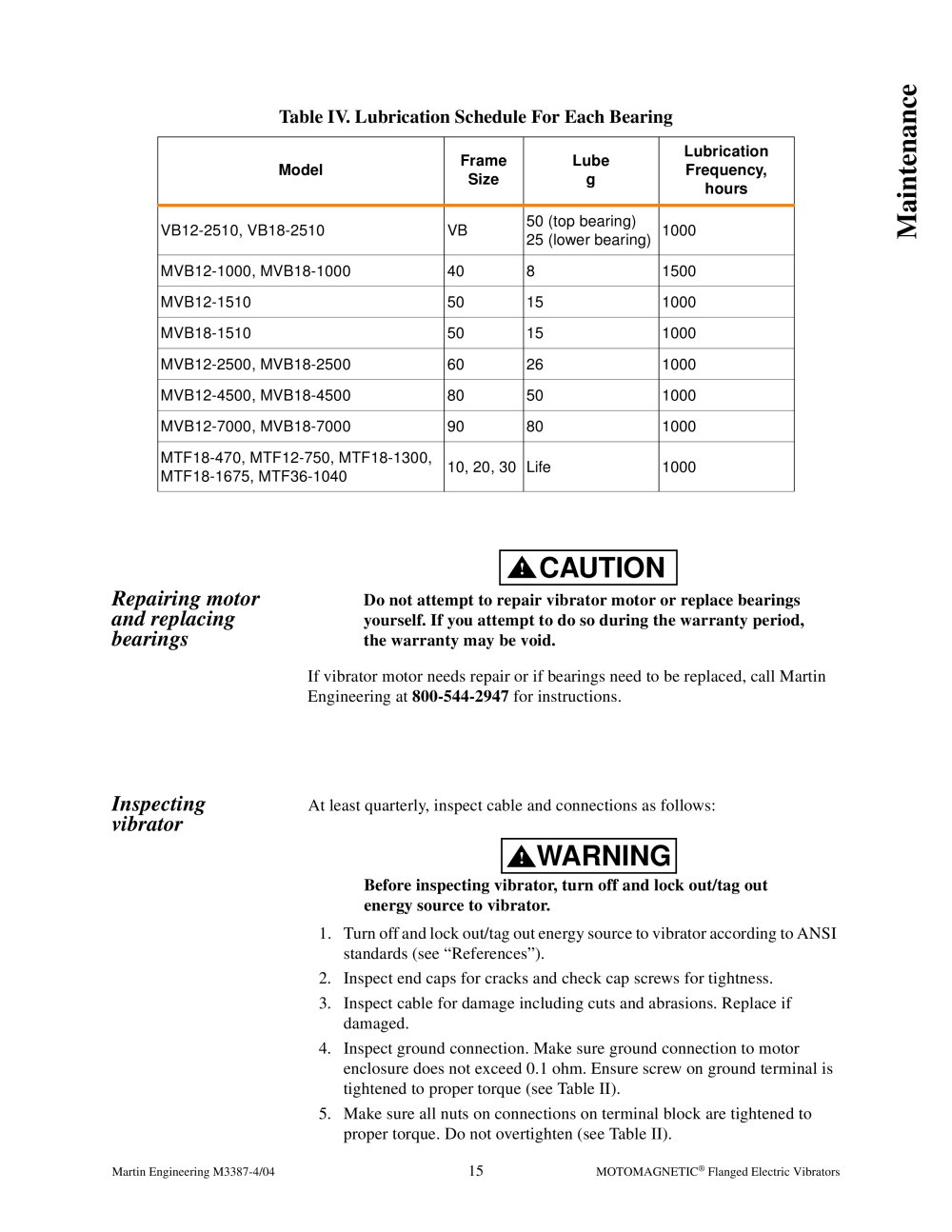

| Table IV. Lubrication Schedule For Each Bearing | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| [AcautionJ Repairing motor Do not attempt to repair vibrator motor or replace bearings and replacing yourself. If you attempt to do so during the warranty period, bearings the warranty may be void. If vibrator motor needs repair or if bearings need to be replaced, call Martin Engineering at 800-544-2947 for instructions. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Inspecting At least quarterly, inspect cable and connections as follows: vibrator AXwarning Before inspecting vibrator, turn off and lock out/tag out energy source to vibrator. 1. Turn off and lock out/tag out energy source to vibrator according to ANSI standards (see "References"). 2. Inspect end caps for cracks and check cap screws for tightness. 3. Inspect cable for damage including cuts and abrasions. Replace if damaged. 4. Inspect ground connection. Make sure ground connection to motor enclosure does not exceed 0.1 ohm. Ensure screw on ground terminal is tightened to proper torque (see Table II). 5. Make sure all nuts on connections on terminal block are tightened to proper torque. Do not overtighten (see Table II). | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
