3.If using MARTIN

W-beam Mount (or equivalent) or T-beam to mount vibrator onto structure (see Figure 2), do the following:a.Locate beam so that vibrator can be positioned as shown in Figure 1.b.Extend beam at least 3/4 the length of sloped wall. Cut off end(s) of beam if necessary to fit on structure.c.Skip-weld beam in place: Weld 3 in. (76 mm), then skip 2 in. (51 mm). Repeat for entire perimeter of beam. Do not weld last 1 in. (25 mm) of either end of beam or any corner.d.Install vibrator onto W-beam mount or ECF bracket.

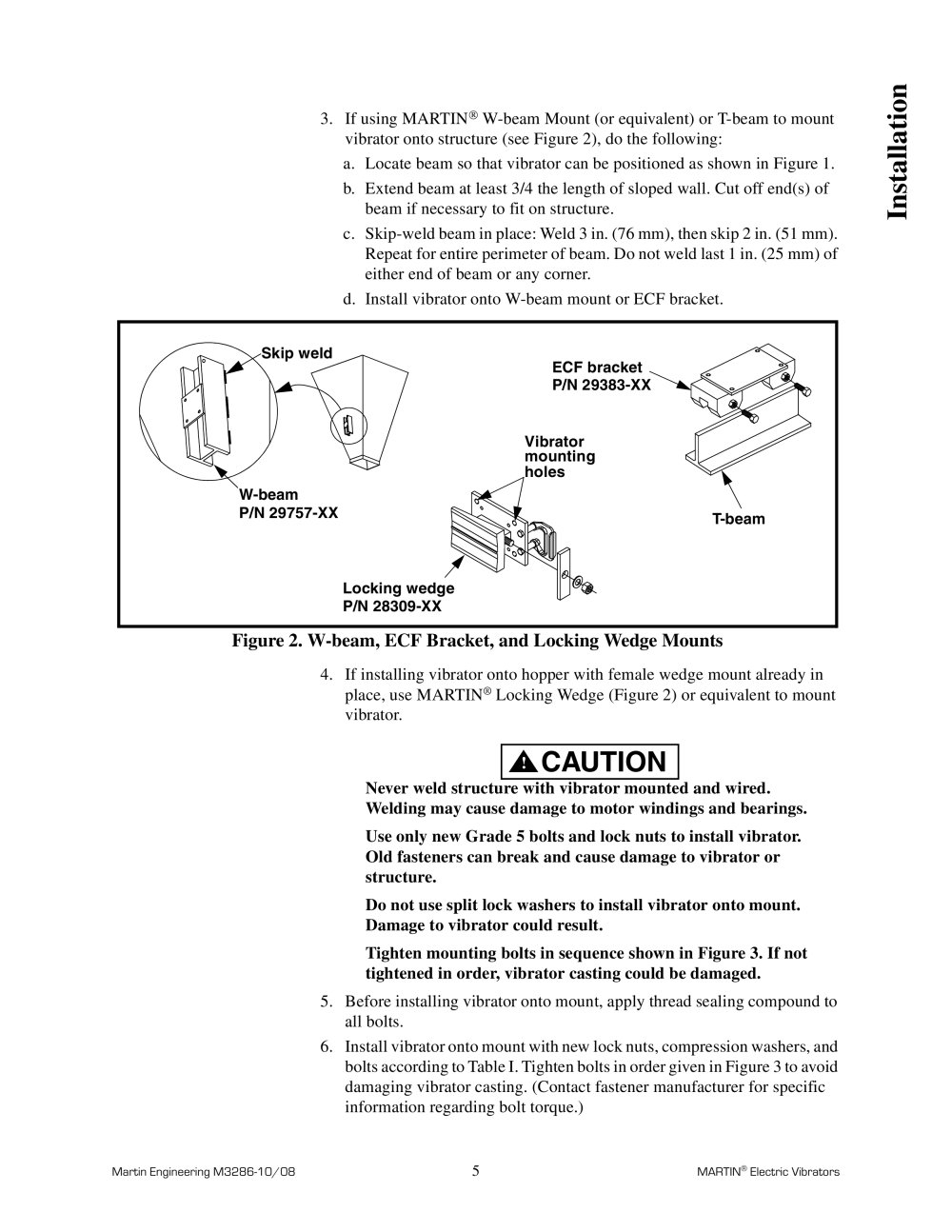

Figure 2. W-beam, ECF Bracket, and Locking Wedge Mounts

4.If installing vibrator onto hopper with female wedge mount already in place, use MARTIN

Locking Wedge (Figure 2) or equivalent to mount vibrator. !

MARTIN® Electric Vibrators CD Series - 22276 CAUTION

Never weld structure with vibrator mounted and wired. Welding may cause damage to motor windings and bearings.Use only new Grade 5 bolts and lock nuts to install vibrator. Old fasteners can break and cause damage to vibrator or structure.Do not use split lock washers to install vibrator onto mount. Damage to vibrator could result.Tighten mounting bolts in sequence shown in Figure 3. If not tightened in order, vibrator casting could be damaged. 5.Before installing vibrator onto mount, apply thread sealing compound to all bolts.6.Install vibrator onto mount with new lock nuts, compression washers, and bolts according to Table I. Tighten bolts in order given in Figure 3 to avoid damaging vibrator casting. (Contact fastener manufacturer for specific information regarding bolt torque.)
