Installing Standard Brush Cleaner

1.Align MARTIN
® Brush Cleaner mount over bolt holes on far side chute wall. Bolt or skip weld mount to chute wall.2.Install motor (A, Figure 3) onto motor mount on far side chute wall.3.Slide brush shaft (B) through mount on operator side chute wall and roller bearing (C) on far side chute wall.4.Install clutch (D) onto motor shaft and brush shaft. 5.Center brush (E) under conveyor belt and secure with locking hubs (F) and brush clamps (G).6.Slide operator side mount over brush shaft and install to chute wall or mount bracket if using a MARTIN
Installation ® CYA
™ Inspection Door.7.If necessary, cut off excess shaft on operator side. Remove burrs and sharp edges. D B A C G F E
14.27 (362) 2.25(57) A. MotorB. Brush shaftC. Roller bearingD. ClutchE. BrushF. Locking hubG. Brush clamp

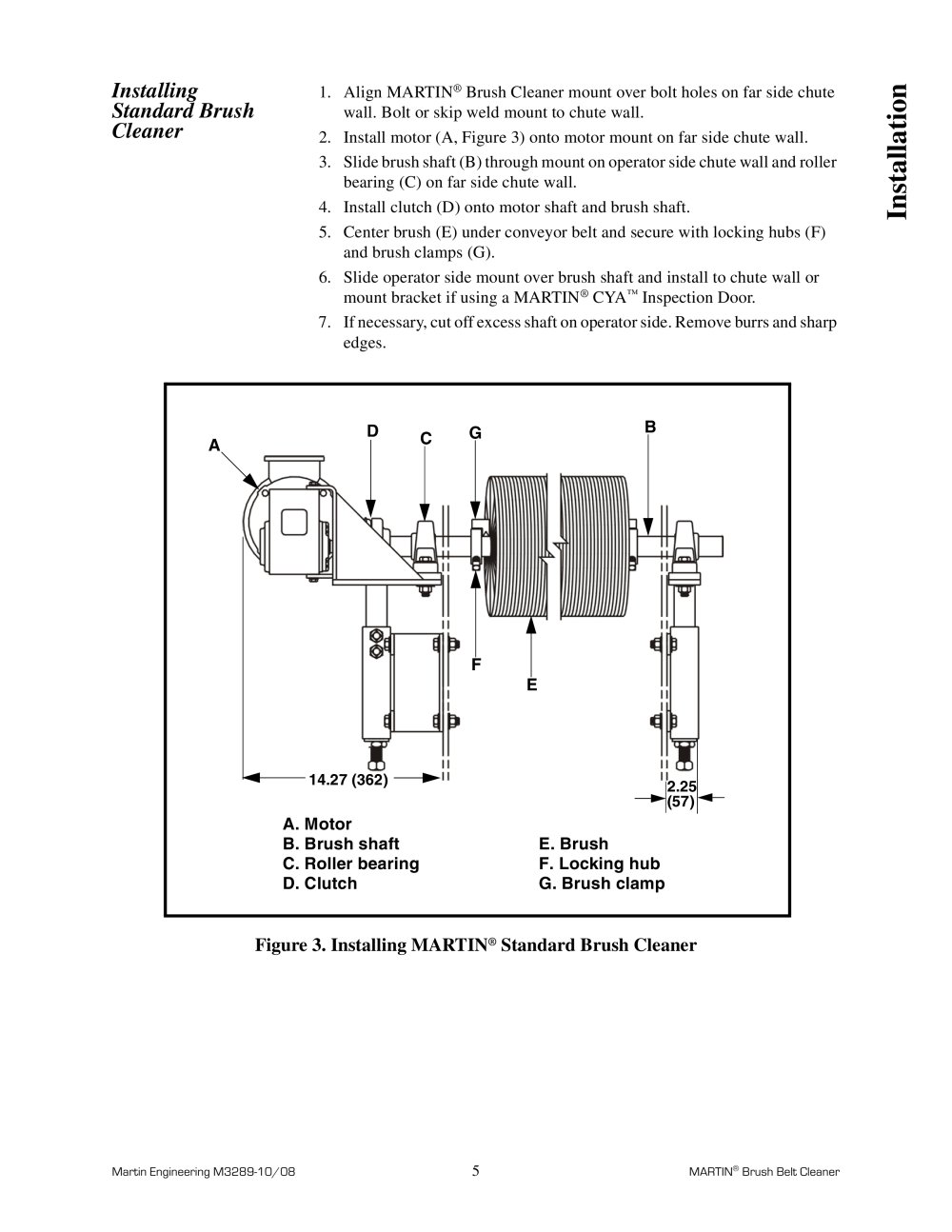

Figure 3. Installing MARTIN

®

Standard Brush Cleaner
