Item	Description	Part No.	Qty.
1	Screw HHC 5/16 - 18NC x 1	32583	4
2	Washer compression 5/16	31401	4
3	Sure-flex coupling	27368-03	1
4	Clamp brush	32844	2
5	Screw SHC 5/16 - 18NC x 3/4	32845	2
6	Hub locking	32842	2
7	Screw SHS 1/2 - 13NC x 1	22763-03	8
8	Bearing pillow block	35328-01	2
9	Keyshaft 1.44 (36)	Table I	1
10	Key square 3/8 x 3/8 x 2 - 1/2	28483	1
11	Screw HHC 1/2 - 13NC x 2 - 1/2	14205	4
12	Nut hex 1/2 - 13NC	11771	16
13	Washer compression 1/2	11750	16
14	Washer flat 1/2	19126	16
15	Spacer plate bearing	32828-S	2
16	Inner slide weldment	32834	1
17	Nut hex jam 3/4 - 16NF	32242	2
18	Nut hex 3/4 - 16NF	34688	2
19	Brush spiral 10.00	Table II	1
20	Mount bracket	32880	1
21	Take-up rod weldment	32835	2
22	Outer guide mount weldment	32836	2
23	Motor mount inner slide weldment	32834-M	1
24	Motor/reducer assembly 1 hp, right angle	31925-01	Table I
25	Motor/reducer assembly 2 hp, right angle	31925-02	Table I
26	Screw HHC 1/2-13NC x 1-1/2	11763	12
Fig. 18	Label Conveyor Products Warning	23395	2

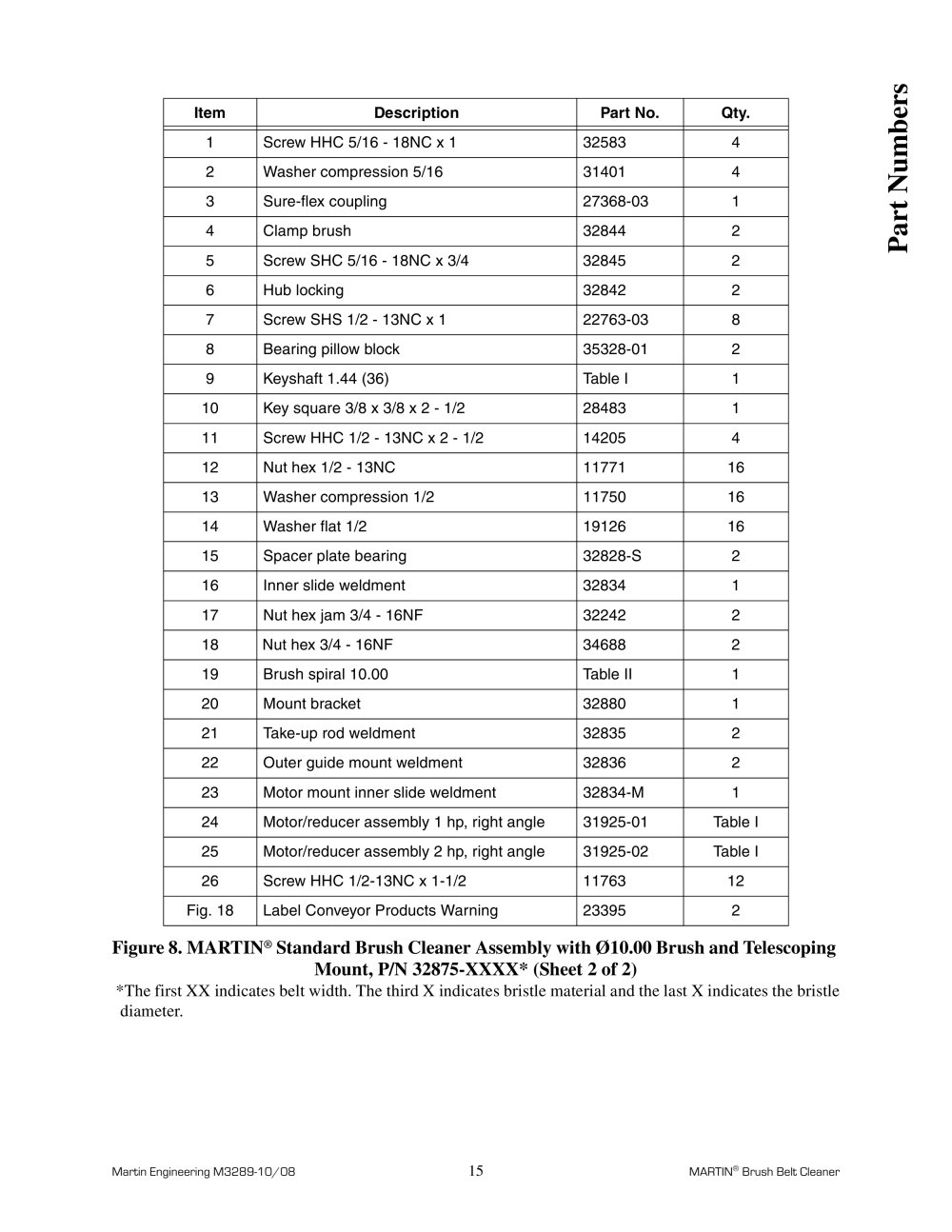

Figure 8. MARTIN® Standard Brush Cleaner Assembly with 010.00 Brush and Telescoping

Mount, P/N 32875-XXXX* (Sheet 2 of 2)

*The first XX indicates belt width. The third X indicates bristle material and the last X indicates the bristle diameter.
