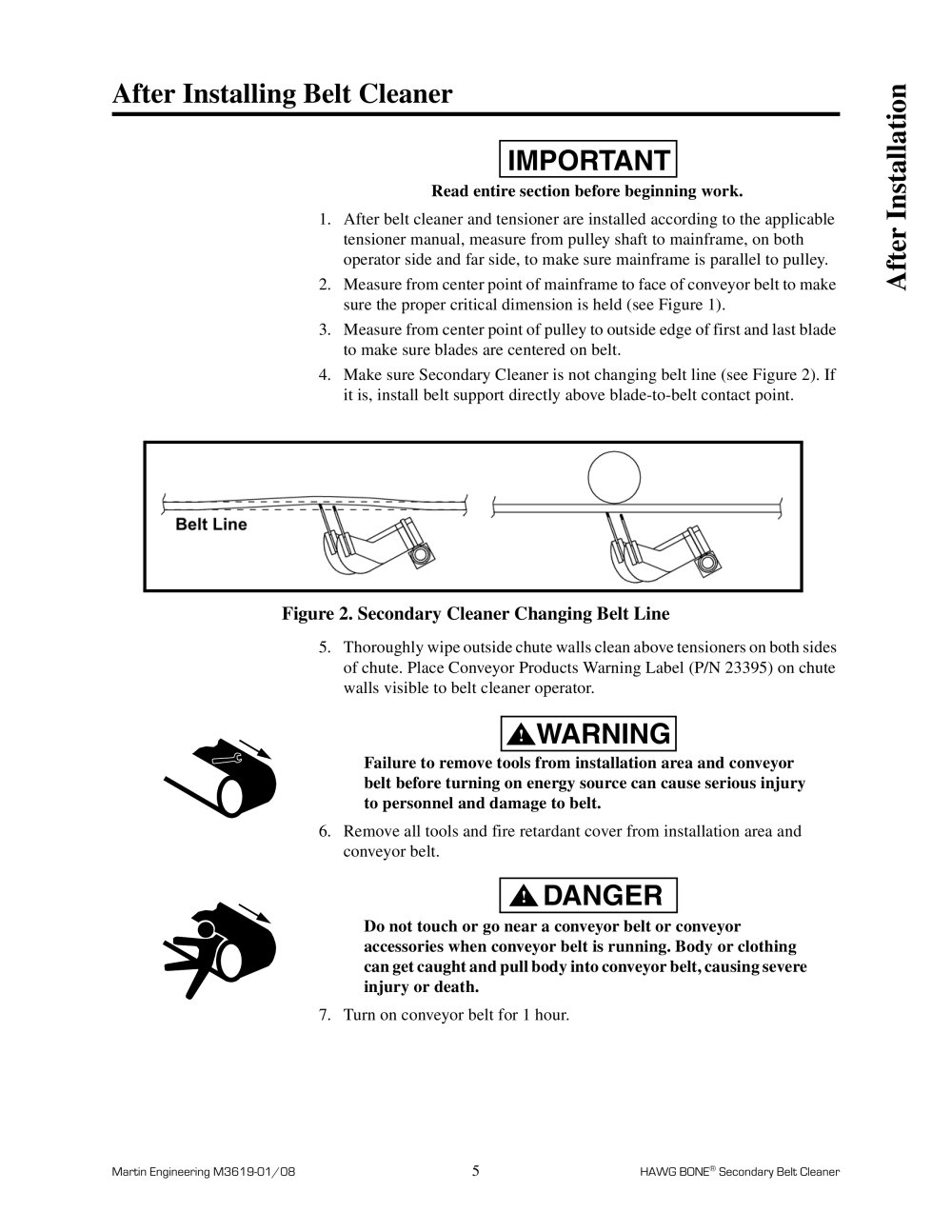

After Installing Belt Cleaner IMPORTANT

Read entire section before beginning work. 1.After belt cleaner and tensioner are installed according to the applicable tensioner manual, measure from pulley shaft to mainframe, on both operator side and far side, to make sure mainframe is parallel to pulley.2.Measure from center point of mainframe to face of conveyor belt to make sure the proper critical dimension is held (see Figure 1).3.Measure from center point of pulley to outside edge of first and last blade to make sure blades are centered on belt.4.Make sure Secondary Cleaner is not changing belt line (see Figure 2). If it is, install belt support directly above blade-to-belt contact point.
After Installation

Figure 2. Secondary Cleaner Changing Belt Line

5.Thoroughly wipe outside chute walls clean above tensioners on both sides of chute. Place Conveyor Products Warning Label (P/N 23395) on chute walls visible to belt cleaner operator. !Failure to remove tools from installation area and conveyor belt before turning on energy source can cause serious injury to personnel and damage to belt.

WARNING

6.Remove all tools and fire retardant cover from installation area and conveyor belt. !Do not touch or go near a conveyor belt or conveyor accessories when conveyor belt is running. Body or clothing can get caught and pull body into conveyor belt, causing severe injury or death.

DANGER

7.Turn on conveyor belt for 1 hour.
