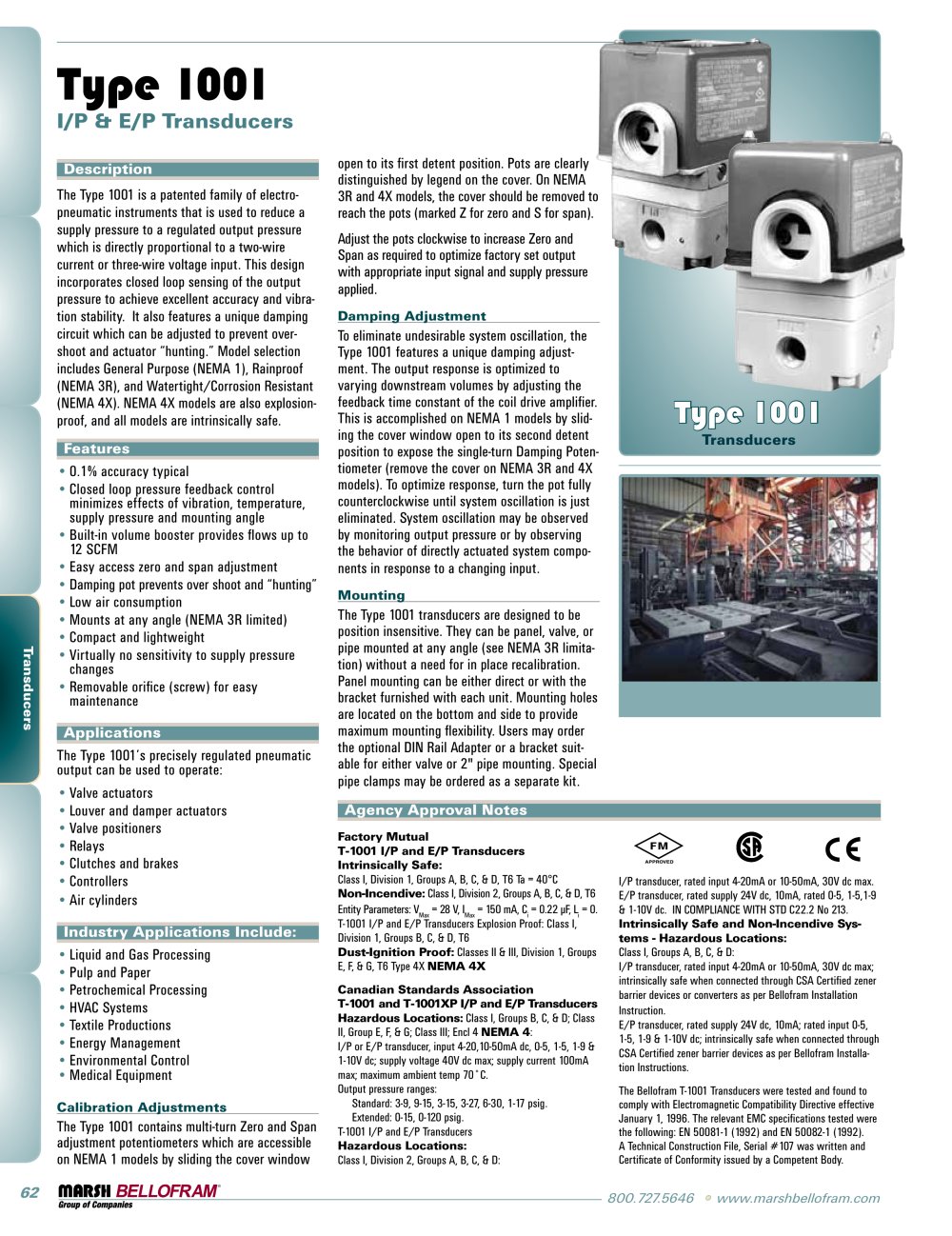

62 800.727.5646 • www.marshbellofram.com Transducers Description The Type 1001 is a patented family of electropneumatic instruments that is used to reduce a supply pressure to a regulated output pressure which is directly proportional to a two-wire current or three-wire voltage input. This design incorporates closed loop sensing of the output pressure to achieve excellent accuracy and vibration stability. It also features a unique damping circuit which can be adjusted to prevent overshoot and actuator “hunting.” Model selection includes General Purpose (NEMA 1), Rainproof (NEMA 3R), and Watertight/Corrosion Resistant (NEMA 4X). NEMA 4X models are also explosionproof, and all models are intrinsically safe. Features • 0.1% accuracy typical • Closed loop pressure feedback control minimizes effects of vibration, temperature, supply pressure and mounting angle • Built-in volume booster provides flows up to 12 SCFM • Easy access zero and span adjustment • Damping pot prevents over shoot and “hunting” • Low air consumption • Mounts at any angle (NEMA 3R limited) • Compact and lightweight • Virtually no sensitivity to supply pressure changes • Removable orifice (screw) for easy maintenance Applications The Type 1001’s precisely regulated pneumatic output can be used to operate: • Valve actuators • Louver and damper actuators • Valve positioners • Relays • Clutches and brakes • Controllers • Air cylinders Industry Applications Include: • Liquid and Gas Processing • Pulp and Paper • Petrochemical Processing • HVAC Systems • Textile Productions • Energy Management • Environmental Control • Medical Equipment Calibration Adjustments The Type 1001 contains multi-turn Zero and Span adjustment potentiometers which are accessible on NEMA 1 models by sliding the cover window Type 1001 I/P & E/P Transducers open to its first detent position. Pots are clearly distinguished by legend on the cover. On NEMA 3R and 4X models, the cover should be removed to reach the pots (marked Z for zero and S for span). Adjust the pots clockwise to increase Zero and Span as required to optimize factory set output with appropriate input signal and supply pressure applied. Damping Adjustment To eliminate undesirable system oscillation, the Type 1001 features a unique damping adjustment. The output response is optimized to varying downstream volumes by adjusting the feedback time constant of the coil drive amplifier. This is accomplished on NEMA 1 models by sliding the cover window open to its second detent position to expose the single-turn Damping Potentiometer (remove the cover on NEMA 3R and 4X models). To optimize response, turn the pot fully counterclockwise until system oscillation is just eliminated. System oscillation may be observed by monitoring output pressure or by observing the behavior of directly actuated system components in response to a changing input. Mounting The Type 1001 transducers are designed to be position insensitive. They can be panel, valve, or pipe mounted at any angle (see NEMA 3R limitation) without a need for in place recalibration. Panel mounting can be either direct or with the bracket furnished with each unit. Mounting holes are located on the bottom and side to provide maximum mounting flexibility. Users may order the optional DIN Rail Adapter or a bracket suitable for either valve or 2" pipe mounting. Special pipe clamps may be ordered as a separate kit. Type 1001 Transducers Factory Mutual T-1001 I/P and E/P Transducers Intrinsically Safe: Class I, Division 1, Groups A, B, C, & D, T6 Ta = 40°C Non-Incendive: Class I, Division 2, Groups A, B, C, & D, T6 Entity Parameters: VMax = 28 V, IMax = 150 mA, Ci = 0.22 ìF, Li = 0. T-1001 I/P and E/P Transducers Explosion Proof: Class I, Division 1, Groups B, C, & D, T6 Dust-Ignition Proof: Classes II & III, Division 1, Groups E, F, & G, T6 Type 4X NEMA 4X Canadian Standards Association T-1001 and T-1001XP I/P and E/P Transducers Hazardous Locations: Class I, Groups B, C, & D; Class II, Group E, F, & G; Class III; Encl 4 NEMA 4: I/P or E/P transducer, input 4-20,10-50mA dc, 0-5, 1-5, 1-9 & 1-10V dc; supply voltage 40V dc max; supply current 100mA max; maximum ambient temp 70¢ªC. Output pressure ranges: Standard: 3-9, 9-15, 3-15, 3-27, 6-30, 1-17 psig. Extended: 0-15, 0-120 psig. T-1001 I/P and E/P Transducers Hazardous Locations: Class I, Division 2, Groups A, B, C, & D: Agency Approval Notes I/P transducer, rated input 4-20mA or 10-50mA, 30V dc max. E/P transducer, rated supply 24V dc, 10mA, rated 0-5, 1-5,1-9 & 1-10V dc. IN COMPLIANCE WITH STD C22.2 No 213. Intrinsically Safe and Non-Incendive Systems - Hazardous Locations: Class I, Groups A, B, C, & D: I/P transducer, rated input 4-20mA or 10-50mA, 30V dc max; intrinsically safe when connected through CSA Certified zener barrier devices or converters as per Bellofram Installation Instruction. E/P transducer, rated supply 24V dc, 10mA; rated input 0-5, 1-5, 1-9 & 1-10V dc; intrinsically safe when connected through CSA Certified zener barrier devices as per Bellofram Installation Instructions. The Bellofram T-1001 Transducers were tested and found to comply with Electromagnetic Compatibility Directive effective January 1, 1996. The relevant EMC specifications tested were the following: EN 50081-1 (1992) and EN 50082-1 (1992). A Technical Construction File, Serial #107 was written and Certificate of Conformity issued by a Competent Body.
