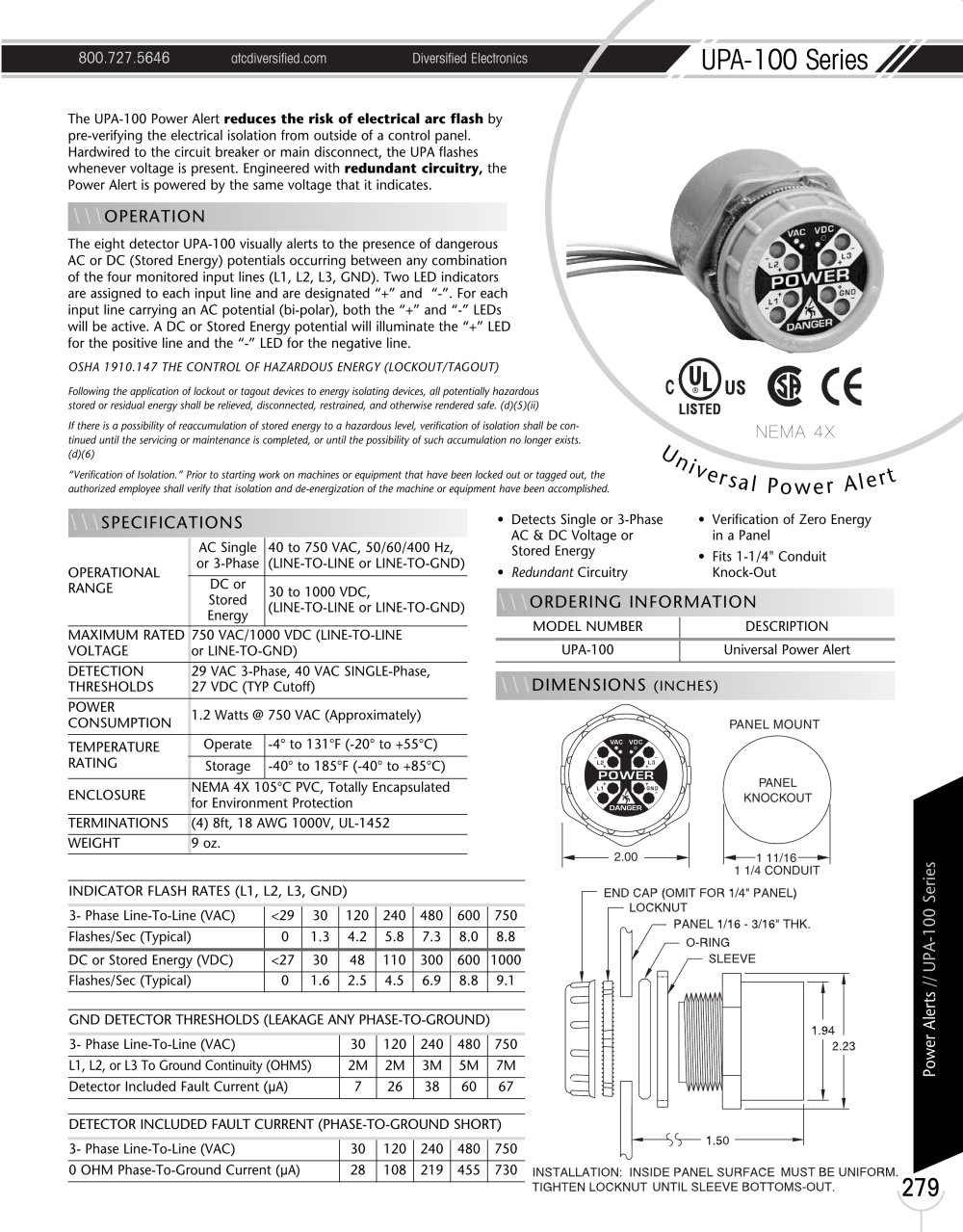

800.727.5646 atcdiversified.com Diversified Electronics UPA-100 Series Power Alerts // UPA-100 Series 279 U ni v e r sa l Po w e r A l e rt The UPA-100 Power Alert reduces the risk of electrical arc flash by pre-verifying the electrical isolation from outside of a control panel. Hardwired to the circuit breaker or main disconnect, the UPA flashes whenever voltage is present. Engineered with redundant circuitry, the Power Alert is powered by the same voltage that it indicates. The eight detector UPA-100 visually alerts to the presence of dangerous AC or DC (Stored Energy) potentials occurring between any combination of the four monitored input lines (L1, L2, L3, GND). Two LED indicators are assigned to each input line and are designated “+” and “-”. For each input line carrying an AC potential (bi-polar), both the “+” and “-” LEDs will be active. A DC or Stored Energy potential will illuminate the “+” LED for the positive line and the “-” LED for the negative line. OSHA 1910.147 THE CONTROL OF HAZARDOUS ENERGY (LOCKOUT/TAGOUT) Following the application of lockout or tagout devices to energy isolating devices, all potentially hazardous stored or residual energy shall be relieved, disconnected, restrained, and otherwise rendered safe. (d)(5)(ii) If there is a possibility of reaccumulation of stored energy to a hazardous level, verification of isolation shall be continued until the servicing or maintenance is completed, or until the possibility of such accumulation no longer exists. (d)(6) “Verification of Isolation.” Prior to starting work on machines or equipment that have been locked out or tagged out, the authorized employee shall verify that isolation and de-energization of the machine or equipment have been accomplished. • Detects Single or 3-Phase AC & DC Voltage or Stored Energy • Redundant Circuitry • Verification of Zero Energy in a Panel • Fits 1-1/4" Conduit Knock-Out + _ + _ _ _ 2.00 P 1 11/16 1 1/4 CONDUIT PANEL KNOCKOUT NEMA 4X INDICATOR FLASH RATES (L1, L2, L3, GND) 3- Phase Line-To-Line (VAC) <29 30 120 240 480 600 750 Flashes/Sec (Typical) 0 1.3 4.2 5.8 7.3 8.0 8.8 DC or Stored Energy (VDC) <27 30 48 110 300 600 1000 Flashes/Sec (Typical) 0 1.6 2.5 4.5 6.9 8.8 9.1 \\\OPERATION \\\DIMENSIONS (INCHES) \\\SPECIFICATIONS OPERATIONAL RANGE AC Single or 3-Phase 40 to 750 VAC, 50/60/400 Hz, (LINE-TO-LINE or LINE-TO-GND) DC or Stored Energy 30 to 1000 VDC, (LINE-TO-LINE or LINE-TO-GND) MAXIMUM RATED VOLTAGE 750 VAC/1000 VDC (LINE-TO-LINE or LINE-TO-GND) DETECTION THRESHOLDS 29 VAC 3-Phase, 40 VAC SINGLE-Phase, 27 VDC (TYP Cutoff) POWER CONSUMPTION 1.2 Watts @ 750 VAC (Approximately) TEMPERATURE RATING Operate -4° to 131°F (-20° to +55°C) Storage -40° to 185°F (-40° to +85°C) ENCLOSURE NEMA 4X 105°C PVC, Totally Encapsulated for Environment Protection TERMINATIONS (4) 8ft, 18 AWG 1000V, UL-1452 WEIGHT 9 oz. GND DETECTOR THRESHOLDS (LEAKAGE ANY PHASE-TO-GROUND) 3- Phase Line-To-Line (VAC) 30 120 240 480 750 L1, L2, or L3 To Ground Continuity (OHMS) 2M 2M 3M 5M 7M Detector Included Fault Current (µA) 7 26 38 60 67 DETECTOR INCLUDED FAULT CURRENT (PHASE-TO-GROUND SHORT) 3- Phase Line-To-Line (VAC) 30 120 240 480 750 0 OHM Phase-To-Ground Current (µA) 28 108 219 455 730 PANEL MOUNT 1 \\\ORDERING INFORMATION MODEL NUMBER DESCRIPTION UPA-100 Universal Power Alert
