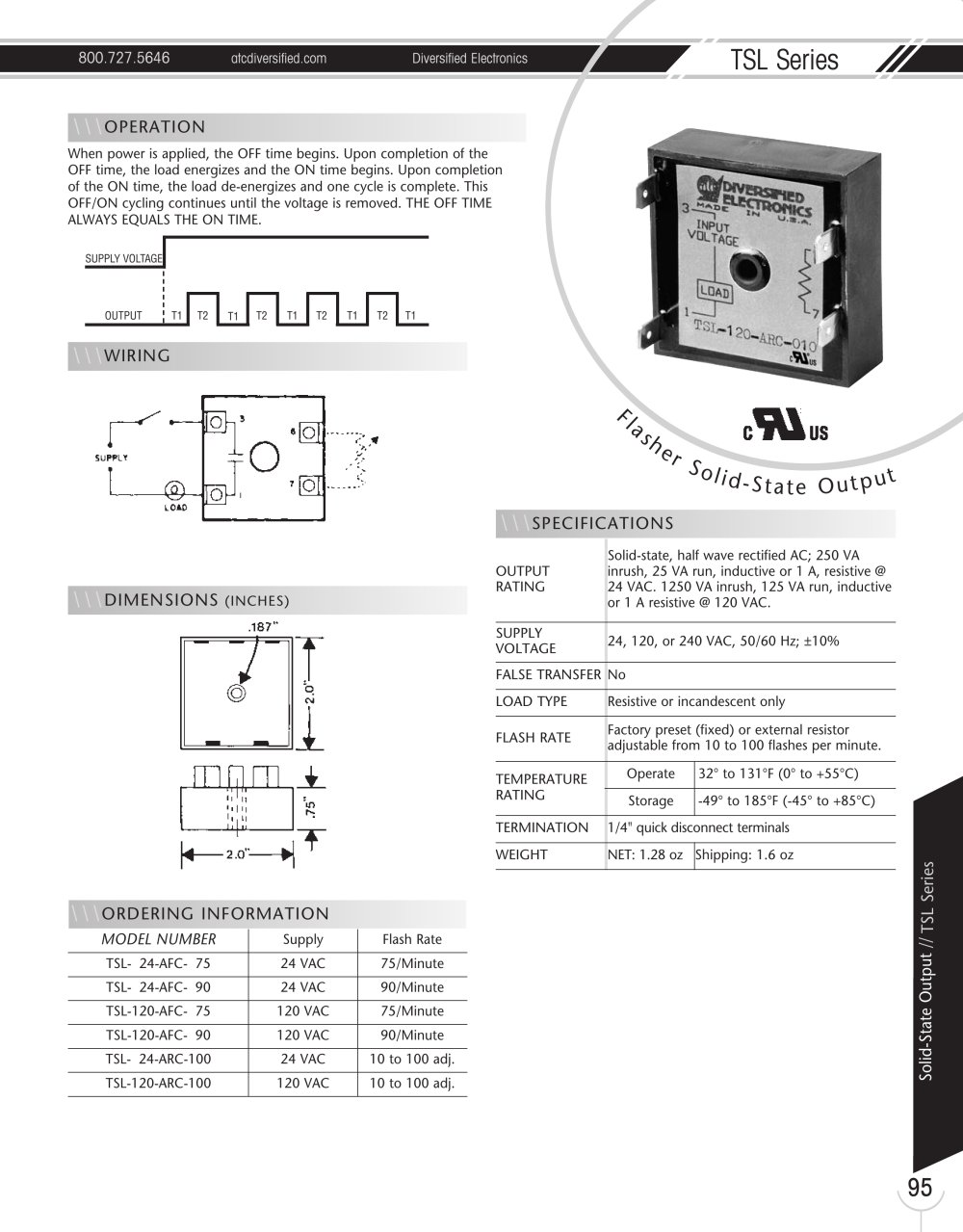

800.727.5646 atcdiversified.com Diversified Electronics TSL Series Solid-State Output // TSL Series 95 F l a she r So l i d - S ta t e Ou t p ut When power is applied, the OFF time begins. Upon completion of the OFF time, the load energizes and the ON time begins. Upon completion of the ON time, the load de-energizes and one cycle is complete. This OFF/ON cycling continues until the voltage is removed. THE OFF TIME ALWAYS EQUALS THE ON TIME. SUPPLY VOLTAGE OUTPUT T1 T2 T1 T2 T1 T2 T1 T2 T1 \\\ORDERING INFORMATION MODEL NUMBER Supply Flash Rate TSL- 24-AFC- 75 24 VAC 75/Minute TSL- 24-AFC- 90 24 VAC 90/Minute TSL-120-AFC- 75 120 VAC 75/Minute TSL-120-AFC- 90 120 VAC 90/Minute TSL- 24-ARC-100 24 VAC 10 to 100 adj. TSL-120-ARC-100 120 VAC 10 to 100 adj. \\\WIRING \\\DIMENSIONS (INCHES) \\\SPECIFICATIONS OUTPUT RATING Solid-state, half wave rectified AC; 250 VA inrush, 25 VA run, inductive or 1 A, resistive @ 24 VAC. 1250 VA inrush, 125 VA run, inductive or 1 A resistive @ 120 VAC. SUPPLY VOLTAGE 24, 120, or 240 VAC, 50/60 Hz; ±10% FALSE TRANSFER No LOAD TYPE Resistive or incandescent only FLASH RATE Factory preset (fixed) or external resistor adjustable from 10 to 100 flashes per minute. TEMPERATURE RATING Operate 32° to 131°F (0° to +55°C) Storage -49° to 185°F (-45° to +85°C) TERMINATION 1/4" quick disconnect terminals WEIGHT NET: 1.28 oz Shipping: 1.6 oz \\\OPERATION
